Aries 2081101 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
This is the third of three manuals
required to complete this installation.
The first manual is included with
your center section. The second manual
is included with your bumper corners.
Parts List
1 Angular brush guard
6 Buttonhead cap screw, M6
12 Flat washer, M6
6 Nylock nut, M6
4 Hex bolt, M10
8 Flat washer, M10
4 Lock washer, M10
4 Nut, M10
1 Cover plate
Tools Required
Ratchet Phillips screwdriver
Socket extension Flathead screwdriver
Socket set Allen wrench set
Level Box wrench set
Torque Specifications
M6 bolt 7 ft-lbs.
M8 bolt 16 ft-lbs.
M10 bolt 33 ft-lbs.
M12 bolt 58 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

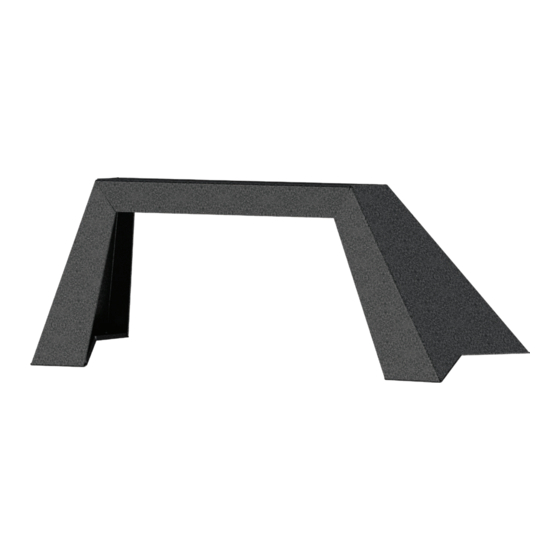

Product Photo
Applicable to the Following Part Numbers
2081101
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Product Registration
CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
• NEED ASSISTANCE? • 877.287.8634 • RA • PAGE 1
ANGULAR
BRUSH GUARD
2081100
