INSTALLATION MANUAL
Level of Difficulty
Easy
This is the second of two manuals
required to complete this installation. The
first manual is included with your center
section. If installing a brush guard, there
will be a third manual required.
Parts List
1
Driver / left corner
1
Passenger / right corner
8
Socket cap screw, M6
8
Flat washer, M6
8
Nylock nut, M6
6
Hex bolt, M10
12
Flat washer, M10
6
Lock washer, M10
6
Nut, M10
2
LED work light (#1501250)
1
Rubber gasket
Tools Required
Ratchet
Phillips screwdriver
Socket extension
Flathead screwdriver
Socket set
Allen wrench set
Level
Box wrench set
Torque Specifications
M6 bolt
7 ft-lbs.
M8 bolt
16 ft-lbs.
M10 bolt
33 ft-lbs.
M12 bolt
58 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

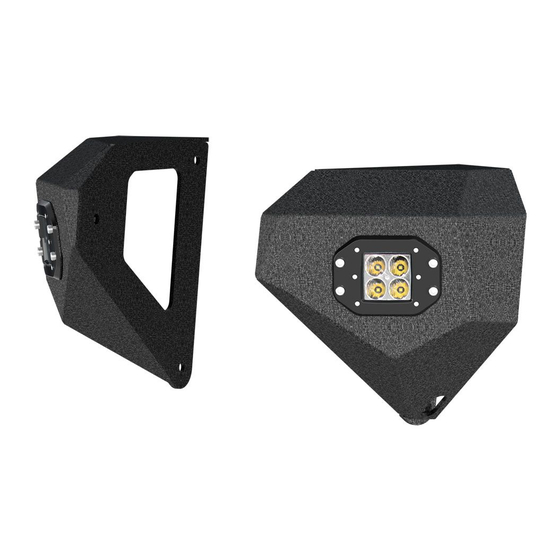

Product Photo
Applicable to the Following Part Numbers
2081205
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Product Registration
CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
•
NEED ASSISTANCE?
•
877.287.8634
•
RA
•
PAGE 1
CORNER
WITH LEDS
2081200
Advertisement
Table of Contents
Related Manuals for Aries 2081205
Summary of Contents for Aries 2081205
- Page 1 Parts List Driver / left corner Passenger / right corner Applicable to the Following Part Numbers Socket cap screw, M6 2081205 2081200 Flat washer, M6 Nylock nut, M6 Notes and Maintenance Hex bolt, M10 Flat washer, M10 Before you begin installation, read all instructions thoroughly.
- Page 2 Step 1 Set the corners onto a flat work surface. Insert the rubber gasket and LED light into place as shown. Secure the four LED light attachment points with an M6 socket cap screw, flat washer and nylock nut at each point. Tighten all hardware and repeat for the second corner and light.
