4000 Series
Art. 4333/4333X
Speaker unit module with built-in functional to digital interface
A
B
C
D

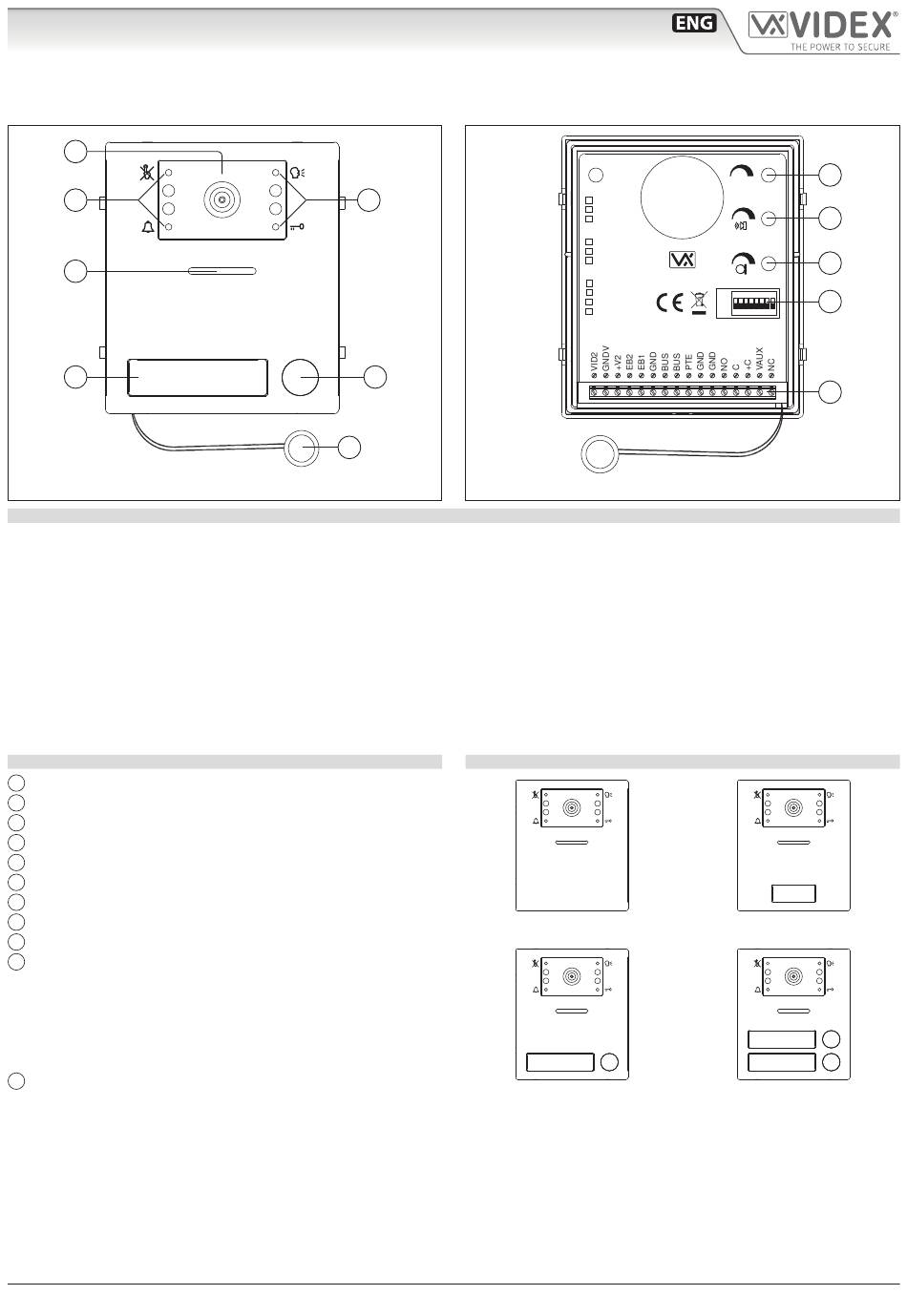

Fig. 1
DESCRIPTION

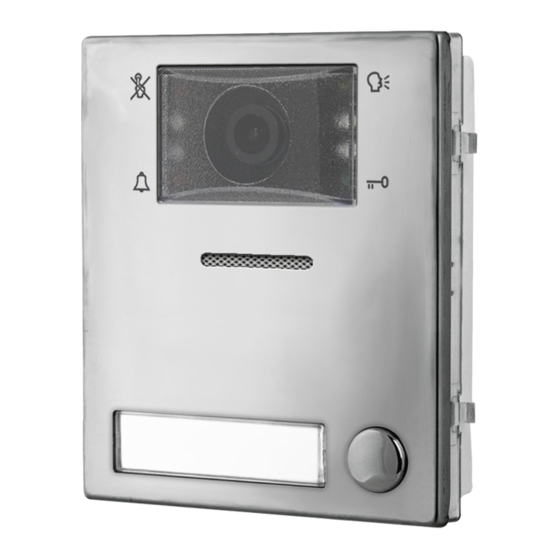

Speaker unit module with built-in colour camera with autoiris lens and white light illumination LEDs. Depending on the speaker
unit version it includes one or two call push buttons. The unit circuitry incorporates:
• An embedded proximity key reader (Art. 4333X only);
• The transmitting amplifier with microphone and volume control;
• The receiving amplifier with volume control;
• The audio balance circuit with "BALANCE" control;
• The enslavement relay to enable the electric lock (3 contacts: common, normally open and normally closed). It can work also as
capacitor discharge to supply directly the electric lock;
• The call buttons from 1 to a maximum of 2 depending on the module version;
• The illumination LEDs for the card name holder;
• The camera comprised of illumination LEDs.
MODULE DETAILS:
Camera with illumination LEDs;
A
Operation LEDs;
B
Loudspeaker;
C
Card name holder with built-in proximity reader;
D
Call push button (0, 1 or 2 depending on the model);
E
Microphone;
F
Balance Control;
G
Loudspeaker volume control;
H
Microphone volume control;
I
Dip-switch to carry out the following programming:
J
• Door station ID (switches from 1 to 3);
• Door opening time (switch 4 and 5);
• Conversation time (switch 6);
• Address order (switch 7);
• Main camera selection (switch 8);
System connection terminals.
K
Art. 4333/4333X - Installation instructions
B
E
F
Fig. 2
AVAILABLE MODULE VERSIONS
- 1 -
4333-0
4333-1
4333-2
4333X-0
4333X-1
4333X-2
Made in Italy
STEEL
ALI
HIGH BRASS
MATTE
Art. 4333-0
Art. 4333-1
Art. 4333X-1
Rev.0.1
G
Balance
H
I
ON
J
1 2 3 4 5 6 7 8
K
Art. 4333X-0
Art. 4333-2
Art. 4333X-2
66251095 - V4.0 - 15/02/19
