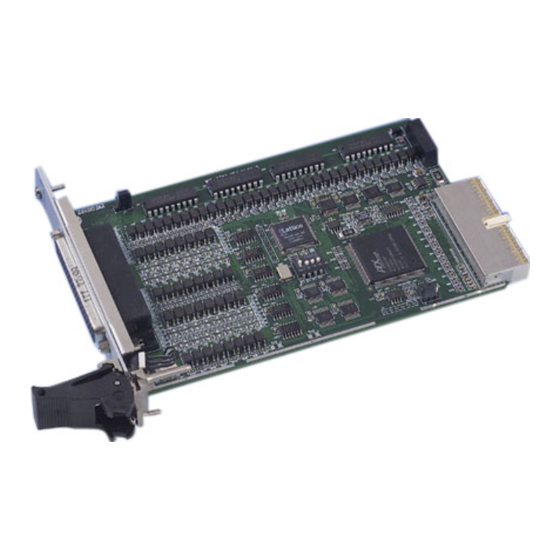

- Page 1 User Manual MIC-3756 3U 64-ch Isolated Digital I/O CPCI Card...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 4 Don't touch any components on the CPU card or other cards while the PC is on. Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive elec- tronic components. MIC-3756 User Manual...
-
Page 5: Table Of Contents
Chapter Installation..........9 Unpacking ....................10 Driver Installation ..................11 Figure 2.1 Setup Screen of Advantech Automation Software ... 11 Figure 2.2 DAQNavi Installation Setup Screen......12 Hardware Installation ................13 Device Setup & Configuration ..............14 Figure 2.3 The Device Setting of MIC-3756 ......14 Figure 2.4 The Digital I/O Setting Page ........ - Page 6 Isolated Digital Input ................26 Isolated Digital Output................26 Counter ....................26 General ....................27 Register Table..................27 Table A.1: Register Functions ........... 27 Appendix B Block Diagrams......... 29 Block Diagrams..................30 MIC-3756 User Manual...
- Page 7 Chapter Introduction This chapter introduces the MIC- 3756 cards and their typical appli- cations. Sections include: Features Applications Installation Guide Software Overview Device Driver Roadmap Accessories...
-
Page 8: Chapter 1 Introduction
2,500 V , preventing your host system from any incidental harms. Wide Input Range The MIC-3756 has a wide range of input voltage from 10 to 50 V , and it is suitable for most industrial applications with 12 V and 24 V input voltage. -
Page 9: Applications
Board ID Setting The MIC-3756 has a built-in DIP switch that helps define each card’s ID when multi- ple cards have been installed on the same PC chassis. The board ID setting function is very useful when users build their system with multiple MIC-3756 cards. With cor- rect Board ID settings, you can easily identify and access each card during hardware configuration and software programming. -
Page 10: Installation Guide
Installation Guide Before you install your MIC-3756 card, please make sure you have the following nec- essary components: MIC-3756 DAQ Card Driver Software Advantech DAQNavi software (included in DVDROM) Wiring Cable PCL-10178-1E (optional) Wiring Board ADAM-3978-AE (optional) Other optional components are also available for enhanced operation: ... -
Page 11: Software Overview
Software Overview Advantech offers a rich set of DLL drivers, third-party driver support and application software to help fully exploit the functions of your MIC-3756 card: DAQNavi software (on the companion DVD-ROM) LabView driver Advantech DAQ tools Programming choices for DA&C cards... -
Page 12: Daqnavi Device Driver Programming Roadmap
1.6.2 Programming with DAQNavi Device Drivers Function Library Advantech DAQNavi device drivers offer a rich function library that can be utilized in various application programs. This function library consists of numerous APIs that support many development tools, such as Visual Studio .Net, Visual C++, Visual Basic, LabVIEW and Borland Delphi. -
Page 13: Accessories
Error Con- trol of each function in the DAQNavi SDK Manual. Accessories Advantech offers a complete set of accessory products to support the MIC-3756 card. These accessories include: Wiring Cables ... - Page 14 MIC-3756 User Manual...
-
Page 15: Chapter 2 Installation
Chapter Installation This chapter provides a packaged item checklist, proper instructions for unpacking and step-by-step procedures for both driver and card installation. Sections include: Unpacking Driver Installation Hardware Installation Device Setup & Configuration... -
Page 16: Unpacking
Unpacking After receiving your MIC-3756 package, please inspect its contents first. The pack- age should contain the following items: MIC-3756 DAQ Card Companion DVD-ROM with DAQNavi drivers included. The MIC-3756 card harbor certain electronic components vulnerable to electrostatic discharge (ESD). -
Page 17: Driver Installation
Driver Installation We recommend you install the driver before you install the MIC-3756 card into your system, since this will guarantee a smooth installation process. The Advantech DAQNavi Device Drivers Setup program for the MIC-3756 card is included in the companion DVD-ROM that is shipped with your DA&C card package. - Page 18 Figure 2.2 DAQNavi Installation Setup Screen For further information on driver-related issues, an online version of the DAQNavi SDK Manual is available by accessing the following path: \Advantech\DAQNavi\Manuals MIC-3756 User Manual...
-
Page 19: Hardware Installation
When installing the MIC-3756 Card, Please make sure the DLL driver of MIC-3756 installation is completed, you can now go on to install the MIC-3756 card in your CompactPCI system. If you have any doubt, please consult the user’s manual or related documentation. -
Page 20: Device Setup & Configuration
APIs of DAQNavi device drivers. It also provides the programming reference, user guides and video tutorials. Setting Up the Device To install the I/O device for your card, you must first run the Advantech Naviga- tor program (by accessing Start/Programs/ Advantech Automation/DAQNavi/ Advantech Navigator). - Page 21 Please go to the Digital Input/Output page to configure your device. Here you can set the DI interrupt trigger edge, enable/disable the Channel-Freeze func- tion and also the DO ports initial status of MIC-3756. Figure 2.4 The Digital I/O Setting Page...
- Page 22 After your card is properly installed and configured, you can go to the Device Test page to test your hardware by using the testing utility supplied. Figure 2.5 The Device Testing of MIC-3756 For more detailed information, please refer to the DAQNavi SDK Manual or the User Interface Manual in the Advantech Navigator.
-
Page 23: Chapter 3 Signal Connections
Chapter Signal Connections This chapter provides useful information about how to connect input and output signals to the MIC-3756 cards via the I/O con- nector. Sections include: Overview Switch and Jumper Settings Signal Connections Field Wiring Considerations... -
Page 24: Overview
This chapter provides useful information about how to connect input and output signals to the MIC-3756 cards via the I/O connector. Switch and Jumper Settings Please refer to Figure 3.1 for jumper and switch locations on MIC-3756. Figure 3.1 Connector and Switch Locations MIC-3756 User Manual... -
Page 25: Board Id (Sw1)
3.2.1 Board ID (SW1) The MIC-3756 have a built-in DIP switch (SW1), which is used to define each card’s board ID. When there are multiple cards on the same chassis, this board ID switch is useful for identifying each card’s device number. After setting for each MIC-3756, you can identify each card in system with different device numbers. -
Page 26: Power On Configuration(Jp3)
3.2.3 Channel-Freeze Function (JP2) The MIC-3756 provides the channel-freeze function for isolated digital output chan- nels. When Channel-Freeze function is enabled, all ports on the card will be locked so that the data transmitted (from the host PC) to the card won’t be transferred to the DO ports. -
Page 27: Signal Connections
Pin Assignment The I/O connector on the MIC-3756 is a 78-pin DB female connector. Fig. 3.2 shows the pin assignments for the 78-pin DB connector on the MIC-3756, and Table 3.4 shows its connector signal description Figure 3.2 I/O Connector Pin Assignments... -
Page 28: I/O Connector Pin Definition
Meaning that you can apply positive or negative voltage to an isolated input pin (V ). Every 16 input channels share one common pin. Figure 3.3 shows how to connect an external input source to one of the card’s isolated input channels. Figure 3.3 Isolated Digital Input Connection MIC-3756 User Manual... -
Page 29: Isolated Digital Output
Figure 3.4 Isolated Digital Output Connection 3.3.4 Channel-Freeze Function The MIC-3756 provides a digital input channel (CH_FRZ_IN) to enable the channel- freeze function. The channel-freeze function acts when the pin CH_FRZ_IN is acti- vated. Moreover, you can setup the input mode of channel-freeze function input channel CH_FRZ_IN as dry contact input mode or wet contact input mode selected by on-board jumper JP2. -
Page 30: Field Wiring Considerations
Figure 3.6 Wiring in dry contact input mode Field Wiring Considerations When you use MIC-3756 cards to acquire data from outside, noises in the environ- ment might significantly affect the accuracy of your measurements if due cautions are not taken. The following measures will be helpful to reduce possible interference run- ning signal wires between signal sources and the MIC-3756 card. -
Page 31: Appendix A Specifications
Appendix Specifications... -
Page 32: Isolated Digital Input
Supply Voltage Sink Current 200 mA max/channel Counter Channels 1 (independent) Resolution 16-bit Programmable Clock Source On board 1MHz clock source or External DI00 input Stop counter DI16 as GATE high Gate DI16 as GATE low No Gating MIC-3756 User Manual... -
Page 33: General
Relative Humidity 5 ~ 95% RH non-condensing (refer to IEC 60068-2-3) Certification CE Class A certified Register Table Register Format of MIC-3756. Table A.1: Register Functions Base Addr. Digital Input Group 0 DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8 DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0... - Page 34 CR15 CR14 CR13 CR12 CR11 CR10 CR9 CR8 CR7 CR6 CR5 CR4 CR3 CR2 CR1 CR0 INT State of Counter Clear INT of Counter Set Value Register SE15 SE14 SE13 SE12 SE11 SE10 SE9 SE8 SE7 SE6 SE5 SE4 SE3 SE2 SE1 SE0 MIC-3756 User Manual...
-
Page 35: Appendix B Block Diagrams
Appendix Block Diagrams... -
Page 36: Block Diagrams
Block Diagrams MIC-3756 User Manual... - Page 37 MIC-3756 User Manual...
- Page 38 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
