MOS-1110Y-0101E Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe I/F
User Manual

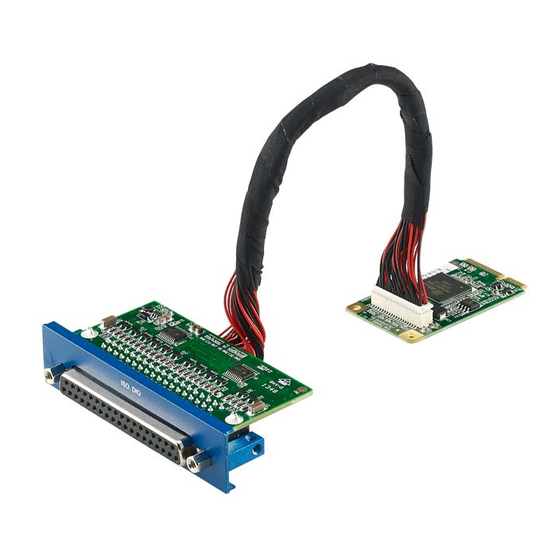

The MOS-1110Y-0101E is a 16-channel isolated digital input and 8-channel isolated digital output card for the PCI Express
bus.
The MOS-1110Y-0101E's isolated digital input channels are ideal for digital input in noisy environments or with floating
potentials.Each isolated digital input supports both dry contact and wet contact, designated by jumper settings, so that it
can easily interface with other devices. Moreover, MOS-1110Y-0101E also offers counter input channels.
This manual gives you inspection and installation of hardware and drivers.
1. Packing List
MOS-1110Y-0101E
MOS-1110Y miniPCIe card
I/O Plate card
Wire cable
Startup Manual x 1
Note: If any of these items are missing or damaged, please contact your distributor or sales representative immediately.
2. Initial Inspection
You should find the following items inside the shipping package:
MOS-1110Y miniPCIe card
I/O Plate card
Wire cable
Startup Manual x 1
The MOS-1110Y-0101E card harbors certain electronic components vulnerable to electrostatic discharge (ESD). ESD could
easily damage the integrated circuits and certain components if preventive measures are not carefully paid attention to.
Before removing the card from the antistatic plastic bag, you should take following precautions to ward off possible ESD
damage:
Touch the metal part of your computer chassis with your hand to discharge static electricity accumulated on your
body. Or one can also use a grounding strap.
Touch the anti-static bag to a metal part of your computer chassis before opening the bag.
Take hold of the card only by the metal bracket when removing it out of the bag.
After taking out the card, first you should:
Inspect the card for any possible signs of external damage (loose or damaged components, etc.). If the card is visibly
damaged, please notify our service department or our local sales representative immediately. Avoid installing a damaged
card into your system.
MOS-1110Y-0101E User Manual 1

Advertisement

loading

Related Manuals for Advantech MOS-1110Y-0101E

Summary of Contents for Advantech MOS-1110Y-0101E

  • Page 1 MOS-1110Y-0101E Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe I/F User Manual The MOS-1110Y-0101E is a 16-channel isolated digital input and 8-channel isolated digital output card for the PCI Express bus. The MOS-1110Y-0101E's isolated digital input channels are ideal for digital input in noisy environments or with floating potentials.Each isolated digital input supports both dry contact and wet contact, designated by jumper settings, so that it...

  • Page 2: Installation And Setup

    Keep the anti-static bag for future use. You might need the original bag to store the card if you have to remove the card from PC or transport it elsewhere. Advantech provides WDM CAN driver that allows you to configure your hardware and store the settings in your Windows 3. Installation & Setup registry.
  • Page 3 3.2 Hardware Installation After the device driver installation is completed, you can now go on to install the MOS-1110Y-0101E card in any mini-PCIe slot on your computer. Follow the steps below to install the card on your system. Turn off your computer and unplug the power cord and cables. TURN OFF your computer before installing or removing any components on the computer.

  • Page 4: Signal Connections

    4. Signal Connections 4.1 Switch and Jumper Settings Figure 4.1: Card Connector, Jumper and Switches And following table shows jumper setting and board ID setting of MOS-1110Y-0101E. Table 4.1: Summary of Jumper Settings Table 4.2: Board ID setting (SW1) MOS-1110Y-0101E User Manual 4...
  • Page 5 The following tables and figures show the pin assignments of CN1 connector on the bracket to the modular card. If you see two ports or above, it will use the same pin definition of this one. Table 4.3: MOS-1110Y-0101E Pin Definition on iDoor Bracket Isolated Digital Input Each of the 16 isolated digital input channels accept voltages from 0 to 30 V.
  • Page 6 Figure 4.3 Isolated Digital Output Connection 5. Appendix 5.1 Specifications Isolated Digital Input Counter Isolated Digital Output General MOS-1110Y-0101E User Manual 6...
  • Page 7 5.2 Block Diagram Figure 5.1: MOS-1110Y Block Diagram MOS-1110Y-0101E User Manual 7...
