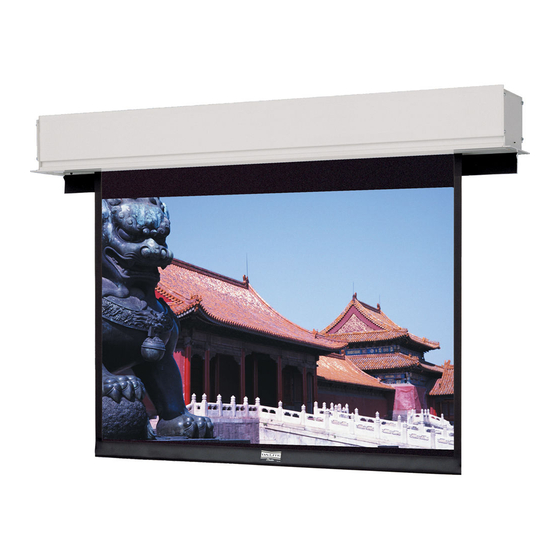

Da-Lite ADVANTAGE DELUXE ELECTROL Specification

S
UGGESTED SPECIFICATIONS:
Screen shall have two motors, one to operate door and one to operate screen. Door motor electrically operated 120 volt (60 Hz) not more
than 1.2 amp, mounted inside the roller, to be three wire with ground, quick reversal type, oiled for life, with automatic thermal overload
cutout, integral gears, capacitor and an electric brake to prevent coasting. To have pre-set but adjustable limit switches to automatically
stop fabric door in the "down" position. The door will lift to the closed position where a micro switch shall cut off the electrical current to
the door motor. Screen motor is electrically operated 120 volt (60 Hz) not more than 2.4 amp, mounted inside the roller, to be three wire
with ground quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor and an electric brake to
prevent coasting. To have pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions.
The roller to be of rigid metal. Screen fabric to be flame retardant and mildew resistant fiberglass with black masking borders standard.
Bottom of fabric shall be formed into a pocket holding a metal rod with plastic caps. Case shall be a white powder coated aluminum
extrusion. Bottom of case to be self-trimming with a built-in flange around the bottom of the case. A section of the bottom of the case
shall be an aluminum door equipped with concealed hinges so that it opens and closes automatically with the lowering and raising of the
picture surface. The balance of the bottom of the case shall be a second hinged aluminum door with manual opening to provide access.
Junction box shall be internally integrated into the housing making it possible to install the housing and wire to the building's electrical
system during construction. The junction box shall contain a quick connect connector that is mounted in the housing for easy plug-in
connection to the motorized fabric and roller assembly. The motorized fabric and roller assembly to be installed in the case at the factory
or at a later time at the job site. To be complete with integrated low voltage control unit and three position control switch with cover
plate. Suitable for use in environmental air space in accordance with section 300-22 (c) of the National Electric Code, and sections 2-128,
12-010 (3) and 12-100 of the Canadian Electrical Code, part 1, CSA C22.1. Screen to be listed by Underwriters' Laboratories.
Matte White: Horizontal seam required when both dimensions exceed 10'.
High Contrast Matte White: Available in sizes where both dimensions do not exceed 10'.
Video Spectra 1.5: Available in sizes up to 8' in height.
Silver Lite 2.5: Available in sizes up to 8' in height and width.
High Power : Horizontal seam required when both dimensions exceed 8'.
®
WHEN ORDERING, MARK APPROPRIATE SELECTIONS:
Select size from charts on the other side.
Select viewing surface:
o Matte White o High Contrast Matte White
o Video Spectra 1.5 o High Power
o Silver Lite 2.5
GreenGuard and GreenGuard
®
Optional Accessories:
o Extra Drop available to lower picture area
more than normal. Specify total drop at
top _____ (black or white) or at bottom
(black or white)
_____ (black or white). 13' maximum
(black or white)
total surface height including picture
area.
o No borders (Black masking borders
standard).
o Wireless Remote Control for LVC.
o Radio Frequency Remote
o Radio Frequency Range Extender
o Infrared Remote
o Key Locking Cover Plate for 120V Switch
or LVC.
o 220/240 Volt (50 Hz) Motor.
o Video Projector Interface Control - built-in
SCB-100 RS-232 Serial Control Board -
o
built-in
NET-100 Ethernet-Serial Adapter
o
o SCB-200 RS-232 Serial Control Board -
built-in
o NET-200 Ethernet-Serial Adapter
o WC-200 Wall Controller
o IR-200 Infrared Remote
ADVANTAGE
ELECTROL
®
Automatic Electric Projection Screen Model
SPECIFICATION DATA
projection screen(s),
®
Children and Schools Certified.
®
SUGGESTED CEILING
INSTALLATION
7 / "
1
4
DELUXE
®
(H) x
Project:
Architect:
Phone:
Contractor:
Phone:
Supervisor:
Phone:
Supplier:
Date:
Revised:
VARIABLE POSITION
MOUNTING BRACKETS
MOTOR END
ELECTRICAL
JUNCTION BOX
9 / "
1
4
6 /
1
(SUGGESTED)
THREADED ROD
(NOT INCLUDED)
ATTACHED TO
MOUNTING
BRACKET
FINISHED
CEILING
SELF-TRIMMING
FLANGE
SELF-TRIMMING
8 / "
3
4
Da-Lite
A Milestone AV Technologies Brand
3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: info@da-lite.com
www.da-lite.com
(W). The Advantage
CASE LENGTH
"
8
/ "
3
8
DOOR
ROLLER
FLANGE
SCREEN
3 / "
3 5
8
DOOR
Deluxe
®
7 / "
1
4
7 / "
1
4
6 / "
1
8
SCREEN
ROLLER
AUDIENCE
SIDE
ACCESS
DOOR
/ "
3
8
