Horizontal Ducting Conversion - Zephyr Tidal I AK7300AS Use, Care And Installation Manual

Installation Instructions

Horizontal Ducting Conversion

By default the Tidal I is pre-configured for 8" round vertical ducting. These steps are for 8" round and
3-1/4"x10" rectangular horizontal ducting. If you are continuing with vertical ducting, please skip
these steps.
NOTE: Horizontal ducting is only available for the single internal blower.
14

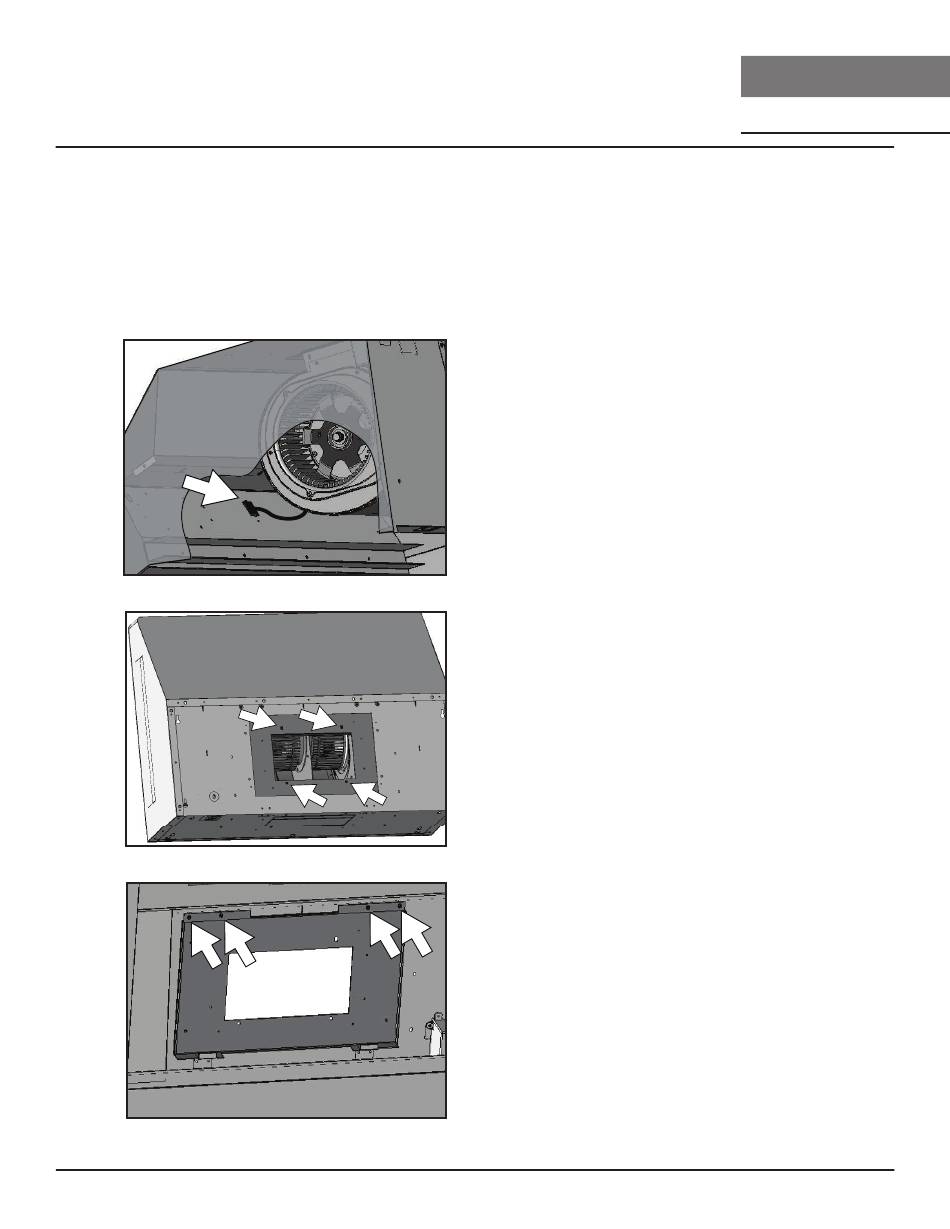

1. Disconnect blower plug.
2. Remove (4) screws at top of
hood body attaching blower to
blower plate. Remove blower from
interior of hood body.
3. Remove (4) screws from interior
of hood body attaching blower
plate to hood body. Remove
blower plate.
