Horizontal Ducting Conversion - Zephyr Tidal II AK7400AS Use, Care And Installation Manual

Installation Instructions

Horizontal Ducting Conversion

By default the Tidal II is pre-configured for 8" round vertical ducting. These steps are for 8" round
and 3-1/4"x10" rectangular horizontal ducting. If you are continuing with vertical ducting, please skip
these steps.
14

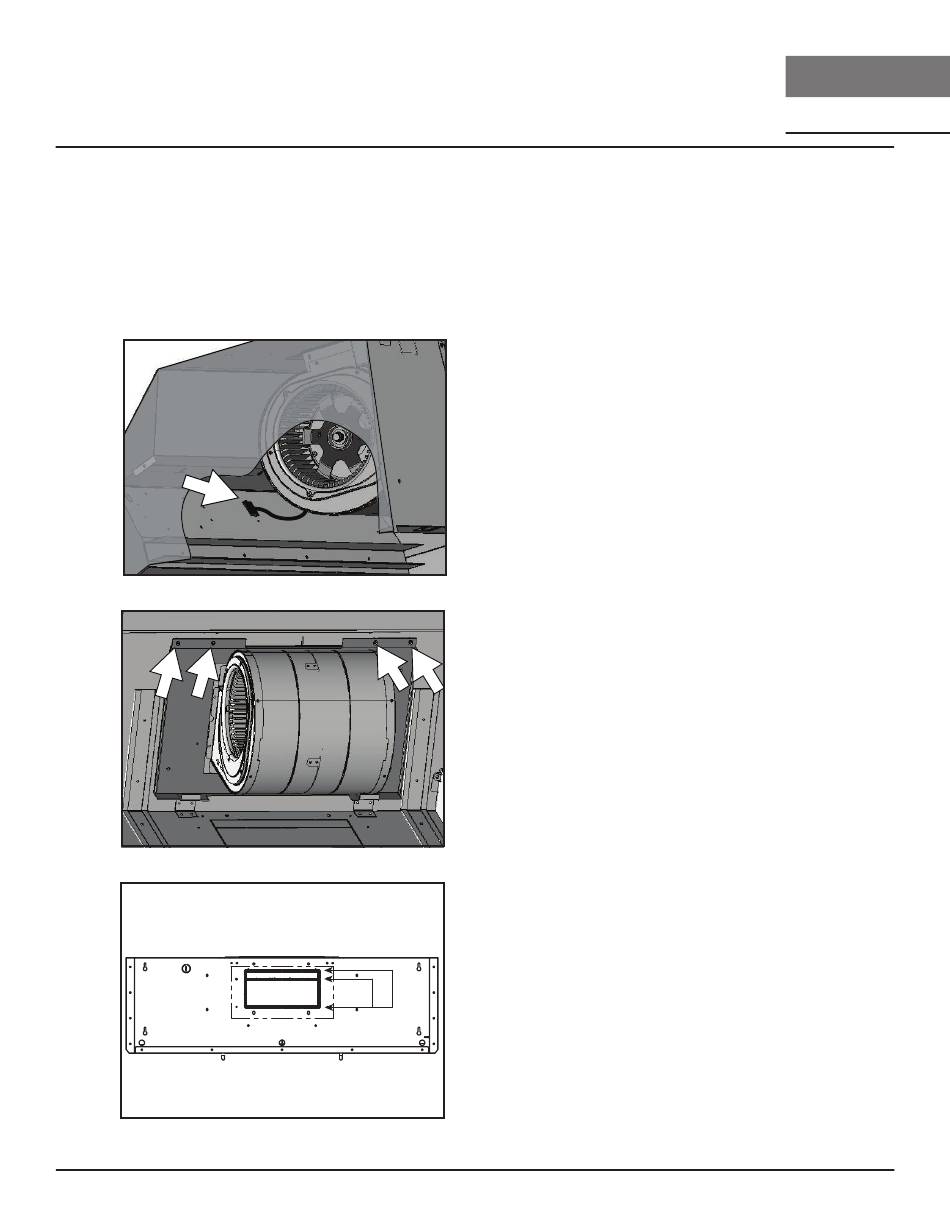

1. Disconnect blower plug.
2. Remove (4) screws from interior
of hood body attaching single
blower plate to top of hood body.
Remove single blower and single
blower plate.
3. Using a flat-head screwdriver,
remove the smaller rectangular
knock-out plate (A) for 3-1/4" x
A B
10" rectangular ducting or the
larger knock-out plate (B) for 8"
round ducting located on the
back of hood.
