Holzhof MAX XM 202 RA Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MAX XM 202 RA line
assembly
instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAX XM 202 RA and is the answer not in the manual?

Questions and answers

Related Manuals for Holzhof MAX XM 202 RA

Summary of Contents for Holzhof MAX XM 202 RA

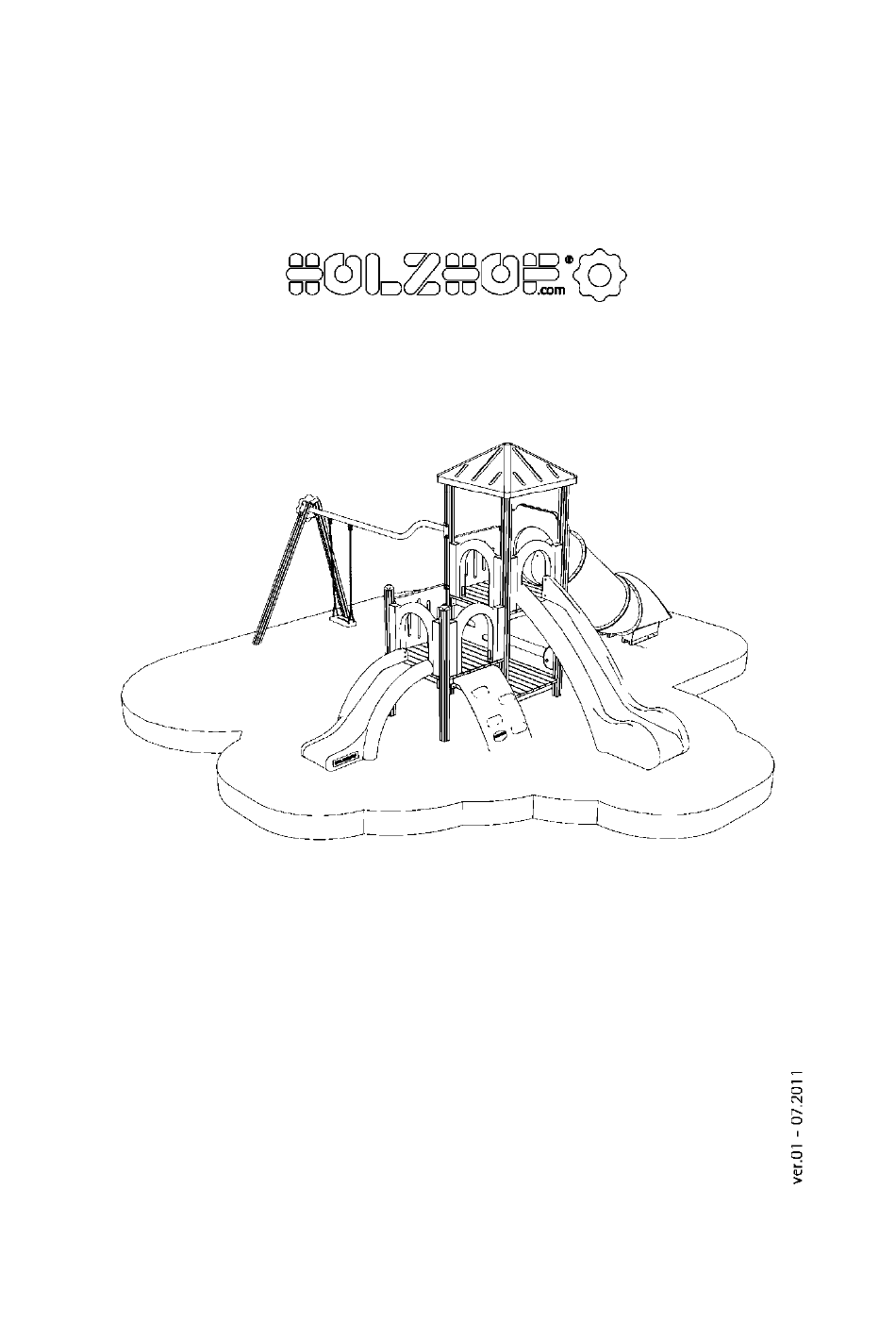

  • Page 1 MAX XM 202 RA line assembly instructions...

  • Page 2: Assembly Sequence

    ASSEMBLY SEQUENCE: 1. STRUTS AND PLATFORMS 5. TUBE SLIDE 9. SWING 2. ARCHWAYS 6. PARAPET 10. ROOF 3. CLIMBING BOARD 7. STEPS PANEL 11. UNDERGROUND LAYING/ANCHORAGE 4. CURVED SLIDE 8. BENCH OF THE STRUCTURE...
  • Page 3 NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps Article fixing CODE N. NAME once the correct positioning of the elements num. has been verified. xpe11 Shaped PE nut protection cap xpe10 PE nut protection cap xpe116 PE cap ISO7089 Ø8 washer...
  • Page 4 NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct positioning of the elements has been verified. 1. Position the archway between the struts and fix it by inserting: 1 x M8 washer (3), 1 x M8x260 TORX screw (2), 1 x Ø...
  • Page 5 NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct positioning of the elements has been verified. 1. Insert the (5) M8x70 threaded bars into the bushes present on the (6) climbing board. 2.
  • Page 6 1. After having fixed the PE archway (2], place the body of the Article Default/ NAME (3) curved slide on the platform of the tower (1) and insert num. Quantity the bolts necessary for fixing into the holes present on the Aladin tower slide (3).
  • Page 7 1) PE cap (6x) Position the curved slide (5) assembled to the tower, 2) PE nut protection cap (6x) keeping the entry to the tube in correspondence with the height of the platform, 3) M8 washer (6x) Fix using the relevant bolts, as indicated in the figure. The following instructions are also valid for the 4) M8x130 (6x) LG* TEL screw tube bridge.
  • Page 8 NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct positioning of the elements has been verified. 1. Position the PE parapet between the struts, resting the two lower fixing wings on the platform and then fix using: 4 x M8 washer (3) 4 x M8x80 TEL screw (2) WOOD...
  • Page 9 NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct positioning of the elements has been verified. 1. Fix the steps panel (1) under the tower platform measuring 144 cm using the bolts indicated in the figure.
  • Page 10 1) PE cap (4x) 2) PE nut protection cap (4x) 3) M8 washer (4x) 4) M8x130 TEL screw (4x) LG* 5) M6 3x60 TEFR screw (4x) AL* 6) Assembled bench NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct positioning of the elements has been verified.
  • Page 11 Proceed with fixing, following the instructions illustrated in the next pages. 2) Fix the beam to the structure strut 4) Fix the flower-shaped 1) Fix the struts to the beam gable board in 3) Fix the swing, which can be the plank, cage or palm type NOTA BENE: it is recommended to fix the...
  • Page 12 Article num. Quantity CODE N. NAME M10X120 HEX SCREW 10X110 CUP SQUARE SCREW XPE116 PE CAP Ø10 WASHER XPE11 SHAPED PE NUT PROTECTION CAP XPE10 PE CAP M10 SELF-LOCKING NUT 1. Attach the struts to the beam using the relevant bolts as indicated in the figure.
  • Page 13 Article num. Quantity NAME assembled swing body UNI4017 M8X25 HEX SCREW UNI7473 M8 self-locking nut 1. Attach the assembled swing body to the beam, introducing the bolts necessary for fixing into the swing hangers, as indicated in the figure. NOTE: colours and models represented are purely indicative. The following instructions can also be applied to swings with iron beams.
  • Page 14 Article Quantity CODE N. NAME num. XPE116 PE CAP M8X80 HEX SCREW OR M6,3X60 SELF-TAPPING SCREW 08 WASHER XPE10 PE NUT PROTECTION CAP XPE174 ROTATIONALLY-MOULDED GABLE BOARD IN PE Wooden struts: Aluminium struts M8x80 TEL SCREW: M6,3x60 SELF-TAPPING SCREW 1. Fix the gable board (5) to the struts using the relevant bolts as indicated in the figure and repeat the operation on the opposite side and for the second gable board.
  • Page 15 Article Default/ CODE N. NAME num. Quantity PE roof xpe10 PE nut protection cap xpe116 PE cap IS07089 Ø8 washer M8x80 TEL screw NOTE: The models represented are purely indicative. These instructions are applicable to Max, Sultan and Aladin roofs. 1.
  • Page 16 Concrete deck rubber safety flooring...
  • Page 17 1. Attach the brackets (1) by introducing the following in sequence: PE nut protection cap (2), M8 washer (3), M8x25 HEX screw(4), PE cap (5) 1. Excavate two holes with diameter of 30 cm and depth of 60 cm NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct positioning of the elements has been verified.
  • Page 18 1. Excavate a hole with diameter of 30 cm and depth of 60 cm 2. Cast a first layer of concrete with thickness of 10 cm.
  • Page 19 3. When the concrete has set, position the slide bracket in the hole, checking the correct alignment of the lower part of the slide with the finished ground level.
  • Page 20 4. Complete concrete casting as per layout. 5. When the concrete has set, fill the excavation hole by compacting the infill material up to the finished ground level.
  • Page 21 1. Excavate two holes with diameter of 30 cm and depth of 60 cm as per layout. 2. Cast a first layer of concrete with thickness of 10 cm.
  • Page 22 The measurements vary on the basis of the entrance to the slide from a minimum of 20 to a maximum of 35 cm.
  • Page 23 3. Complete concrete casting as per layout. 4. When the concrete has set, fill the hole by compacting the infill material up to the finished ground level.
  • Page 24 1. Cast a first layer of concrete with thickness of 5 cm in the previously realised excavation hole (see the next page for dimensions). 5 cm concrete slab 2. Complete concrete casting as per layout. 3. When the concrete has set, fill the hole by compacting the infill material up to the finished ground level.
  • Page 25 Sand Bark mulch, Fine gravel 30 cm BRACKET 100 cm...
  • Page 26 land scarification rubber safety flooring 4.5 cm. — concrete slab 7.5 cm. BRACKET 75 cm.
  • Page 27 1. Drill. 2. Clean the hole thoroughly using an air pump and small brushes. 3. Insert the anchor into the hole present on the bracket with the aid of a hammer. 4. Tighten using dynamometric wrench. rubber safety flooring 4x M10x90 screw anchors...
  • Page 28 1. Position the climbing board on the support surface and Article Quantity CODE N. NAME mark the position of the screw anchors. num. 2. Drill the support surface and position the screw anchors. xpe10 PE nut protection cap 3. Fix the angle brackets to the support surface using the xpe116 PE cap relevant bolts, as indicated in the figure.
  • Page 29 Article num. Quantity CODE N. NAME xfe265 59x59x35 stainless steel angle bracket xpe10 PE nut protection cap xpe116 PE cap M10 self-locking nut M8x115 screw anchor Ø10 washer 1. Position the slide on the support surface, marking the position of the screw anchor. 2.
  • Page 30 Article Quantity NAME num. Tube slide anchorage bracket PE nut protection cap M10 self-locking screw anchor Ø10 washer M10 self-locking nut PE cap 1. Adjust the bracket (1) to the necessary height. 2. Mark the position of the screw anchors on the ground. 3.
  • Page 31 1. Drill. 2. Clean the hole thoroughly using an air pump and small brushes. 3. Insert the anchor into the hole present on the bracket with the aid of a hammer. 4. Tighten using dynamometric wrench. 4 x M10x90 screw anchors...
