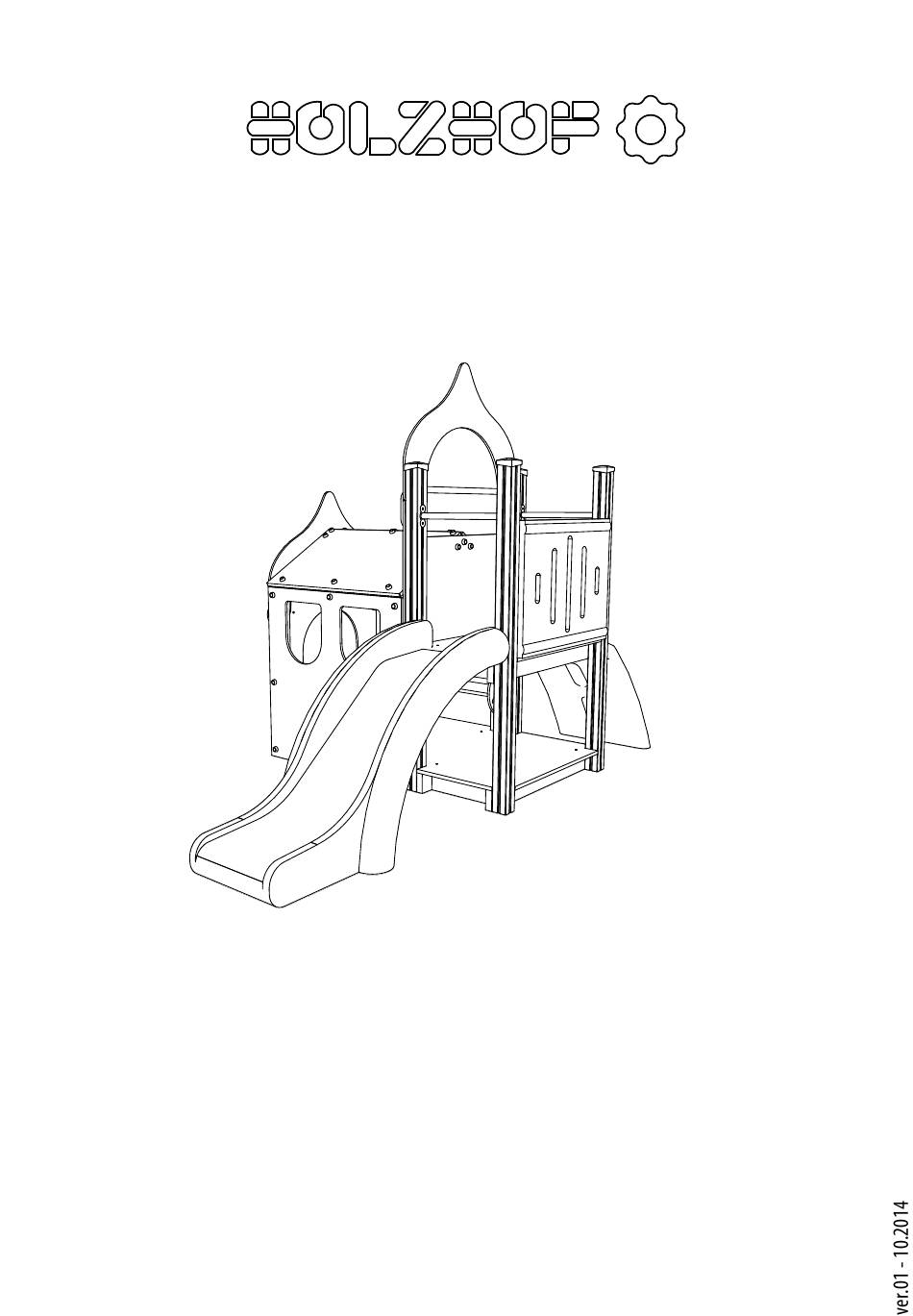

- Page 1 SULTAN / OXI range XS11 / XOXI11 "Casablanca"...
- Page 2 PLEASE NOTE: It is advisable to only secure the nuts and bolts permanently and insert the caps once it has been checked that all the elements have been positioned correctly. Fasten the slide to the tower uprights, inserting 4 TEL M8x80 screws (two per side) for wooden towers or 4 TEFR 6.3x80 screws for aluminum towers into the holes at the beginning of the slide.
- Page 3 PLEASE NOTE: It is advisable to only secure the nuts and bolts permanently and insert the caps once it has been checked that all the elements have been positioned correctly. Secure the climbing board to the tower inserting from the inside of the tower 2x TEL M8x130 for wooden towers or 2x TEFR M6.3x120 for aluminium towers (including nut covers and caps so that the...
- Page 4 Article Quantity CODE NO. NAME IS07089 washer diam. 8 washer diam.10 M10 self-locking nut M10 self-locking plug TEFR 6.3x50 screw 59x59x35 stainless steel angle bar PE nut cover PE cap 1. Position the upright and the angle bar on the support surface and mark the position of the plug.
- Page 5 1. Drill a hole. 2. Thoroughly clean the hole using an air pump and brushes. 3. Insert the anchor in the hole present on the angle bar. 4. Tighten using a torque wrench. PLEASE NOTE: It is advisable to only secure the nuts and bolts permanently and insert the caps once it has been checked that all the elements have been positioned correctly.
- Page 6 Article Quantity CODE NO. 1. Position the climbing board on the support surface, NAME marking the position of the plugs. PE nut cover PE cap 2. Drill the support surface and position the plugs. PE climbing board 3. Secure the angle bars to the support surface using 59x59x35 stainless steel angle bar M10 self-locking nut appropriate nuts and bolts, as shown in the figure.
- Page 7 Article Quantity CODE NO. NAME 59x59x35 stainless steel angle bar PE nut cover PE cap M10 self-locking nut M8x115 plug Washer diam.10 1. Position the slide on the support surface, marking the position of the plug. 2. Drill the support surface and position the plug. 3.
- Page 8 1. Hook the (1) brackets, inserting in sequence: (2) Pe nut cover, (3) M8 washer, (4) M8x25 hex screw, (5) Pe cap 1. Make two holes that are 30 cm in diameter and 60 cm deep. PLEASE NOTE: It is advisable to only secure the nuts and bolts permanently and insert the caps once it has been checked that all the elements have been positioned correctly.
- Page 9 1.Make a hole that is 30 cm in diameter and 60 cm deep 2. Cast a first layer of concrete that is 10 cm thick.
- Page 10 3. Once the concrete has hardened, position the slide brackets in the hole, checking correct alignment of the bottom of the slide with the level of the finished terrain.
- Page 11 4. Finish casting the concrete as shown in the diagram. 5. Once the concrete has hardened, fill the hole, tamping it with the left over material until reaching the height of the finished terrain.
- Page 12 1. Make a 50x50 cm hole that is 60 cm deep. 2. Cast a first layer of concrete that is 10 cm thick.
- Page 13 3. Once the concrete has hardened, centrally position the upright/s, checking correct alignment of the corresponding marks with the level of the finished terrain.
- Page 14 4. Finish casting the concrete as shown in the diagram. 5. Once the concrete has hardened, fill the hole, tamping it with the left over material until reaching the height of the finished terrain.
