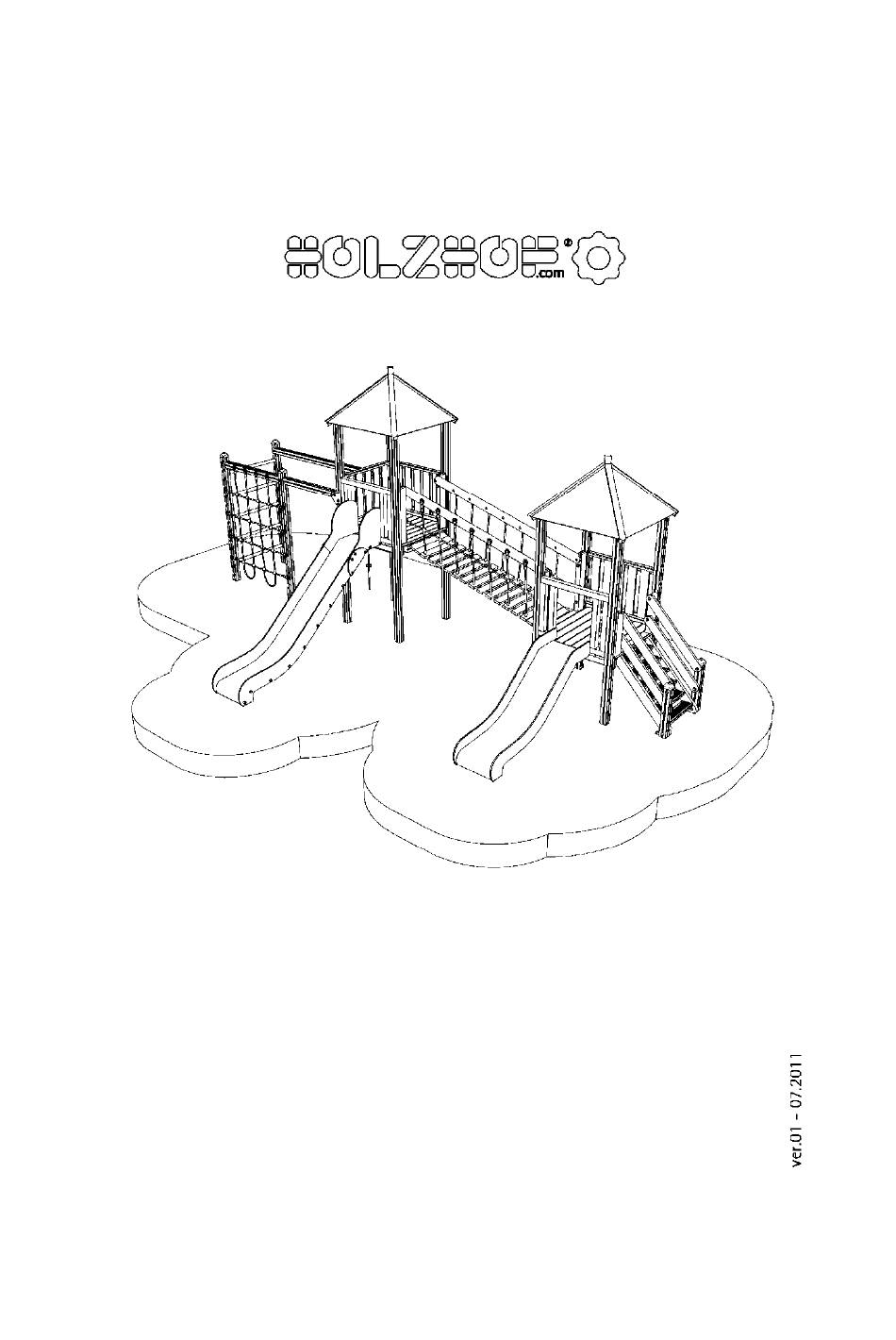

- Page 1 MAX XM 208 LP PUR line assembly instructions...
-
Page 2: Assembly Sequence
ASSEMBLY SEQUENCE: 1. STRUTS AND PLATFORMS 5. PARAPETS 2. BRIDGE 6. ROOFS 3. STEPS 7. GYM 4. SLIDES 8. UNDERGROUND LAYING/ANCHORAGE OF THE STRUCTURE... - Page 3 NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the Article fixing CODE N. NAME correct positioning of the elements has been num. verified. xpe11 Shaped PE nut protection cap xpe10 PE nut protection cap xpe116 PE cap ISO7089 Ø8 washer...
- Page 4 horizontal from h.120cm to 144cm from h.144cm to 168cm from h.168cm to 192cm from h.84cm to 120cm from h.144cm to 192cm from h.84cm to 144cm...
- Page 5 1. Control the exact internal distance between the tower struts and the respective heights of the platforms. struts internal distance...
- Page 6 Article num. instruction02 CODE N. NAME /Quantity Shim xls4 xpe10 PE nut protection cap PE cap xpe116 UNI704 M8x180 TEL SCREW IS07089 Ø8 washer 1. Place the bridge shims (1) on the platforms of both towers, in axis with the centre line of the struts, inserting the fixing bolts as indicated in the figure.
- Page 7 Article num. Quantity CODE N. NAME XII36 Fixing beam xpe10 PE nut protection cap xpe116 PE cap ISO7089 Ø8 washer M8x155 HEX SCREW UNI7473 M8 self-locking nut Shaped PE nut protection cap xpe11 1. Position the holes of the bridge beam (1) in axis with the holes of the platform frame pre-drilled table, inserting the bolts required for fixing as indicated in the figure.
- Page 8 1. Position the parapet between the two struts at 7 cm Article Quantity CODE N. NAME in height from the platform num. 2. Check the correct parallelism and verticality xpe10 PE nut protection cap between struts and platform. IS07089 Ø8 washer 3.
- Page 9 1. Fix the slide archway (2) to the struts via the M6x140 TORX screws, inserting them into the pre-drilled holes present. 1) M6x140 TORX SCREW (4x) 2) Max wooden slide archway (1x) NOTA BENE It is recommended to fix the bolts definitively once the correct positioning of the elements has been verified.
- Page 10 1) M6x80 TORX screw (2x) 1. Fix the slide (2) to the archway 2) Max wooden slide body (1x) using the M6x80 TORX screws, to be inserted into the pre-drilled holes.
- Page 11 Article num. support CODE N. NAME 01/Quantity Side panels with wooden steps assembled PE nut protection cap xpe10 PE cap xpe116 UNI4017 M8X150 HEX SCREW IS07089 Ø8 washer UNI7473 M8 self-locking nut Small strut for steps to be supported xlls104 1.
- Page 12 1. Position the steps small struts in the previously excavated Article num. underground 02/ NAME holes, moving the upper part of the steps towards the tower Quantity platform table (6). PE nut protection cap 2. Check that the angle brackets are in axis with the holes PE cap present on the table (6) and insert the bolts used for fixing as UNI4017 M8x65 HEX SCREW...
- Page 13 Article num. support CODE N. NAME 03/Quantity xls68 Upper wooden shim xls25 Wooden hand rail xpe11 Shaped PE nut protection cap UNI704 M8x220 TEL SCREW UNI40l 7 M8x140 HEX SCREW ISO7089 Ø8 washer N.B. The platform can be in UNI7473 M8 self-locking nut engineered wood xpe10...
- Page 14 Article Quantity CODE N. NAME num. Max wooden roof xpe10 PE nut protection cap xpe116 PE cap IS07089 Ø8 washer M8x60 HEX screw M8x60 HEX SCREW xfea 115 Bracket for Max wooden roof M8x60 HEX screw M8x80 HEX screw NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct positioning of the elements has been verified.
- Page 15 1. Position the climbing net beam (3) in the housing of the pre-assembled climbing ladder (4), inserting the bolts necessary for fixing as in the figure, however without fixing it completely and without positioning the caps. NOTA BENE: it is recommended to fix the * lg: wood bolts definitively and only insert the caps al: aluminium...
- Page 16 1) 1 x climbing net strut 2) 1 x rope beam 3) 1 x net beam 4) 1 x climbing ladder 5) 4 x M 8x80 TEL SCREW (lg*) 5) 4 x M6 3x60 TEFR SCREW (al*) 6) 3 x M8x110 HEX SCREW 7) 4 x PE nut protection cap 8) 6 x shaped PE nut protection cap 9) 10 x M8 washers...
- Page 17 1. Position the upper part of the climbing net (1), inserting the bolts necessary for fixing into the thimbles as indicated the figure, without fixing it completely and without positioning the caps. 2. Position the climbing rope (6), inserting the bolts necessary for fixing into the thimbles as indicated the figure, without fixing it completely and without positioning the caps.
- Page 18 NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps UNDERGROUND once the correct positioning of the elements has been verified. ANCHORAGE climbing rope - climbing rope - 1. Drill. 2. Clean the hole thoroughly using an air pump and small brushes.
- Page 19 Concrete deck rubber safety flooring...
- Page 20 1. Excavate a hole with diameter of 30 cm and depth of 60 cm 2. Cast a first layer of concrete with thickness of 10 cm.
- Page 21 3. When the concrete has set, position the slide bracket in the hole, checking the correct alignment of the lower part of the slide with the finished ground level.
- Page 22 4. Complete concrete casting as per layout. 5. When the concrete has set, fill the excavation hole by compacting the infill material up to the finished ground level.
- Page 23 1. Drill. 2. Clean the hole thoroughly using an air pump and small brushes. 3. Insert the anchor into the hole present on the bracket with the aid of a hammer. 4. Tighten using dynamometric wrench. rubber safety flooring 4 x M10x90 screw anchors...
- Page 24 Article num. Quantity CODE N. NAME xfe265 59x59x35 stainless steel angle bracket xpe10 PE nut protection cap xpe116 PE cap M10 self-locking nut M8x115 screw anchor Ø10 washer 1. Position the slide on the support surface, marking the position of the screw anchor.
