Summary of Contents for Holzhof XT 100 Dirondello

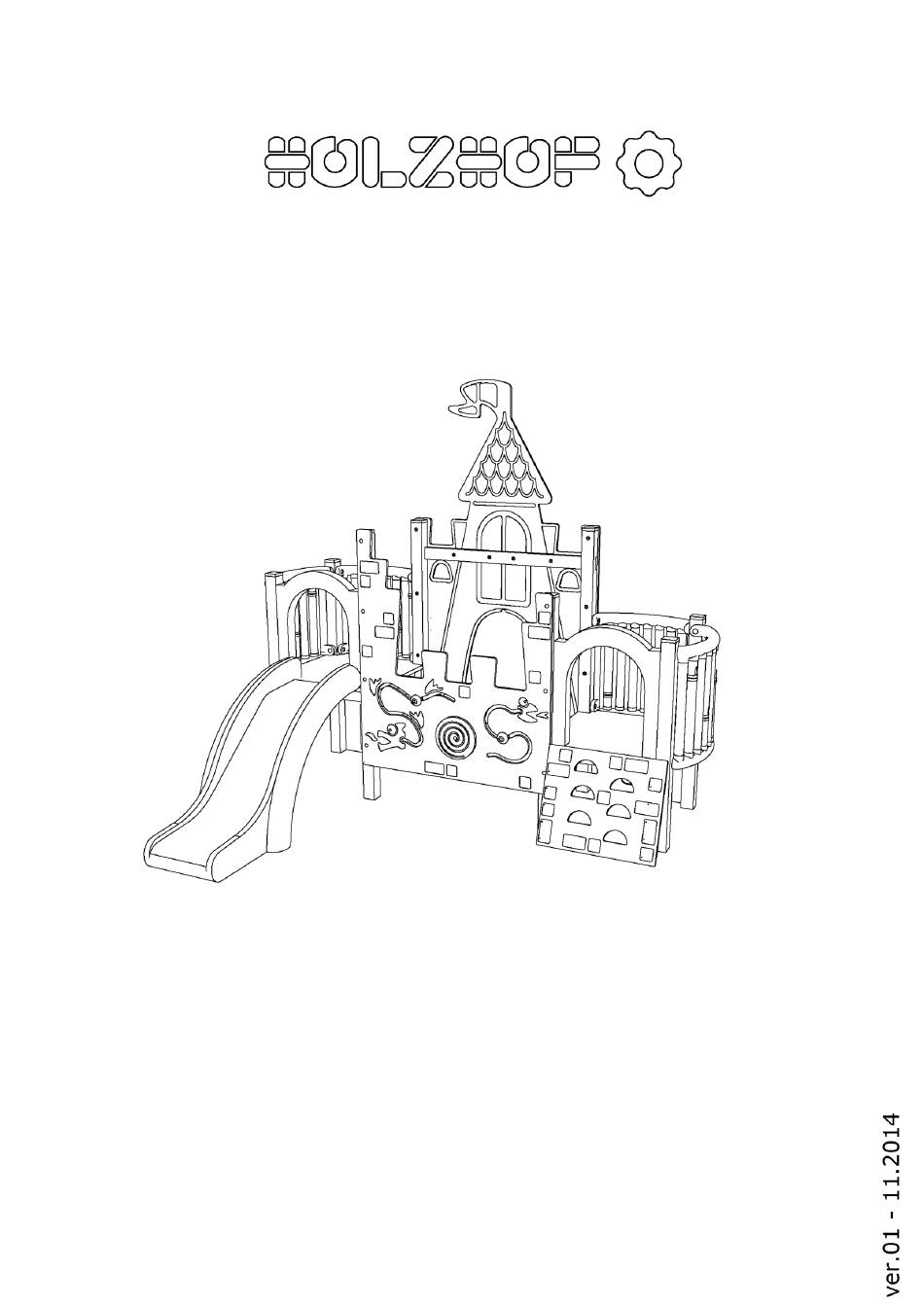

- Page 1 XT 100 "Dirondello" assembly instructions...
- Page 3 ASSEMBLY TIME SEQUENCE 1. Fasten the "flag" panel to the pre-assembled structure using 4 M8x45 hex screws (at the top), 9x M8x80 TORX screws (on sides) and 2x M4x50 TORX screws (near the platform). 2. Fasten the slide to the PE entrance using 4x M8x180 TORX screws. 3.
- Page 4 fasten using a M8x45 hex screw fasten using a M8x80 TORX screw fasten using a M4x50 TORX screw fastening detail on the following pages...
- Page 5 PLEASE NOTE: It is advisable to only secure the Article Quantity Name nuts and bolts permanently and insert the caps M8x45 hex screw once it has been checked that all the elements M8 washer finned PE cap have been positioned correctly. 025 M8 self-locking nut Insert the nuts and bolts required for fastening as shown in the figure in holes near the...
- Page 6 Quantity Name Article M8x80 TORX screw M8 washer finned PE cap...
- Page 7 Quantity Article Name M4x50 TORX screw Insert the nuts and bolts required for fastening as shown in the figure in holes near the platform (indicated on the previous page with the letter C).
- Page 8 Article Quantity Name M8x80 TORX screw M8 washer finned cap 025 Fasten the climbing board (4) to struts 7 and 8 using appropriate nuts and bolts as shown in the figure.
- Page 9 1. After securing the PE entrance (2), rest the body of the curved slide (3) on the tower platform (1) and insert the nuts and bolts necessary to secure it in the holes tower present on the slide (3). 2. Once correct positioning, verticality and parallelism PE entrance have been checked, secure the nuts and bolts curved slide...
- Page 10 Fasten the embedding brackets to the struts. The brackets should be fastened inside the structure. Details for each operation can be found on the following pages. For the plug solution, fasten the angle bar instead of the embedding brackets.
- Page 11 For the plug solution, fasten the angle instead embedding brackets with the same procedure, inserting only one screw however. Fasten 2 angle bars to strut 4. 1. Mark the position of the holes on the brackets (5) and create a pilot hole with a M6 tip on struts (6).
- Page 12 PLEASTE NOTE: The plinth must be created according to the specifications indicated in the illustration shown below, as required by standard UNI EN 1176. play surface thickness 5 cm 1. Make a 50x50 cm hole that is 60 cm deep. 2.
- Page 13 1. Drill a hole. 1. Drill a hole. 2. Thoroughly clean the hole using 2. Thoroughly clean the hole using an air pump and brushes. an air pump and brushes. 3. Insert the anchor in the hole 3. Insert the anchor in the hole present on the angle bar.
