Holzhof MAX XM 209 P Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MAX XM 209 P line
assembly
instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAX XM 209 P and is the answer not in the manual?

Questions and answers

Related Manuals for Holzhof MAX XM 209 P

Summary of Contents for Holzhof MAX XM 209 P

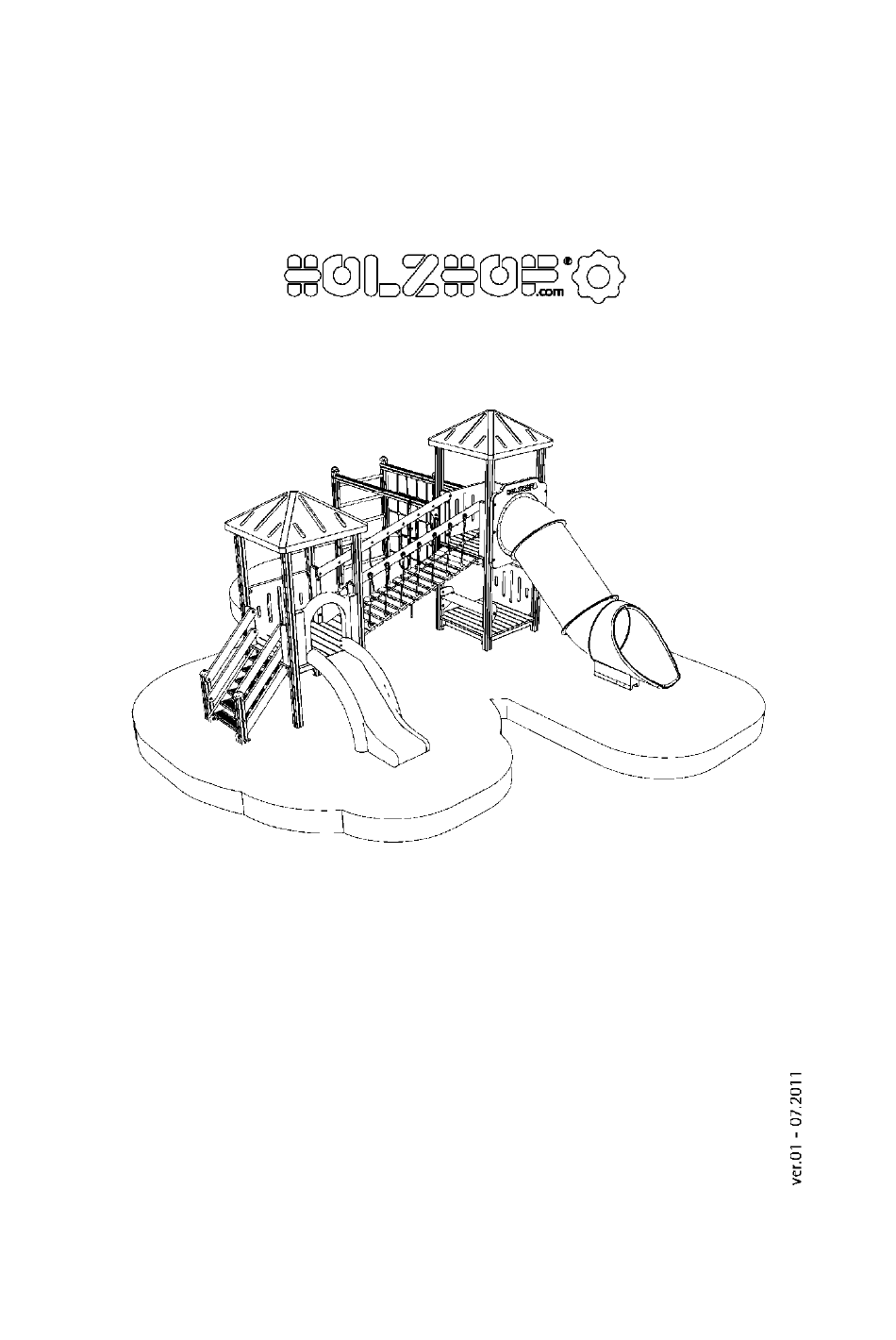

  • Page 1 MAX XM 209 P line assembly instructions...

  • Page 2: Assembly Sequence

    ASSEMBLY SEQUENCE: 1. STRUTS AND PLATFORMS PARAPETS 2. BRIDGE BENCH 3. STEPS ROOFS 4. ARCHWAYS 5. SLIDES UNDERGROUND LAYING/ANCHORAGE OF THE STRUCTURE...
  • Page 3 NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct Article fixing CODE N. NAME num. positioning of the elements has been verified. Shaped PE nut protection cap xpe11 PE nut protection cap xpe10 PE cap xpe116...
  • Page 4 horizontal from h.120cm to 144cm From h.144cm to 168cm From h.168cm to 192cm from h.84cm to 120cm from h.144cm to 192cm from h.84cm to 144cm...
  • Page 5 1. Control the exact internal distance between the tower struts and the respective heights of the platforms. Struts internal distance...
  • Page 6 Article num. instruction02 CODE N. NAME /Quantity xls4 Shim xpe10 PE nut protection cap xpe116 PE cap UNI704 M8x80 TEL SCREW IS07089 Ø8 washer 1. Place the bridge shims (1) on the platforms of both towers, in axis with the centre line of the struts, inserting the fixing bolts as indicated in the figure.
  • Page 7 Article num. Quantity CODE N. NAME xll36 Fixing beam xpe10 PE nut protection cap xpe116 PE cap ISO7089 Ø8 washer M8x155 HEX SCREW UNI7473 M8 self-locking nut xpe11 Shaped PE nut protection cap 1. Position the holes of the bridge beam (1) in axis with the holes of the platform frame pre-drilled table, inserting the bolts required for fixing as indicated in the figure.
  • Page 8 NOTA BENE: it is recommended to fix the bol NOTA BENE: it is recommended to fix the bol NOTA BENE: it is recommended to fix the bol NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct ts definitively and only insert the caps once the correct ts definitively and only insert the caps once the correct ts definitively and only insert the caps once the correct...
  • Page 9 Article num. support CODE N. NAME 01/Quantity Side panels with wooden steps assembled xpe10 PE nut protection cap xpe116 PE cap UNI4017 M8X150 HEX SCREW IS07089 Ø8 washer UNI7473 M8 self-locking nut xlls 104 Small strut for steps to be supported 1.
  • Page 10 1. Position the steps small struts in the previously excavated Article num. underground NAME holes, moving the upper part of the steps towards the tower platform table (6). Quantity PE nut protection cap 2. Check that the angle brackets are in axis with the holes PE cap present on the table (6) and insert the bolts used for fixing UNI4017 M8x65 HEX SCREW...
  • Page 11 Article num. support CODE N. NAME 03/Quantity xls68 Upper wooden shim xls25 Wooden hand rail xpe11 Shaped PE nut protection cap UNI704 M8x220 TEL SCREW UNI40l 7 M8x140 HEX SCREW IS07089 Ø8 washer UNI7473 M8 self-locking nut N.B. The platform can be in xpe10 PE nut protection cap engineered...
  • Page 12 1. After having fixed the PE archway (2), place the body of the Article Default/ NAME num. Quantity (3) curved slide on the platform of the tower (1) and insert the bolts necessary for fixing into the holes present on the Aladin tower slide (3).
  • Page 13 1) PE cap (6x) 1. Position the curved slide (5) assembled to the tower, 2) PE nut protection cap (6x) keeping the entry to the tube in correspondence with the height of the platform. 3) M8 washer (6x) 2. Fix using the relevant bolts, as indicated in the figure. The following instructions are also valid for the tube bridge.
  • Page 14 NOTA BENE: NOTA BENE: NOTA BENE: NOTA BENE: i i i i t is recommended to fix t is recommended to fix t is recommended to fix t is recommended to fix the bolts definitively and only insert the the bolts definitively and only insert the the bolts definitively and only insert the the bolts definitively and only insert the caps once the correct positioning of the...
  • Page 15 1) PE cap (4x) 2) PE nut protection cap (4x) 3) M8 washer (4x) 4) M8x130 TEL screw (4x) LG* 5) M6 3x60 TEFR screw (4x) AL* 6) Assembled bench NOTA BENE: it is NOTA BENE: it is NOTA BENE: it is NOTA BENE: it is recommended to fix the recommended to fix the...
  • Page 16 Article Default/ CODE N. NAME num. Quantity PE roof xpe10 PE nut protection cap xpe116 PE cap IS07089 Ø8 washer M8x80 TEL screw NOTE: The models represented are purely indicative. These instructions are applicable to Max, Sultan and Aladin roofs. 1.
  • Page 17 1. Position the climbing net beam (3) in the housing of the pre-assembled climbing ladder (4), inserting the bolts necessary for fixing as in the figure, however without fixing it completely and without positioning the caps. * lg: wood * lg: wood * lg: wood * lg: wood NOTA BENE: it is recommended to fix the...
  • Page 18 1) 1) 1) 1) 1 x climbing net strut 1 x climbing net strut 1 x climbing net strut 1 x climbing net strut 2) 2) 2) 2) 1 x rope beam 1 x rope beam 1 x rope beam 1 x rope beam 3) 3) 3) 3) 1 x net beam 1 x net beam...
  • Page 19 1. Position the upper part of the climbing net (1), inserting the bolts necessary for fixing into the thimbles as indicated the figure, without fixing it completely and without positioning the caps. 2. Position the climbing rope (6), inserting the bolts necessary for fixing into the thimbles as indicated the figure, without fixing it completely and without positioning the caps.
  • Page 20 NOTA BENE: it is recommended to fix the NOTA BENE: it is recommended to fix the NOTA BENE: it is recommended to fix the NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps bolts definitively and only insert the caps bolts definitively and only insert the caps bolts definitively and only insert the caps UNDERGROUND...
  • Page 21 Concrete deck rubber safety flooring...
  • Page 22 1. Excavate a hole with diameter of 30 cm and depth of 60 cm 2. Cast a first layer of concrete with thickness of 10 cm.
  • Page 23 3. When the concrete has set, position the slide bracket in the hole, checking the correct alignment of the lower part of the slide with the finished ground level.
  • Page 24 4. Complete concrete casting as per layout. 5. When the concrete has set, fill the excavation hole by compacting the infill material up to the finished ground level.
  • Page 25 1. Excavate two holes with diameter of 30 cm and depth of 60 cm as per layout. 2. Cast a first layer of concrete with thickness of 10 cm.
  • Page 26 The measurements vary on the basis of the entrance to the slide from a minimum of 20 to a maximum of 35 cm.
  • Page 27 3. Complete concrete casting as per layout. 4. When the concrete has set, fill the hole by compacting the infill material up to the finished ground level.
  • Page 28 1. Drill. 2. Clean the hole thoroughly using an air pump and small brushes. 3. Insert the anchor into the hole present on the bracket with the aid of a hammer. 4. Tighten using dynamometric wrench. rubber safety flooring rubber safety flooring rubber safety flooring rubber safety flooring 4 x M10x90 screw anchors...
  • Page 29 Article num. Quantity CODE N. NAME xfe265 59x59x35 stainless steel angle bracket xpe10 PE nut protection cap xpe116 PE cap M10 self-locking nut M8x115 screw anchor Ø10 washer 1. Position the slide on the support surface, marking the position of the screw anchor.
  • Page 30 Article Quantity NAME num. Tube slide anchorage bracket PE nut protection cap M10 self-locking screw anchor Ø10 washer M10 self-locking nut PE cap 1. Adjust the bracket (1) to the necessary height. 2. Mark the position of the screw anchors on the ground. 3.
