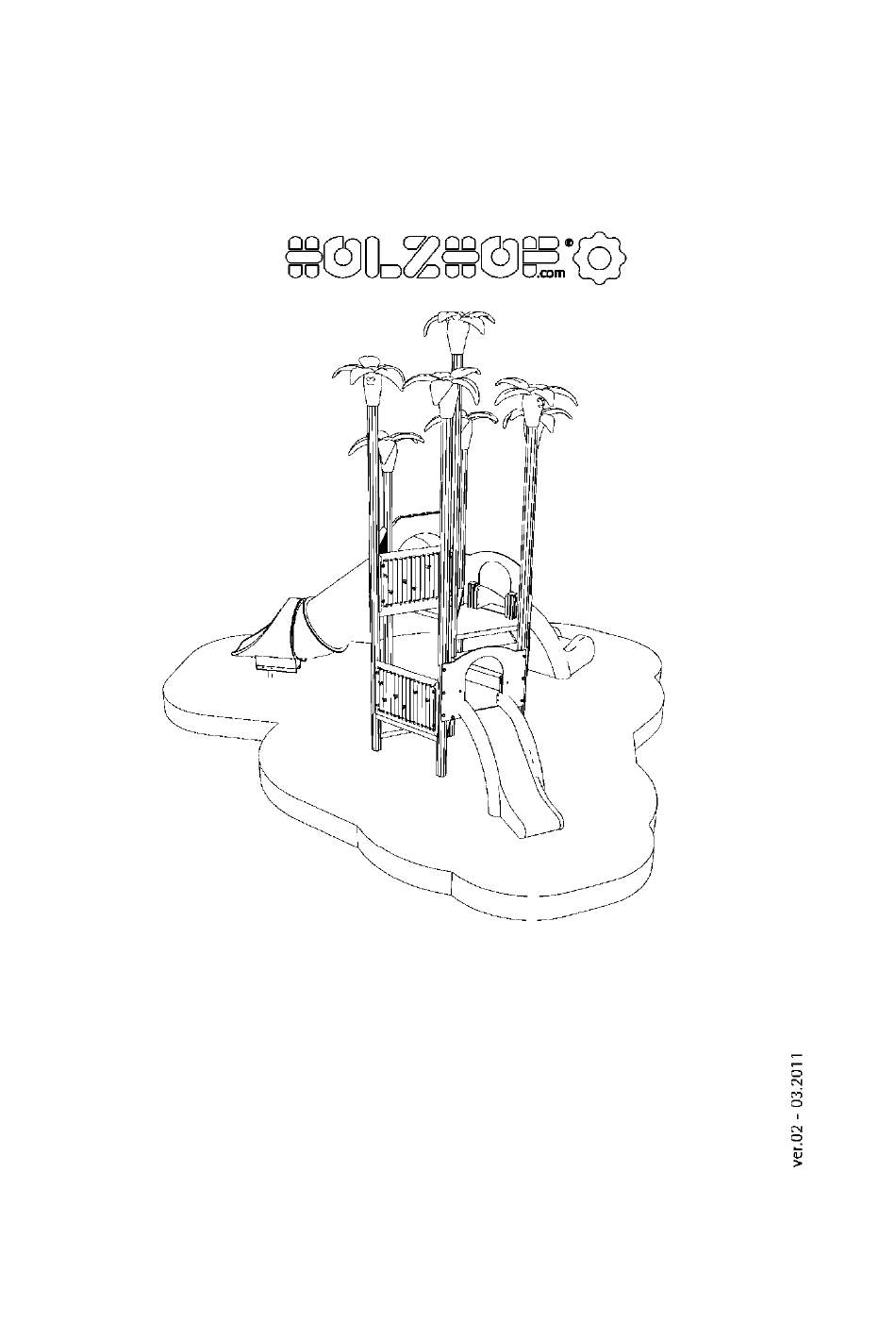

- Page 1 OASIS XOA 100 line OASIS XOA 100 line OASIS XOA 100 line OASIS XOA 100 line assembly instructions assembly instructions assembly instructions assembly instructions...
-
Page 2: Assembly Sequence
ASSEMBLY SEQUENCE: 1. STRUTS AND PLATFORMS 2. PE ARCHWAYS 3. SLIDES 84 4. SLIDES 144 5. TUBE SLIDE 6. PARAPETS 7. PALMS 8. UNDERGROUND LAYING/ANCHORAGE OF THE STRUCTURE... - Page 3 KEY: • bolts insertion • space Follow the layout for correct positioning of the bolts. (a) support (i) underground...
- Page 4 Article Quantity NAME num. Oasis triangular platform Oasis aluminium strut PE nut protection cap IS07089 Ø8 washer M6,3x60 TEFR SCREW PE cap 1. Fix the platform (1) to the struts (2), inserting the relevant bolts into the holes on the wings at the corners (as shown in the attached layout), as indicated in the figure.
- Page 5 NOTA BENE: it is recommended to fix 1) 4 x PE cap the bolts definitively and only insert 2) 2 x M8 nut the caps once the correct positioning 3) 4 x M8 washer of the elements has been verified. 4) 4 x PE nut protection cap 5) 2 x M8x40 HEX Screw 6) 1 x slide entrance panel...
- Page 6 NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct positioning of the elements has been verified. 1) 6 x PE nut protection cap 2) 6 x M8 washer 3) 6 x M6 3x60 TEFR SCREW 4) 6 x PE cap Ø...
- Page 7 1. Drill the small struts using the Ø5 bit supplied. 2. Fix the slide to the small struts using the relevant bolts as indicated in the figure. 4 x PE cap 4 x M6 3x80 TEFR SCREW 4 x washer NOTA BENE: it is recommended to fix the bolts definitively and only insert the caps once the correct positioning of the...
- Page 8 Article Quantity NAME num. PE nut protection cap Oasis assembled tube slide PE cap IS07089 Ø8 washer M6,3x100 TEFR SCREW 1. Fix the (2) tube slide body to the bracket using the relevant bolts, as indicated in the figure. The tube entrance must be positioned at the same height as the platform (see figure 1).
- Page 9 Article Quantity NAME num. Fix the protection panel using the relevant bolts, as indicated in the PE bamboo parapet figure. PE nut protection cap The lower part of the panel is adjacent to the upper part of the PE cap platform.
- Page 10 NOTA BENE: Before proceeding with fixing, drill the struts using the Ø5 mm bit supplied. Fix the PE palm to the top of the strut, inserting the screw as indicated in the figure. NOTE: colours and models represented are purely indicative. M6 ,3x90 mm TEFR screw...
- Page 11 1. Excavate a hole with Ø 30 cm and depth of 60 cm 2. Cast a first layer of concrete with thickness of 10 cm.
- Page 12 3. When the concrete has set, position the strut upright in the excavation hole. 4. Complete concrete casting as per layout. 5. When the concrete has set, fill the excavation hole by compacting the infill material up to the finished ground level.
- Page 13 1. Excavate a hole with diameter of 30 cm and depth of 60 cm 2. Cast a first layer of concrete with thickness of 10 cm.
- Page 14 3. When the concrete has set, position the slide bracket in the excavation hole, checking the correct alignment of the lower part of the slide with the finishedground level.
- Page 15 4. Complete concrete casting as per layout. 5. When the concrete has set, fill the excavation hole by compacting the infill material up to the finished ground level.
- Page 16 1. 1. 1. 1. A A A A ttach the brackets (1) by introducing the followin ttach the brackets (1) by introducing the followin ttach the brackets (1) by introducing the followin ttach the brackets (1) by introducing the following in g in g in g in...
- Page 17 1. Excavate two holes with diameter of 30 cm and depth of 60 cm as per layout. 2. Cast a first layer of concrete with thickness of 10 cm.
- Page 18 The measurements vary on the basis of the entrance to the slide from a minimum of 20 to a maximum of 35 cm.
- Page 19 3. Complete concrete casting as per layout. 4. When the concrete has set, fill the hole by compacting the infill material up to the finished ground level.
- Page 20 Article Quantity NAME num. Oasis support strut H.333 59x59x35 stainless steel angle bracket PE nut protection cap IS07089 Ø8 washer M6,3x80 TEFR screw M10 self-locking screw anchor M10 self-locking nut Ø10 washer PE cap 1. Position the strut and the angle bracket onto the support surface, marking the position of the screw anchor.
- Page 21 1. Position the climbing board on the support surface and Article Quantity CODE N. NAME num. mark the position of the screw anchors. 2. Drill the support surface and position the screw anchors. xpe10 PE nut protection cap 3. Fix the angle brackets to the support surface using the xpe116 PE cap relevant bolts, as indicated in the figure.
- Page 22 Article Quantity NAME num. Tube slide anchorage bracket PE nut protection cap M10 self-locking screw anchor Ø10 washer M10 self-locking nut PE cap 1. Adjust the bracket (1) to the necessary height. 2. Mark the position of the screw anchors on the ground. 3.
- Page 23 Article num. Quantity CODE N. NAME xfe265 59x59x35 stainless steel angle bracket xpe10 PE nut protection cap xpe116 PE cap M10 self-locking nut M8x115 screw anchor Ø10 washer 1. Position the slide on the support surface, marking the position of the screw anchor.
