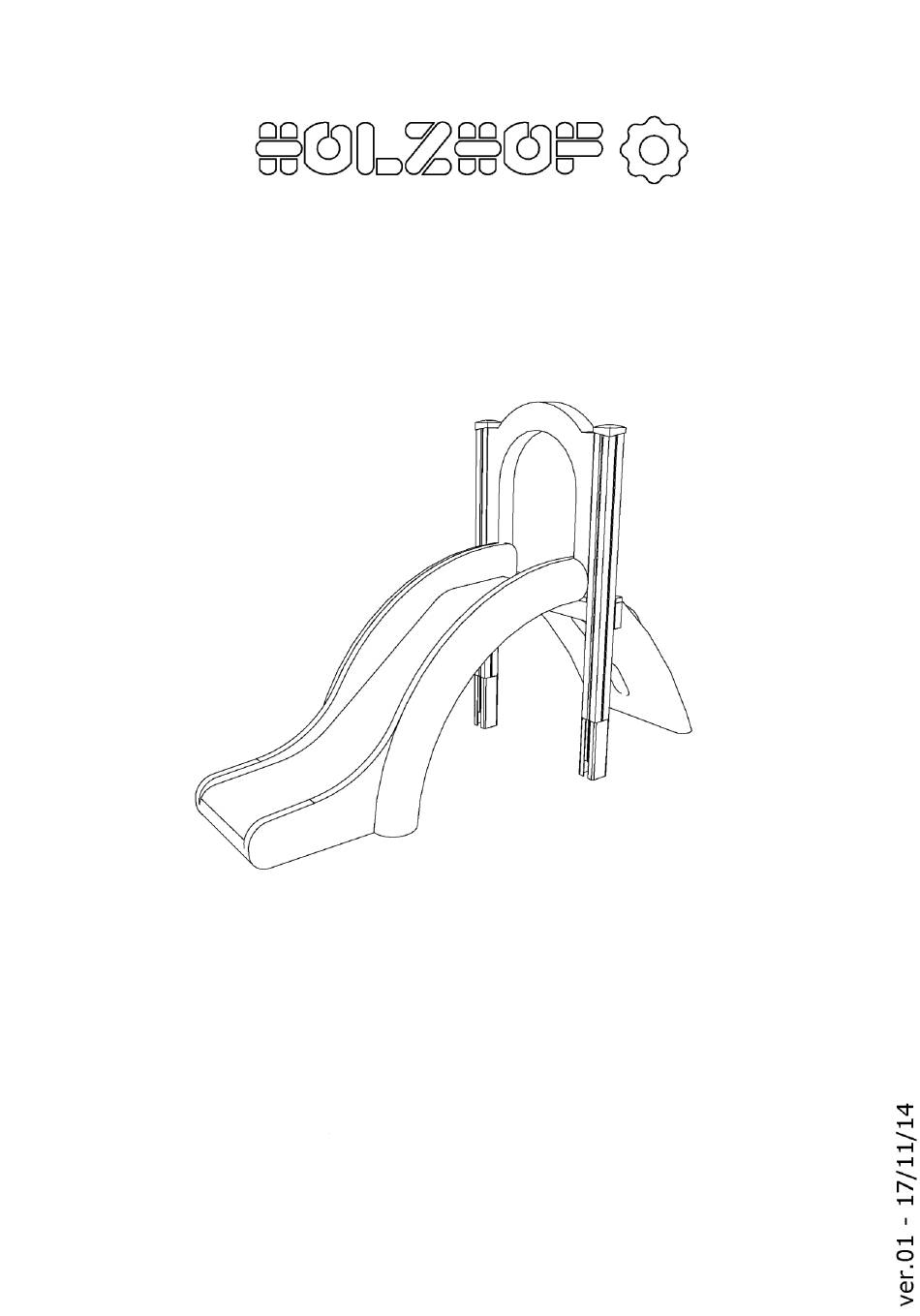

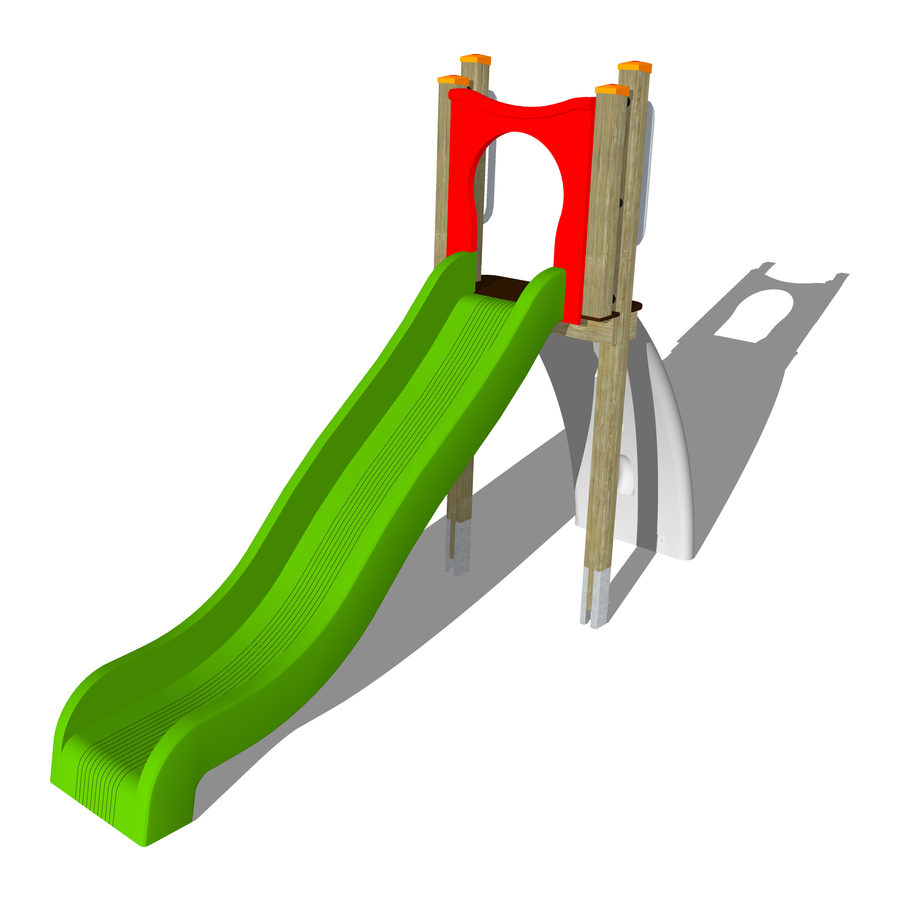

- Page 1 ALADIN/RELESSI XRE 85 range...
- Page 2 ASSEMBLY SEQUENCE: 1. SLIDE 2. CLIMBING BOARD 3. STRUCTURE ANCHORING OR EMBEDDING...
- Page 3 PLEASE NOTE: It is advisable to only secure the nuts and bolts permanently and insert the M8xl80 TORX screw (wood) caps once it has been checked that all the M6.3x150 TEFR screw (aluminium) elements have been positioned correctly. M8 washer finned PE cap 025 PE curved slide 1.
- Page 4 PE cap self-locking nut M8 washer M8 PE nut cover 8x70 threaded bar (LG) 8x50 threaded bar (AL) PE climbing board PLEASE NOTE: It is advisable to only secure the nuts and bolts permanently and insert the caps once it has been checked that all the elements have been positioned correctly.
- Page 5 1. Drill a hole. 2. Thoroughly clean the hole using an air pump and brushes. 3. Insert the anchor in the hole on the bracket with the aid of a hammer. 4. Tighten using a torque wrench. shockproof rubber 4x M10x90 plugs...
- Page 6 PLEASTE NOTE: The plinth must be created according to the specifications indicated in the illustration shown below, as required by standard UNI EN 1176. play surface thickness 13 cm 1. Make a 50x50 cm hole that is 60 cm deep. 2.
- Page 7 1. hook the (1) brackets inserting in sequence (2) PE nut cover, (3) M8 washer, (4) M8x25 hex screw, (5) PE -1. Make two holes that are 30 cm in diameter and 60 cm deep PLEASE NOTE: It is advisable to only secure the nuts and bolts permanently and insert the caps once it has been checked that all the elements have been positioned...
- Page 8 1. Position the climbing board on the support surface, marking the position of the plugs. 2. Drill the support surface and position the plugs. PE nut cover 3. Secure the angle bars to the support surface using PE cap appropriate nuts and bolts, as shown in the figure. PE climbing board 59x59x35 stainless steel angle bar M10 self-locking nut...
- Page 9 1. Make a hole that is 30 cm in diameter and 60 cm deep 2. Cast a first layer of concrete that is 10 cm thick.
- Page 10 3. Once the concrete has hardened, place the slide bracket in the hole, verifying correct alignment of the lower part of the slide with the level of the finished ground.
- Page 11 4. Finish casting the concrete as shown in the diagram. 5. Once the concrete has hardened, fill the hole, tamping it with the left over material until reaching the height of the finished terrain.
- Page 12 59x59x35 stainless steel angle bar PE nut cover PE cap M10 self-locking nut M8x115 plug M10 washer 1. Position the slide on the support surface, marking the position of the plug. 2. Drill the support surface and position the plug. 3.
