Page 1

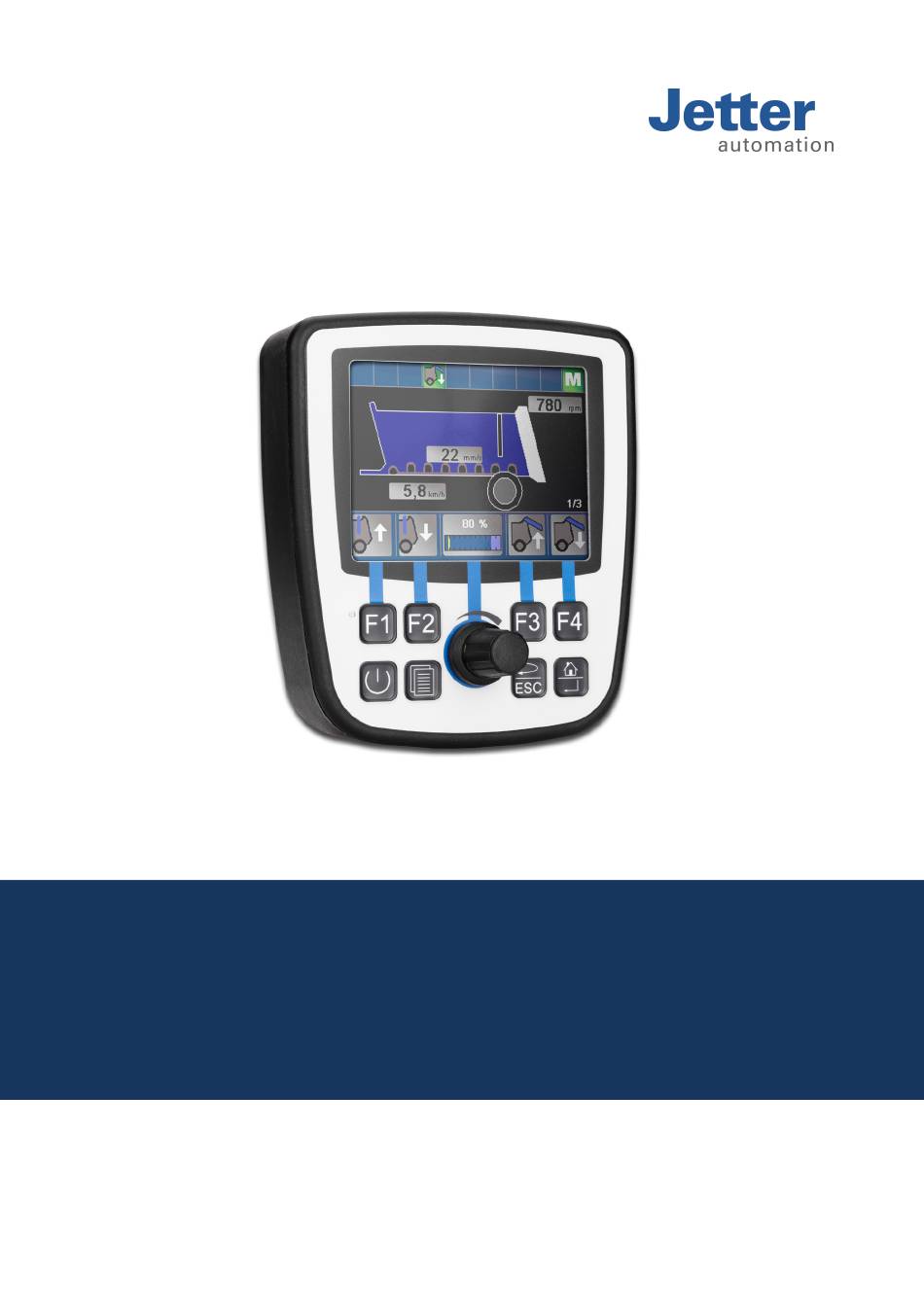

User Manual JVM-104-O08 We automate your success.
Page 2
Revisions and further development of our products are not automatically mentioned in a reviewed document. Jetter AG shall not be liable for errors in form or content, or for missing updates, as well as for damages or disadvantages resulting from such failure.
6 Electrical connection ........................ 18 Pin assignment of M12 connector .................. 19 7 Programming.......................... 20 Abbreviations, module register properties and formats............ 20 CANopen® STX API ...................... 21 7.2.1 STX Functions ...................... 21 7.2.2 CANopen® Object dictionary .................. 22 File system .......................... 22 JVM-104-O08 User Manual...
Page 4
8.12 File system/data file function .................... 35 8.13 Application registers ...................... 35 8.14 Display........................... 35 8.15 Flag ............................ 36 8.16 System Functions........................ 37 9 Maintenance and repairs ...................... 39 Maintenance, repairs and disposal.................. 39 Storage and shipment ...................... 39 10 Service ............................ 40 JVM-104-O08 User Manual...
Page 5
Jetter AG Table of contents 10.1 Customer service ........................ 40 11 Spare parts and accessories ....................... 41 11.1 Accessories ........................... 41 JVM-104-O08 User Manual...
For information on new revisions of this document, visit the download area on our website. This document is not subject to any updating service. Start | Jetter - We automate your success. For further information refer to the following information products: ■...
The device conforms to the EU directive 2011/65/EU (RoHS 2). 2.2 Purpose 2.2.1 Intended use The JVM-104-O08 is intended for installation in commercial vehicles and self-pro- pelled machines. It is an HMI with integrated controller for exchange of data with peripheral devices.

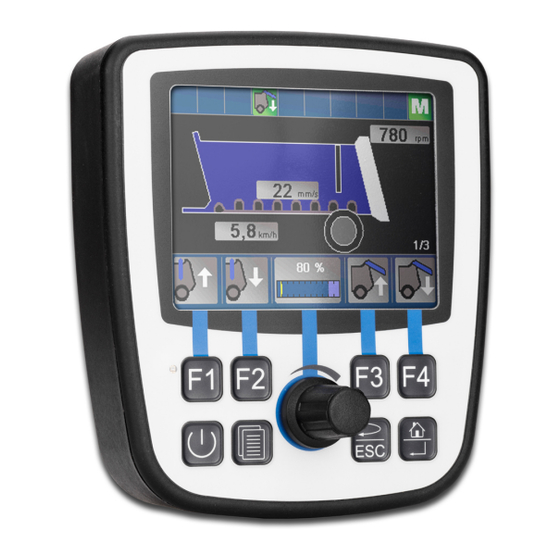

Product description | 3 3 Product description The JVM-104-O08 is a graphical HMI. Thanks to its compact design and inte- grated controller, the HMI is versatile and has been specially developed for harsh applications in commercial vehicles and self-propelled machines.
Jetter AG Product description | 3 3.3 Nameplate Fig. 2: Nameplate Logo Serial number Article number and hardware re- Barcode vision Model code number 3.4 Scope of delivery Scope of delivery Item number Quantity JVM-104-O08 10001558 JVM-104-O08 User Manual 9 / 44...
3x 24 h Shock resistance Type of shock Half-sine wave DIN EN 60068-2-27 Intensity and duration 30 g (300 m/s ) for 18 ms Number and direction 18 shocks in all 6 direc- tions JVM-104-O08 User Manual 10 / 44...
125, 250, 500 kBaud ® Protocol CANopen Default node ID on 127 (0x7F) the CANopen® bus Terminating resistor Does not exist. Must be connected externally. Cable specification Twisted pair conductors, unshielded Tab. 6: CAN interface specification JVM-104-O08 User Manual 11 / 44...
250 kBaud 250 m 10 m 60 m Tab. 9: Line lengths 4.8 EMI values The JVM-104-O08 has E1 approval according to ECE R10 Rev. 5 and CE con- formity according to ISO 14982. Pulses to ISO Test pulse Values Functional class 7637-2 -450 V...
Installation location close to heat-sensi- The materials could become warped or tive materials misshapen as a result of heat produced by the device. Tab. 13: Unsuitable installation locations JVM-104-O08 User Manual 14 / 44...
10001551 consisting of mounting plate and screws for housings with Deutsch/M12 connector including RAM Mount arm with suc- tion cup Tab. 14: Mounting accessories Screw holes Fig. 5: All dimensions of screw holes are in millimeters. JVM-104-O08 User Manual 15 / 44...
Mount ball Screw the desired RAM Mount attachments onto the mounting plate. Hold the JVM-104-O08 against the mounting plate from behind. The connec- tors must be accessible through the openings in the mounting plate. Screw the mounting plate onto the JVM-104-O08.
Surges resulting from missing protection or fusing Surges may cause malfunctions or damage to the product. ► Protect the voltage inputs from surges according to the requirements. ► Ensure that the device is handled in accordance with ESD regulations. JVM-104-O08 User Manual 18 / 44...
■ Recognition of the ignition signal INFO Ignition To launch the JVM-104-O08, pin 3 (Ignition+) must be connected with pin 1. The ignition control signal (Ignition+) is issued when the key is in position Ignition ON. INFO Current consumption When the JVM-104-O08 is energized, the current consumption is temporarily higher.
Format of numerical val- Notation Keyword Var, When, Task Commands BitClear(); Constant numerical values 100 0x100 0b100 Comment // This is a com- ment Further program processing // ... Tab. 19: JetSym sample programs JVM-104-O08 User Manual 20 / 44...
® cation-oriented manual „CANopen STX-API“ which can be downloaded from our Homepage. 7.2.1 STX Functions Application STX functions are used in the communication between the JVM-104-O08 and ® other CANopen nodes. The JVM-104-O08 supports the following STX functions: Features Description...
Jetter AG Programming | 7 7.2.2 CANopen® Object dictionary The operating system of the JVM-104-O08 supports the following objects: Index Object Type of Object name Data type (hex) (code) access 1000 Device type Unsigned32 RO (read only) 1001 Error Register...
By JetSym ■ By means of file commands from within the application program 7.4.4 Application program memory By default, the application program is uploaded from JetSym to the JVM-104-O08 and is stored there. Properties ■ Stored as file within the file system ■...
Special registers let you control OS functions and retrieve status information. Properties ■ Global variables with dedicated addresses (%VL) ■ When the operating system is launched, special registers are initialized using their default values. ■ Register numbers: 100000 ... 999999 JVM-104-O08 User Manual 24 / 44...
[POWER], [SCROLL], [ESC]and [HOME]. These input keys are user-program- mable. Special registers In register 361000 of the JVM-104-O08 a bit-coded map of the input keys is avail- able. You can use this map for programming. The following registers are available for programming the input keys:...
[HOME] 0x24 Tab. 22: Virtual key codes 7.5.2 Digipot The JVM-104-O08 has a rotary dial (digipot) with pushbutton feature which offers a convenient input option. The following provides details of the digipot's special registers with a corresponding sample program. Digipot registers...
For more information on this subject, refer to JetSym online help. 7.5.3 Ignition and OFF delay This chapter covers the ignition and the function Shutdown(). Special registers The special register 361100 of the JVM-104-O08 is responsible for prompting the state of the ignition. Where: If … … then …...
For more information on this subject, refer to JetSym online help. 7.6 Operating system update Jetter AG are continuously striving to enhance the operating systems of their products. Enhancing means adding new features, upgrading existing functions and fixing bugs. Current OS files are available for download on our homepage in the Downloads area of the respective product.
To activate the newly installed OS, re-boot the device. 7.6.2 Performing an OS update via JetEasyDownload To update the operating system of a JVM-104-O08 use a Peak CAN dongle and the command line tool JetEasyDownload (version 1.00.0.15 or higher) by Jetter.
JVM-104-O08, the application program is loaded via the file system and exe- gram cuted. The application program is loaded by the OS of the JVM-104-O08 as follows: Level Description The operating system reads the file \App\start.ini from the internal flash disk.
Jetter AG Registers - Overview | 8 8 Registers - Overview This register overview describes the registers of the JVM-104-O08 in summa- rized form. 8.1 Default address on the CANopen® bus Default address of the JVM-104-O08: Node ID: 127 (0x7F) 8.2 General overview - Registers...
Available sectors 107511 Used sectors 107512 Blocked sectors 107513 Free sectors 107520 Size of the flash disk in bytes 107521 Used memory in bytes 107522 Blocked memory in bytes 107523 Free memory in bytes JVM-104-O08 User Manual 32 / 44...
10 ms units for R 201002 Read/write 201004 Runtime registers in mil- Read liseconds 201005 Runtime registers in mi- Read croseconds 202960 Password for system com- 0x424f6f74 mand register: 202961 System command register 202980 Error history: Number of entries JVM-104-O08 User Manual 33 / 44...
Task ID in scheduler table 210070 Task ID (for R210071) 210071 Timer number (0 ... 31) 210072 Manual triggering of a timer event (bit-coded) 210073 End of cyclic task (task ID) 210074 Command for cyclic tasks JVM-104-O08 User Manual 34 / 44...
The ignition is ON. Bit 0 = 1 Ignition is OFF Digipot 363000 Present count value 363001 Digipot key 363002 Minimum count value 363003 Maximum count value Illumination 64000 Background lighting 364001 Night-lighting of keys JVM-104-O08 User Manual 35 / 44...
Separation of digits before and after the decimal point Sorting register values Writing a data file Appending a data file Reading a data file Deleting a data file System functions Corresponding JetSym STX function Function Bcd2Hex(Bcd: int): Int; Function Hex2Bcd(Hex: int): Int; JVM-104-O08 User Manual 37 / 44...
In case of damaged packaging inspect the device for any visible damage, and in- form your freight forwarder and the Jetter AG of the damage caused during ship- ment. If the device is damaged or has been dropped, it is strictly forbidden to use...
To contact them, please call our technical hotline or use the contact form on our homepage: Technical hotline | Jetter - We automate your success. You are also welcome to send an e-mail to our technical hotline: hotline@jetter.de...
► Only use accessories recommended by Jetter AG. 11.1 Accessories INFO The accessories are not part of the scope of delivery. Apt accessories can be obtained from Jetter AG. Accessories Item number Mounting plate for RAM Mount ball 10001621 consisting of mounting plate and screws for housing with...
Page 42
Space requirements for installation work (in mm) ..............Fig. 5 All dimensions of screw holes are in millimeters..............Fig. 6 Installation drawing........................Fig. 7 Installing the strain relief......................Fig. 8 M12 connector, 8 pins ......................JVM-104-O08 User Manual 42 / 44...
