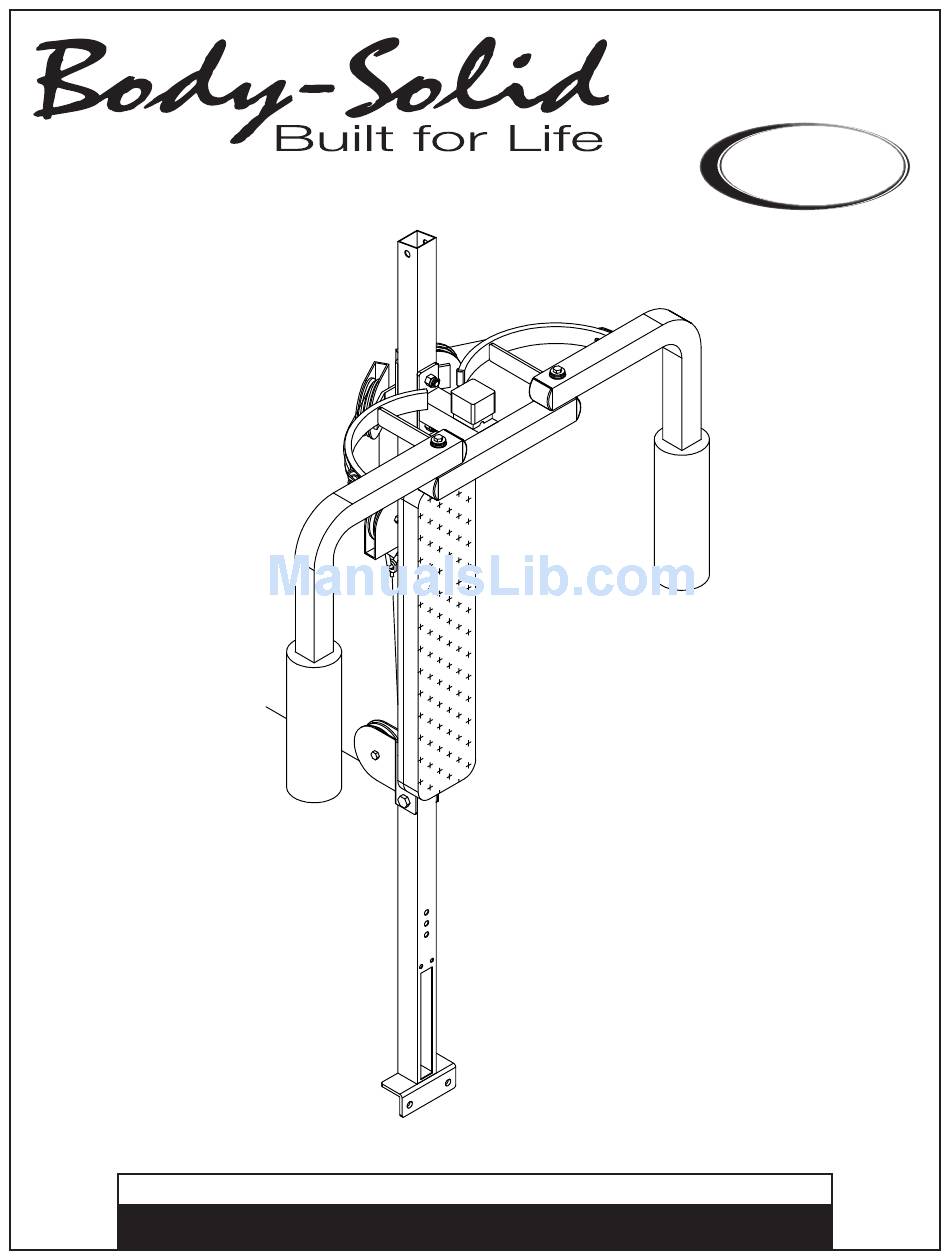

  • Page 1 ® GPA-3 ® ® & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L v. 050709...
  • Page 2 If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. m Assemble and operate the GPA-3 on a solid, level surface. Locate the unit a few feet from the walls or furniture to provide easy access.
  • Page 3: Unpacking The Equipment

    B e f o r e Y o u B e g i n Thank you for purchasing the GPA-3. This gym is part of the Body-Solid line of quality strength training machines, which let you target specific muscle groups to achieve better muscle tone and overall body conditioning.
  • Page 4: Installation Requirements

    CAUTION: To set up this unit, you will need assistance. Do not attempt assembly by yourself. You must review and follow the instructions in this Owner’s Manual. If you do not assemble and use the GPA-3 according to these guidelines, you could void the Body-Solid warranty.
  • Page 5: Assembly Tips

    A s s e m b l y I n s t r u c t i o n s Assembly of the GPA-3 takes professional installers about 1 hour to complete. If this is the first time you have assembled this type of equipment, plan on significantly more time.
  • Page 6 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Some components may be pre-installed. Connect Pulley Plate (B) and Center Arm Frame (A) as shown by using: Two A1 (M12x75 hex head bolt) Two B1 (M12 nylon nut) Install two Pulleys (D4) to Center Arm Frame (A) using: Two A3 (M10x45 hex head bolt)
  • Page 7 S T E P GPA-3 GPA-3 Above shows Step 1 assembled and completed. PAGE 2 PAGE 2...
  • Page 8 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step unless otherwise noted. Attach Cable (D3) to Right Arm (D) by sliding it into position. Bring Cable (D3) around the Pulley on Pulley Plate (B) then down towards Pulley Holder with Hook (F) as shown.
  • Page 9 S T E P GPA-3 PAGE 3...
  • Page 10 H a r d w a r e L i s t Part# Description Center Arm Frame Pulley Plate Left Arm Right Arm Pulley Holder Pulley Holder with Hook Hex Head Bolt M12x75 Hex Head Bolt M12x70 Hex Head Bolt M10x45 Hex Head Bolt M10x40...
  • Page 11 H a r d w a r e ( T o H a r d w a r e ( T o S c a l e ) H a r d w a r e ( T o S c a l e ) H a r d w a r e H a r d w a r e ( T o S c a l e )
  • Page 12 E x P L O D E D V I E W GPA-3 D I A g R A M GPA-3 g PA - 3 PAGE 2 PAGE 2...
  • Page 14 ® 1900 S. Des Plaines Ave. Forest Park, Il 60130 1 (800) 556-3113 Hours: M-F 8:30 - 5:00 www.bodysolid.com Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs.
