Summary of Contents for Arctiko Integraline ULUF P10
- Page 1 ORIGINAL OPERATING INSTRUCTIONS Integraline RANGE ULUF P10/P50/P90...
-
Page 2: Table Of Contents
Contents Contents Page Page Introduction How to turn on the device How to turn off the device Symbols Menu user Abbreviations How to change the setpoint How to change alarm limits Safety Access list Intended use Ecomode settings Personal safety Event list Graphs Handling &... -
Page 3: Introduction
Young children should be supervised to ensure that they do not play with Integraline ULUF P10, ULUF P50 and ULUF P90 are designed for storage of the appliance. The appliances are designed to operate within a temperature biomedical products at a constant temperature in clinical, pharmaceutical, range of -40°C to -86°C at a maximum ambient temperature of +25°C, climate... -
Page 4: Handling & Transportation
1. Inspect the packaging carefully for any damage that may have electrical devices. occurred during shipping. If damage is observed, report to the shipping company and your local Arctiko distributor. This appliance is marked in compliance with the 2002/96/CE European Directive, WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE). -
Page 5: Installation
Installation WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the Preparing the appliance type recommended by the manufacturer - Unpack the appliance: Remove all packaging material, plastic bags and straps. Location - Storing the key: The key for the door lock is strapped to the backside Place the appliance in a location that satisfies the following conditions in or-... -
Page 6: Electrical Connection
Do not use the unit outdoors. Current leakage or electric shock may Always make sure the unit is grounded to protect the user from result if the unit is exposed to rain. electrical shock. Do not use the power supply cord if it is damagaged. Such supply Never install the appliance in a flammable or volatile location. -

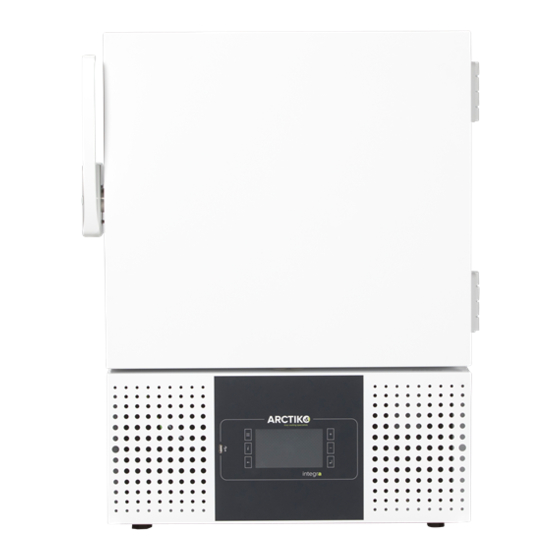

Page 7: Product Description
Product description Cabinet overview The Integraline range offers the best ultra-low temperature freezing with high performance and stability. Standard features are VIP panel, filter-less construction for less maintenance, low noise level, low energy consumption, low heat dissipation and excellent temperature stability. 11. -
Page 8: Probes And Access Port
Single compressor technology The Arctiko Integraline range also comes with our single compressor technol- Vacuum valve ogy. In contrast to the normal casade system, these appliances only need 1 compressor to reach the desired temperature. -
Page 9: Display
Display Action Icons Easy and user-friendly control panel, with a 6-key resistive keyboard. You can access a variation of settings, in order to adjust your unit for your exact needs. A 4GB microSD is provided as standard, installed internally for recording functional data every 30 seconds with a memory capacity of about 10 years. -
Page 10: Failure Events
Temperature alarms Failure events To accept a failure, press the center of the screen. NOTIFICATION OF PREVIOUS ALARM... -
Page 11: Outcome Frames
Outcome frames Warnings The outcome frames will be accompanied by a long beep. To accept a warning, press “ ”. DOOR OPEN... -
Page 12: How To Turn On The Device
How to turn on the device How to turn off the device Menu user Press on the screen and hold, to turn on the Press “Menu key” to access “Menu user”. device. Press and hold “Standby” to turn off the device (put in standby mode). -
Page 13: How To Change The Setpoint
How to change the setpoint How to change the alarm limits Press the “Menu key” to access the menu. -
Page 14: Access List
Access list Ecomode setting The ECOMODE function is a power saving feature integrated in the controller. It works by raising the setpoint temperature temporarily in times of low cooling demand (e.g. during weekends or closing hours). By raising the setpoint temperature the power consumption is lowered as a result of the lower load on the cooling system. -
Page 15: Event List
Event list Graphs Shows number of pages with events. Press change page. REPRESENTATION CRITERIA SCROLLING THE FRAPH AND ENABLING THE TRACES If the event list is empty, the icon above will be shown. -
Page 16: Menu Settings
Menu settings Set clock Press select to move the highlight and +/- to change the value. To confirm press “Enter” - DATE/HOUR set the clock device - DISPLAY set the configuration of panel display The system clock does not automatically manage the Summer time. The connection towards the Cloud refers to the transparent UTC at the - PASSWORD set the three levels of passwords... -
Page 17: Password Settings
Admin: For setting more advanced parameters and for managing users. The default password is “111”. Service: For accessing the service menu. The service settings are reserved for qualified Arctiko service personnel. By entering the admin password both the admin and user passwords can be changed. -
Page 18: Data Download
You can transfer the data to a computer in order to analyze, process or forward information. The program “THERMO CONVERTER” is needed to transfer the data. The program can be obtained by contacting your Arctiko The backup menu transfers the thermoregulation data on usb pen. - Page 19 Open Open 5. The file will now open in Excel or your equivalent program . 3. Open the file by following the path: VLX > BACKUP > R00000 (serial number of the appliance)> 201807(year and month). Choose the desired file and press “Open”. 4.
-
Page 20: Single Compressor Technology
Thermoconverter 2.0. The memory capacity is such to store the data of about 10 years of operation. Arctiko’s single compressor system is designed as a filter-less system, which prevents malfunctions caused by dust building up in the filter. This minimizes 3.1 VARIABLES SAVED... -
Page 21: Maintenance
Frequent and correctly executed maintenance is essential to ensure high - Dust off the inside of the compressor compartment using only a dry brush performance and functionality of the appliance. Arctiko recommends a or a vacuum cleaner. Parts in the refrigeration system for this appliance are thorough examination twice a year and cleaning at least once a month. -
Page 22: Service
25°C. unit is located. Arctiko strive for day-to-day delivery of spare parts. However, some special The unit is not levelled. Adjust the castors/feet. parts may take longer due to production time. Arctiko guarantees availability of spare parts for all appliances for at least 10 years after the delivery. - Page 23 Arctiko A/S Oddesundcej 39 DK-6715 Esbjerg N Phone: + 45 7020 0328 info@arctiko.com arctiko.com 5080065-05-GB...
