Arctiko SF SERIES Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

*
Service Manual
SF MODELS
*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arctiko SF SERIES

Summary of Contents for Arctiko SF SERIES

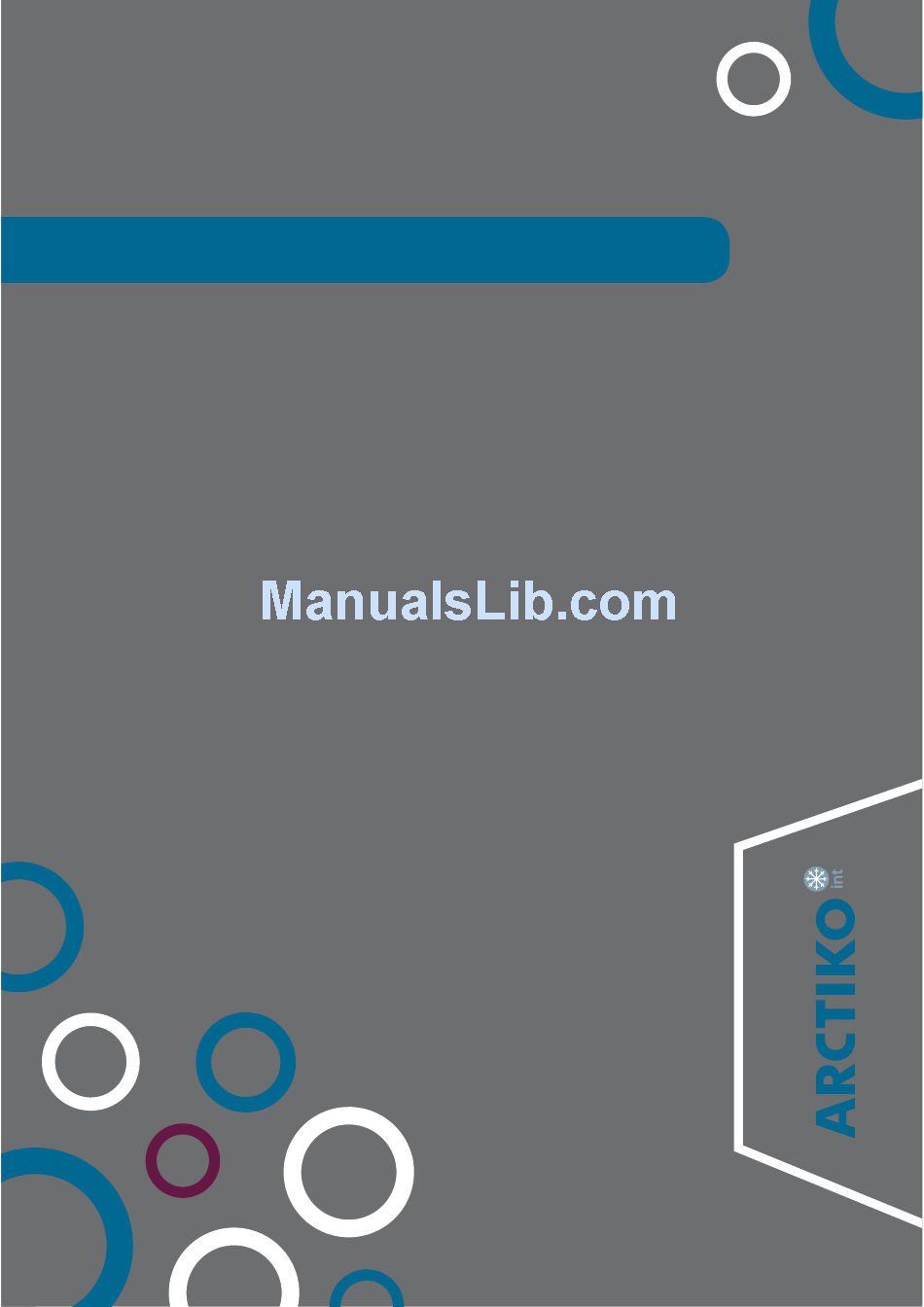

  • Page 1 Service Manual SF MODELS...
  • Page 2 SF 150 / 500...

  • Page 3: General Safety

    1. Working safety This page provides general safety information for servicing the freezer. The instruction manual includes additional information about security and cleaning of freezer. 1.1 General safety To prevent personal and equipment damage, the electrical safety / legislation of your country must be observed.
  • Page 4 2. Information about the freezer 2a. General information about the freezer Door handle with lock Castors Controller Dixell XR30CX Motor compartment Backside Porthole Condenser Sublids...
  • Page 5 Label plate located on the device. Model Voltage/Hz Temp.range Refrigerant/Filling Serial no. When contacting the supplier it is important to inform the model and serial number. The label plate is located behind the front panel in the engine compartment. For technical problems: See troubleshooting schedule (3b). 2b.
  • Page 6 2c. Model information Model SF 150 SF 500 Temp. range °F -40/-76 -40/-76 Temp. range °C -40/-60 -40/-60 Max. ambient temp. °F Max. ambient temp. °C Power supply (V) Frequency (Hz) AMP (A) Power consumption (KWh/24h) Power (KW/Hp) No. of compressors Refigerant/filling (gram) HC / see label plate HC / see label plate...
  • Page 7 3b. Troubleshooting schedule Problem Cause Recommended Troubleshoo ng Ac on equipment The socket or New fuse / plug. fuse is defect. Check the instal- la on. Repair errors. Con- sider using wiring The unit does not Universal Power cable is defect. Check power diagram sec on 5 freeze and the...
  • Page 8 3b. Troubleshooting schedule Cause Recommended Troubleshoo ng Ac on equipment The compressor The sensor is in- runs constantly. correctly installed. Sensor is defect. The unit freezes Controller is dama- normal or colder. ged. Icing on the frame. Check the door for See sec on 4a.
  • Page 9 Examples of troubleshooting with a manometer connected to the process piping of the cooling sy- stem. The system is blocked: Suction pressure is very low. Pressure equalization takes place very slowly or not at all. Reason: Icing or dirt in the capillary tube or ¿ lter, or blockings in the system due to other reasons. Reason: No compressor capacity The suction pressure is too high.
  • Page 10 3c. Opening of the cooling system To prevent moisture from penetrating under repair, the system must not be open for more than 15 minutes. Prepare spare parts components before the system is opened. The new connector is soldered to a tube with valve. Verify that the new filter packaging is intact and that the filter is not damaged.
  • Page 11 Process pipe and pressure tube fitted with a valve. The cooling system is evacuated with a two-stage vacuum pump for at least 30 minutes. Both from the pressure piping and process piping. Blow the system with nitrogen, both from the suction and the pressure side. 3e.
  • Page 12 Right Wrong In the figure A the capillary tube is correctly installed in a dryfilter. In order to ensure effcient use of the filter, it must be positioned with an inclination of at least 150 and the capillary tube must be underneath. In the figure B the capillary tube is too close too the web of the filter.
  • Page 13 3f. Changing the compressor Evacuate the refrigerant of the system. See section 3d. All tubes are cut with a pipe cutter. Do NOT solder of. When replacing the compressor the dryfilter must also be replaced. See section 3e. The suction and pressure pipes of the compressor must be cleaned and cut with a pipe cut- ter just above the soldering pipe.
  • Page 14 3h. Vacuum suction / Vacuum check A vacuum is made on two locations on the system, one on the process tube and one on the pipe branch used for testing located on the pressure tube with an explosion-proof 2-stage vacuum pump. The pressure should be 2 mBar or lower for at least 12 hours.
  • Page 15 Cylinder with manometer Vacuum suction of the filling hose Loading procedure Make vaccum. See section 3h. The cylinder with manometer is connected to the coupler of the process piping. Remember to first made vacuum in the filling hose to empty it. Fill the refrigerant into the system until the pressure gauge on the pressure tube shows approx.
  • Page 16 3j. Electrical troubleshooting Before starting systematic troubleshooting, check the following: Proper voltage is present. Electrical equipment used, is suitable for the compressor. The wires are properly installed according to wiring diagram. There is no transition between the live parts and ground. Control of the transition to ground.
  • Page 17 3k. Electrical fault - compressor Remove the start relay from the compressor and use an ohmmeter to test the compressor head and start recovery. Connect ohmmeter between the common connector and start winding, then the winding is to debug. See the picture below. Dimensions of the compressor connections to determine whether driving and startwinding are intact.
  • Page 18 3l. Controller - demounting the display Demounting of controlller Dixell XR30CX. The controller is located in the lower right corner on the front of the freezer in a cut-out 29 x 71 cm. Disconnect the power supply. Press the flaps on both sides of the controller. See illustration. Pull back the clips.
  • Page 19 A relay can be checked with an indicator light as shown in the sketch maintain end. The relay is usu- ally ok, when in standing position is not lit, and when it is lit when the relay is upside down. The start capacitor can be checked by injecting the normal voltage for a few seconds and than shorting it.
  • Page 20 3n. Sensor for the controller PT 100 A faulty sensor will typically prevent the compressor from starting. If the sensor is covered with ice, the compressor will run more than usual and cool too much. The easiest way to check the function of the sensor, is to place your hand around the sensor. If the temperature recorded on the display in the front panel does not rise, the sensor is faulty and needs to be replaced.
  • Page 21 3o. Condenser See section 4c. 3p. Fan If the ventilator stops, it can cause insufficient cooling of condenser and compressors. Electrically, the fan is connected to terminal 10 and 14 on the start relay. Physically, the fan is placed in the motor compartment close to the compressor and fixed on the panel with 2 bolts.
  • Page 22 4. Maintenance 4a. Rubber gasket of the lid Rub the gasket with a suitable product, so that it stays flexible and the optimal function and tight- ness is secured. Make sure the lid closes tightly so that no ice forms around the lid frame. Open the lid and place a piece of paper.
  • Page 23 4d. Evaporator The freezer, the lid frame and the sensor must be checked for ice. In case of large ice formation, the freezer must be defrosted. 4e. Manual defrost Remove the contents of the freezer. Unplug the unit. Place a tray under the freezer and remove the plug at the bottom of the freezer. Leave the lid open until the ice can be removed.
  • Page 24 Long pipes can cause resonance vibrations. A rubber strap can assist. See illustration. 4g. Battery backup The battery (6V/1,2Ah) is located in the engine compartment. It has a lifespan of 3 years, but should be checked every six months. Check the voltage with a voltmeter. Backup battery...
  • Page 25 5a. Wiring-diagram External alarm Earth-connection in compressor-compartment Sensor External alarm Sensor Terminal blocks Starting relay...
  • Page 26 5b. Spare parts list SF 150 5108 5605 5606 5682 5950 5901 5052 5902 5056 5763 5000 5052 5401 5971 5450 5716 5970 5040 5715 5451 5871 5402 5683 5684 5821 5713 5788 5787 5712 5004 5850 5812 5005 5837 5999...
  • Page 27 5b. Spare parts list SF 150 Pos. no. t l i 5079007-01 Base plate fittings, set, complete 5030040-01 Drain plug 5000 5004 5053009-01 Double castor 5005 5032002-01 Fixed spanner, 9 mm 5030043-01 Vacuum release knob 5040 5052 5079009-01 Fittings for condenser 5056 5071020-01 Condenser...
  • Page 28 5b. Spare parts list SF 500 5122 5605 5606 5682 5950 5901 5052 5902 5053 5716 5821 5970 5715 5763 5871 5052 5971 5040 5872 5000 5450 5451 5402 5683 5684 5713 5788 5787 5712 5007 5812 5851 5005 5850 5830 5837 5999...
  • Page 29 5b. Spare parts list SF 500 Pos. no. t l i 5079007-01 Base plate fittings, set, complete 5030040-01 Drain plug 5000 5004 5053009-01 Double castor 5005 5032002-01 Fixed spanner, 9 mm 5030043-01 Vacuum release knob 5040 5052 5079009-01 Fittings for condenser 5053 5071018-01 Condenser...
  • Page 30 5c. Compressor data SF 150...
  • Page 32 5c. Compressor data SF 500...
  • Page 34 PR numbers - 2237635 1.2 Relevant identified uses of the substance or mixture and uses advised against: Cooling agent 1.3 Details of the supplier of the safety data sheet: Arctiko A/S Lammefjorsvej 5 DK- 6715 Esbjerg N Phone: +45 70 20 03 28...
  • Page 35 Vapours may cause drowsiness and dizziness Keep container in a well-ventilated place Keep away from sources of ignition -- No smoking Take precautionary measures against static discharges If swallowed, seek medical advice immediately and show container or label CLP: Contains: Ethylene Danger Extremely flammable gas H220...
  • Page 36 Inhalation: Remove victim to uncontaminated area wearing self-contained breathing apparatus. Keep victim warm and rested. Call a doctor. Apply artificial respiration if breathing stopped. Skin contact: In case of contact with liquid spillage – flush with water for at least 15 minutes. Seek medical attention. Eye contact: In case of contact with liquid spillage –...
  • Page 37 6.4 Reference to other sections: Not applicable. HANDLING AND STORAGE: 7.1 Precautions for safe handling: Avoid inhal ation and c ontact m ed skin and eyes . Keep away f rom s ources of i gnition, includi ng electrostatic discharge. Ensure equipment is adequately earthed.
  • Page 38 Flash point: -100 °C (ethylene) Evaporation rate: Not available Flammability: 425 °C (ethylene) Upper/lower flammability or explosive limits: 2,4-36 v/v% Vapour pressure: Not available Vapour density: 0,98 for ethylene (water=1) Relative density: gas. 1 (air=1), liq. 0,57 (water =1) ethylene Solubility(ies): Not applicable Partition coefficient (n-octanol/water:...
  • Page 39 High concentrations may cause asphyxiation. Symptoms may include loss of mobility/consciousness. Victim may not be aware of asphyxiation. Low concentrations may cause narcotic effects. Symptoms may include dizziness, headache, nausea and loss of co-ordination. May course frostbites in case of contact with skin and eyes.
  • Page 40 14.2 UN proper shipping name Hydrocarbon gas mixtures, liquefied, N.O.S. (ethylene, N-butane) 14.3 Transport hazard class(es) 2 (Classification code 3F) 14.4 Packing group Not applicable. 14.5 Environmental hazards The mixture is not an environmental hazard 14.6 Special precautions for user Avoid transport on vehicles where the load space is not separated from the drivers compartment.

  • Page 41: Table Of Contents

    5e. Controller Dixell XR30CX d IX E L Installing and Operating Instructions 1592020530 with EdF=in the defrost is made every “IdF” time, with EdF = “rtc”, the defrost is made in real time depending on the hours set in the Digital controller with off cycle defrost and AUX relay parameters Ld1..Ld6 on workdays and in Sd1…Sd6 in holidays;...

  • Page 42: Parameters

    d IX E L Installing and Operating Instructions 1592020530 Push the key for more than 3 seconds 7. PARAMETERS rtc Real time clock menu: to set the time and date and defrost start time. LED switches ON and the following messages are displayed: REGULATION Hur (hour);...

  • Page 43: Digital Input (Enabled With P3P = N)

    d IX E L Installing and Operating Instructions 1592020530 bLL Compressor off with low temperature alarm of condenser: n = no: compressor 8.1 DOOR SWITCH INPUT (i1F = dor) keeps on working; Y = yes, compressor is switched off till the alarm is present, in any It signals the door status and the corresponding relay output status through the “odc”...

  • Page 44: How To Use The Hot Key

    d IX E L Installing and Operating Instructions 1592020530 13. HOW TO USE THE HOT KEY PTC probe: -50÷150°C (-58÷302°F) Resolution: 0,1 °C or 1°C or 1 °F (selectable); Accuracy (ambient temp. 25°C): ±0,7 °C ±1 digit 13.1 HOW TO PROGRAM A HOT KEY FROM THE INSTRUMENT (UPLOAD) Program one controller with the front keypad.
  • Page 45 d IX E L Installing and Operating Instructions 1592020530 Label Name Range °C/°F Differ. for condenser temp. alar. [0,1°C ÷ 25,5°C] [1°F ÷ recovery 45°F] Condenser temperature alarm ÷ ) . n Delay of cond. temper. alarm at t r a ÷...
  • Page 46 5f. Default settings Label Name Range Set point Pr 1/2 Set point LS-US Differential 0,1-25,5°C/1-225°F Minimum set point (-100°C – SET) (-148°F – SET) Maximum set point (SET – 150,0°C) (SET - 302°F) Thermostat probe calibration -12 - 12°C/-120 - 120°F Outputs delay at start up 0 –...
  • Page 48 WWW.ARCTIKO-INT.COM LAMMEFJORDSVEJ 5 DK-6715 ESBJERG N DENMARK TEL. +45 70 20 03 28 FAX. +45 70 20 03 29 5081517-01-GB WWW.ARCTIKO-INT.COM...
