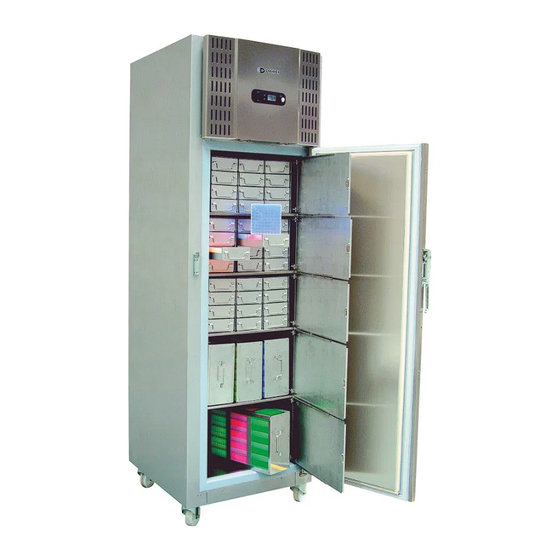

- Page 1 OPERATING INSTRUCTIONS UPUL 580...
-
Page 3: Table Of Contents
INDEX ................PAGE Before using the appliance . -
Page 4: Before Using The Appliance
IMPORTANT Before using the appliance For safety reasons, the instructions should be read before the appliance is commissioned. The operating instructions should always be available and accessible to personnel! Low Voltag Directive 2006/95/EEC. • Electromagnetic Compatibility Directive 2004/108/EEC. • • Only use the freezer for its specific purpose. -
Page 5: Installing The Freezer
Appliance with flammable refrigerant: As the appliance contains a mixture of refrigerants, which are flammable, it is essential to ensure that the refrigerant pipes are not damaged. Operating Instructions For safety reasons these operating instructions should be read before the freezer is commissioned. The operating instructions should always be available and accessible to personnel! The drawings and symbols in these operating instructions are for safety purposes when commissioning and using the freezer. -
Page 6: Before Commissioning
Warning Regulations require that this appliance be earthed: The manufacture declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders. If the socket and plug are not of the same type either the socket or the plug must be replaced by a qualified electrician. -
Page 7: Control Panel
Up, down, left, right button Control Panel (G-210 Controller) to scrolls through the menu On/off or exit menu Enter (accesses the menu, accept) Mute alarm Alarm (red light) Description control panel for user Screen At alarm Main menu Current alarm Non current alarm(s) Temp. -
Page 8: Description Control Panel For Engineer
Description control panel for engineer Screen Main menu At alarm Temp. Last 24H max/min Settings level l password Settings level ll password ll Hysteresis Range Max temp limit 13 Hysteresis Min temp limit The difference between the set point and the temperature that causes the fan and the compressor to restart. -
Page 9: Default Settings
Default settings: Description Arctiko default Customer settings setting 0000 LEVEL I (password) Set point Freezer -8 0 Power failure Freezer High temp ala rm Freezer -6 5 Low temp a larm Freezer -9 0 Door open alarm Freezer Probe/eprom failure... -
Page 10: The Cooling System
The cooling system The vaporiser is built into the shelves of the inner container. They will be approx. -85°C, so there is a risk of frostbite if they are touched. Always use thermal gloves when touching the contents of the freezer. The condenser is placed on top of the cabinet behind the control panel. -
Page 11: Cleaning And Maintenance Of The Freezer
Cleaning and maintenance of the freezer: • Ice will form on the inner doors of the freezer. This ice should be removed with a scraper at regular intervals. (Remember safety gloves). • Ice on the inside of the cabinet should be removed as required. Take the contents out of the freezer. Pull out the plug and leave the door open until the ice can be removed. -
Page 12: Wiring Diagram
Wiring diagram... - Page 16 WWW.ARCTIKO.COM LAMMEFJORDSVEJ 5 DK-6715 ESBJERG N DENMARK TEL. +45 70 20 03 28 +45 70 20 03 29 INFO@ARCTIKO.COM 50 80 014-03-GB WWW.ARCTIKO.COM...
