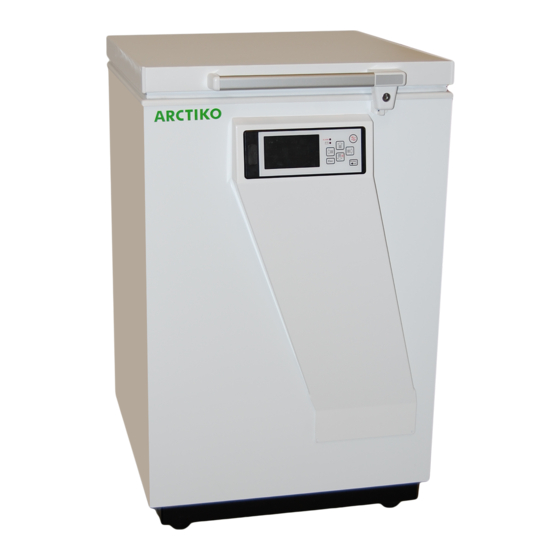

- Page 1 OPERATING INSTRUCTIONS ULTF 80 / 220 / 320 / 420...
-
Page 2: Table Of Contents
INDEX ................PAGE Before using the appliance . -
Page 3: Before Using The Appliance
IMPORTANT Before using the appliance For safety reasons, the instructions should be read before the freezer is commissioned. The operating instructions should always be available to and accessible for the personnel! The appliance concerned complies with the below Directives and standards except as refrigerant amount. -
Page 4: Operating Instructions
Operating Instructions Ultra Low Temperature Freezing Box For safety reasons, these operating instructions should be read before the freezer is commissioned. The operating instructions should always be available to the personnel! The drawings and symbols in these operating instructions are for safety purposes when commissioning and using the freezer. -
Page 5: Before Commissioning
WARNING Regulations require that this appliance must be earthed: The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders. If the socket and plug are not of the same type, please have the plug or socket replaced by a qualified electrician. -
Page 6: Control Panel
Control Panel (G-214 Controller) Alarm (red light) Alarm Battery (red light) On/off or exit menu Up, down, left, right button to scolls through the menu Return Enter (accesses the menu, accept) Mute alarm USB Data download Control Panel Description Push the UP button in order to generate 1. -
Page 7: Setting Icons
Setting icons Custom Settings Custom Settings Advanced Settings Advanced Settings Advanced Service Settings Advanced Service Settings Status Status Change / Reset password Change / Reset password... -
Page 8: Custom Settings
Custom Settings Enter password The menu Custom setting is protected with a password, wich is “0000” to access the menu. Under the menu Setpoint the temperature for the unit will be set. Setpoint Under the menu Alarm Settings the below menu will be avaible. -
Page 9: Advanced Settings
Advanced Settings Enter password The menu Advanced Settings is protected with a password wich is “0000” to access the menu. The menu Calibration is the settings for offset of the tempe- rature in the display. The menu Automatic defrost is the setting of the time where a defrost automatic will be performed on the unit. -
Page 10: Service Settings
Service Settings Under the menu Service, there is information about the unit, which is important for service on the unit. Service The menu Compressor hours shows, how many hours the compressor has run. The menu Fan hours shows, how many hours the fan has run. -
Page 11: Advanced Service Settings
Advanced Service Settings This menu is only used by the service department at the manufacturer. Advanced Service Settings Status The Current alarms shows the alarm, which have been on the unit with data and time. The Temp. last 24 hours shows the temperature of the unit the last 24 hours. -
Page 12: Download And Upload Data
Download Data Place the USB pen drive in the connection on the display and press the button right for read data from the unit to the USB pen. USB connected The Read data will be shown in the display when the data is loading to the USB pen drive. -
Page 13: Alarms On Display
Alarms on display Alarm icons The Door open alarm indicate, that the door is not correct closed The High temperature alarm indicate, that the temperature inside the unit is higher than permitted from setting of the unit. The Low temperature alarm indicate, that the temperature inside the unit is lower than permitted from setting of the unit. -
Page 14: Default Settings
Default settings Description Arctiko default Customer settings settings 0000 Custom Settings (Password) Set point -80,0 Freezer Alarm Settings: Alarm delay Freezer 15 min Door open alarm Freezer Enable High temp. alarm Freezer Low temp. alarm Freezer Probe/eprom failure Freezer Enable... -
Page 15: Relocating Or Moving The Freezer
Relocating or moving the freezer Never leave the freezer to others without instructing these people in its use and the safety regulations described in the operating instructions. Always let an authorised electrician install the freezer. (Remember to wait for one hour before restarting it). ‡... - Page 16 Wiring diagram ULTF 80 PT1000 PT1000 PT1000 PT1000...
-
Page 17: Wiring Diagram
Wiring diagram ULTF 220 100- 240V AC Control box... - Page 18 Wiring diagram ULTF 320 / 420 100- 240V AC Control box...
- Page 20 WWW.ARCTIKO.COM LAMMEFJORDSVEJ 5 DK-6715 ESBJERG N DENMARK TEL. +45 70 20 03 28 +45 70 20 03 29 INFO@ARCTIKO.COM 50 80 010-06-GB WWW.ARCTIKO.COM...
