Summary of Contents for Arctiko CRYO 170-0

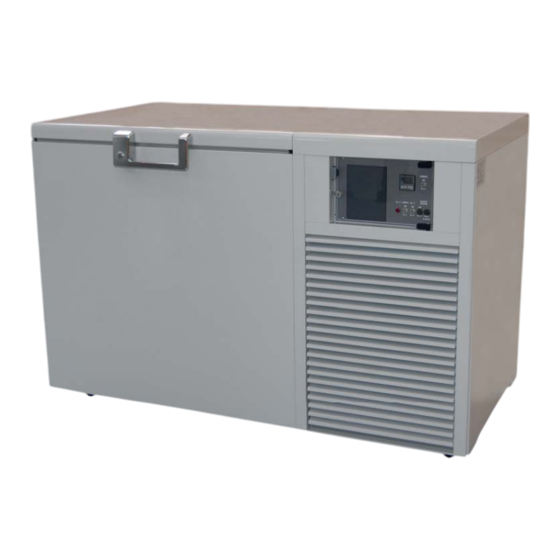

- Page 1 OPERATING INSTRUCTIONS CRYO 170-0 / 230-0...
- Page 2 Notice Please read this user manual before operating or using the product. Be aware of the following warnings and cautions. Ignoring the following warnings and cautions may cause damage to the equipment and/or user injury. The appliance should only be operated after reading the manual, and with the user's due care and discretion.
-
Page 3: Table Of Contents
Contents ■ Before using the appliance …………………………………………………………… ■ Name and function of each part …………………………………………………… ■ Installation …………………………………………………………………………………… ■ Before commissioning …………………………………………………………………… ■ Operation panel ……………………………………………………………………………… ■ Parameter lists ……………………………………………………………………………… ■ Maintenance …………………………………………………………………………………… ■ Trouble shooting …………………………………………………………………………… ■ Moving and Reinstalling ……………………………………………………………………... -
Page 4: Before Using The Appliance
Before using the appliance The marks used in this product and this User Manual refer to the following: Cautionary messages with these marks aim to allow correct and safe use of the product and to prevent any risk and injury of you and other persons. Precautions are described under the categories, ‘Warning’... - Page 5 Warning For correct use Installation should only be performed by a qualified expert from the sales agency or elsewhere. Imperfect installation may result in electric shocks or fire. Place the appliance on a firm and level floor, which can hold the weight of the freezer. Imperfect installation or lack of floor strength may cause the appliance to tilt or fall over, leading to personal injury or damage to the freezer.
- Page 6 Warning For correct use In case of malfunctioning, switch off the appliance, then pull out the power plug or turn the power off at the source. Failure to perform these actions when the appliance shows any signs of malfunction may cause electric shocks or fire. When moving the appliance please consult your sales agency or other qualified experts.
-
Page 7: Name And Function Of Each Part
Name and function of each part Chart Recorder Cooling An evaporater is laid in the inner wall of this freezer. Once it starts operating, frost appears on the interior walls and it cools down gradually. Heat Radiation Heat radiation is performed by the block condenser in the mechanical compartment. While the freezer is cooling down, the block condenser gets hot because of heat radiation. -
Page 8: Installation
Installation Installation should only be performed by a qualified expert from the sales agency or elsewhere. Imperfect installation may result in water leakage, electrical leakage, electric shocks, or fire. Choose an area with low levels of both heat and moisture. The cooling performance of the freezer may be adversely affected if it is placed in direct sunlight or near a source of high temperatures. -
Page 9: Before Commissioning
Before commissioning 1. Install the freezer on a flat and level floor. Install the freezer on a level floor. The front side of the freezer should be approximately 1cm higher than the back side. 2. Clean the inside of the freezer and put the sub-lids. 3. - Page 10 Before commissioning (Make sure to read the following) Warning Make sure that the power plug is cleaned If the surrounding temperature is outside regularly. Always make sure that the plug is the optimum range (5°C~30°C), it may cause breakdown. completely inserted into the outlet. A dusty or dirty plug or incomplete insertion of the Do not use any inflammable spray, such as plug may cause electric shocks or fire.
-
Page 11: Operation Panel
Operation panel (Double Cooling System) Operation Panel Temperature Controller You can control the temperature by setting parameters. 1. Once the freezer is switched on, the initial screen will be displayed for 4 seconds. 2. The controller shows the present value (PV) and set value (SV) Key to set the tem perature. - Page 12 Operation (Double Cooling System) Power Switch When this switch is ‘ o n’ , the display of the temperature controller comes on, and the freezer starts to operate. When it is ‘ o ff ’ the controller display turns off, and the freezer stops its operation. AL-1 (Alarm Switch) If you turn on this switch, the alarm (Beeping sound) goes off in the following cases: The alarm will sound for about 48 hours continuously with charged batteries even when there is no power...
-
Page 13: Parameter Lists
How to change parameter in level set1, set2, set3, set7 1. Press the MODE for 2 sec. 2. Select the desired SET level by pressing the button UP or DOWN 3. Access to the SET level by pressing the MODE button. 4. - Page 14 -180...
-
Page 16: Maintenance
Maintenance Cleaning the freezer Before cleaning the appliance, you must unplug it and take out all the stored materials. Then, open up the door to defrost the appliance. Prepare lukewarm water containing a small amount of neutral detergent. Soak a cloth in the water, wring it out, and clean the door. -
Page 17: Trouble Shooting
Trouble shooting Under no circumstances should the appliance be disassembled, repaired, or converted by unqualified pe ople. Failure to follow these instructions may cause personal injury and/or loss of property due to malfunctions, electric shocks or fire. Should the appliance malfunction, stop the operation, and then pull out the power plug or turn off the power supply at source. - Page 18 The following things do not indicate breakdown You may hear the noise of water flowing. This noise comes from the refrigerant circulating around the cooling system. Even when the compressor is not working, there may be a flowing noise. The external door may become heavier or impossible to open immediately after being shut.
-
Page 19: Moving And Reinstalling
Moving and Reinstalling the Freezer When you need to move the appliance, consult your sales agency or qualified experts. Imperfect reinstallation may cause electric shocks or fire. When you need to move the appliance, make sure not to tilt it or let it fall over. -
Page 20: Ln2 Back-Up - Circuit Diagram
LN2 Back -up (Optional equipment) Circuit Diagram -TA14 Transformer 400/200V 5,3 / 10,1A 3,5kVA H07RN-F 5G2,5mm H07RN-F 5G2,5mm -WD11 -WD14 -XD11 -XD14 1385 Supply 3x230/400V... -
Page 21: Specifications
Specifications Model CRYO 170-0 CRYO 230-0 -150°C / Common use -140°C ~ -150°C -150°C / Common use -140°C ~ -150°C Temperature Capacity External Dimension (mm) W1420×D840×H1090 W1600×D840×H1090 Internal Dimension (mm) W500×D500×H705 W680×D500×H705 Exterior Electro galvanized steel Electro galvanized steel Interior... -
Page 22: Electric Wiring Diagram
Electric Wiring Diagram... - Page 24 WWW.ARCTIKO.COM LAMMEFJORDSVEJ 5 DK-6715 ESBJERG N DENMARK TEL. +45 70 20 03 28 FAX. +45 70 20 03 29 INFO@ARCTIKO.COM 50 80 056-01 WWW.ARCTIKO.COM...
