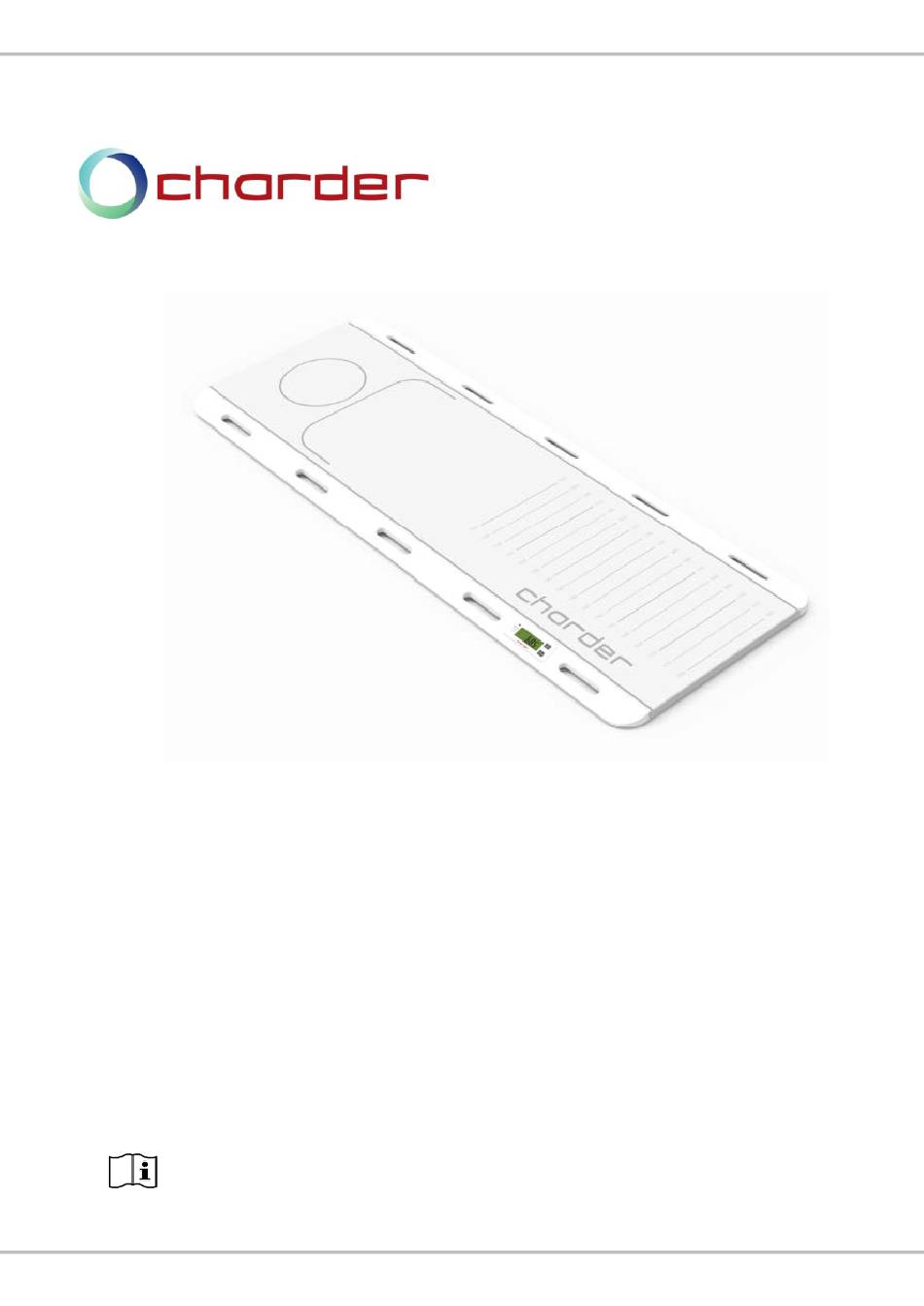

- Page 1 USER MANUAL MS7800 Patient Transfer Scale Please keep the instruction manual at hand all the time for future reference.
- Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to International Organization of Legal Metrology (Class III) requirements Manufacturing year of Indicates that device medical device conforms to 2014/31/EU Non...
- Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......9 II. Preparing to use Device ............13 A. Charging Device ..............13 B. Standard Procedure............13 III. Indicator ................16 A. Key Functions ..............16 B. -
Page 5: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
- Page 7 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty. Disposal This product is not to be treated as regular household waste, but ...
- Page 8 Warning Proper usage of the Patient Transfer Scale. The device should only be used by professionals trained in proper usage. Bed castors should be locked before usage. Distance between beds should be no more than 10cm. At least 20cm of the device should be on trolley and bed.
-
Page 9: Emc Guidance And Manufacturer's Declaration
B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS7800 Patient Transfer Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. - Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS7800 Patient Transfer Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601...
- Page 11 Guidance and manufacturer’s declaration-electromagnetic immunity The MS7800 Patient Transfer Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test...
- Page 12 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS7800 Patient Transfer Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
-
Page 13: Preparing To Use Device
II. Preparing to use Device A. Charging Device Device should be fully charged before first use. Please allow 8 hours for full charge. When low battery indicator on display appears, please charge battery promptly to avoid battery damage. Charging port is located on underside of device. - Page 14 SAFETY RULES 1. Device should only be used by trained professionals 2. Castor wheel brakes on beds should be applied before transfer. 3. Trolley/bed frames should be touching before transfer. 4. There should be no more than 20 cm between beds. At least 20 cm of the device should be on each bed or trolley before transfer.
- Page 15 3. After weight measurement, transfer subject and remove slide sheet.
-
Page 16: Indicator
III. Indicator A. Key Functions Description Power on or power off. When device is on, press and hold for 3 seconds to turn off. Reset the display to 0.0kg / Zero the scale (within ±2% of full capacity) Determine stable weighing value - used when weight is unstable. -
Page 17: Using Device
IV. Using Device A. Basic Operation Switch on the device using key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [ZERO] key to zero the device. -
Page 18: Device Setup
V. Device Setup When device is switched on, press and hold key until appears on display. Press [HOLD] 3 times to enter setup. In device setup: (ZERO): confirm (HOLD): toggle Auto Power-Off: Instruct device to shut off automatically after a certain period of time. -
Page 19: Troubleshooting
Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit. - Page 20 Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key Broken or damaged wires causing short circuit or faulty connection ...
- Page 21 Error Messages Error Message Reason Action Tilt Error Ensure device is as Device is tilted by 3 level as possible degrees or more before use Low battery warning Plug in charger or Voltage of battery is too replace battery low to operate device Overload Reduce weight on Total load exceeds...
-
Page 22: Product Specifications
VII. Product Specifications Model MS7800 Weight Capacity 250 kg x 0.5 kg / 250 kg x 0.5 kg Measurement 550lb x 1lb Accuracy ±0.75 kg ± 1.0 kg / 2.2 lb Unit kg / lb Class OIML Class III LCD Screen 27.7 x 75.0 mm... - Page 23 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
-
Page 24: Declaration Of Conformity
Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-00107 REV XXX 06/2020...
