UG-1820

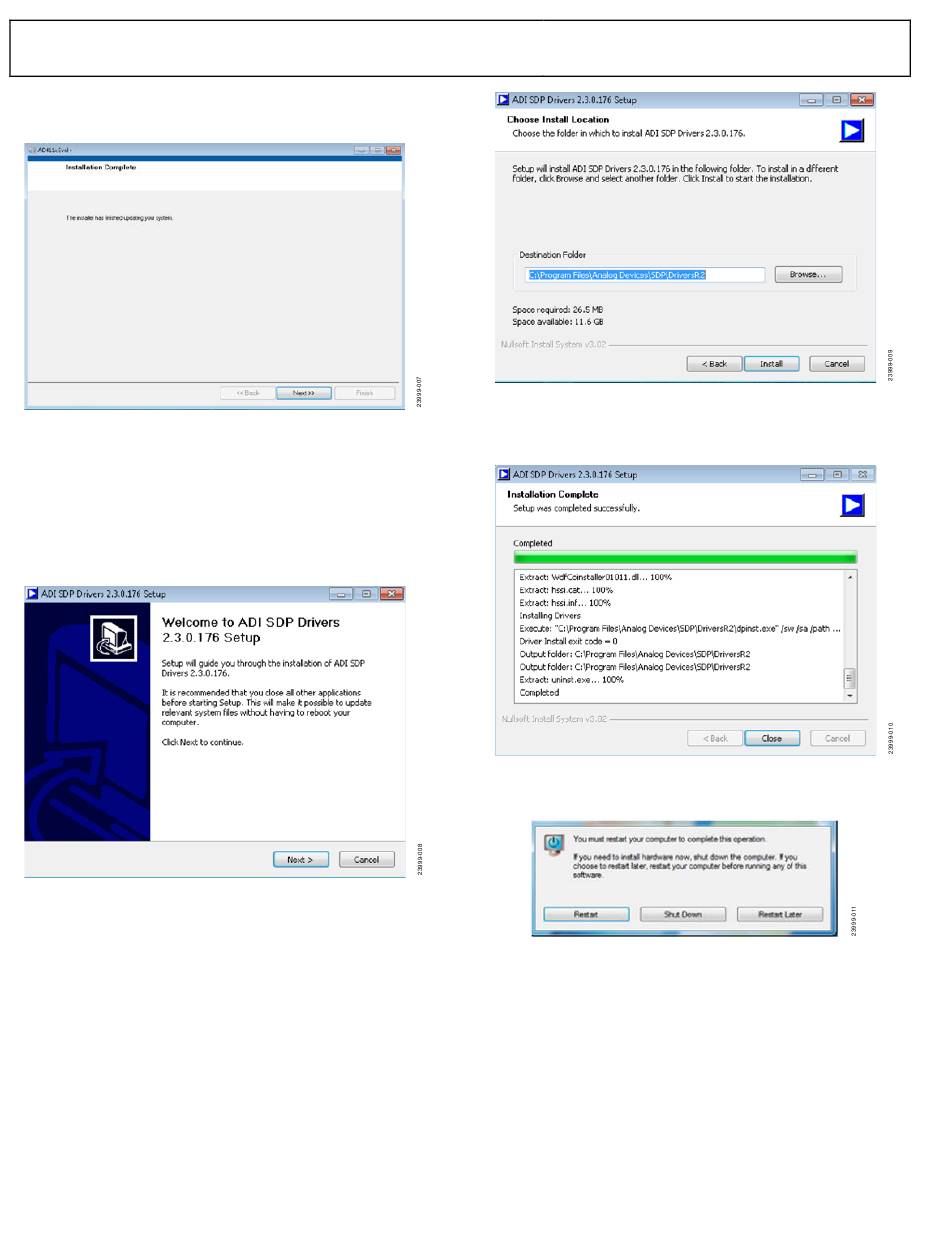

7. The message in Figure 7 appears when the installation is
complete. Click Next.
Figure 7. Indicating When the Installation is Complete
Installing the SDP Drivers
After the installation of the AD411x Eval+
is complete, a welcome window appears for the installation of
the SDP drivers. Take the following steps to install the
drivers:
1. Click Next to proceed with the installation wizard.
Figure 8. Welcome Window for
2. With the SDP board still disconnected from the USB port
of the PC, ensure that all other applications are closed, and
then click Install.
evaluation software
SDP
SDP Drivers Installations
Rev. 0 | Page 8 of 24
EVAL-AD4115SDZ
Figure 9. Beginning the
3. To complete the driver installation, click Close, which
closes the installation setup wizard.
Figure 10. Completing the
4. Before using the EVAL-AD4115SDZ, restart the PC.
Figure 11. Restarting the PC
User Guide
SDP Drivers Installation
SDP Drivers Setup Wizard
