SHOWTEC LED Tunnel Flower Manual page 11

Multiple LED Tunnel Flowers
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. Use a 3-p XLR cable to connect the LED Tunnel Flower.
The pins:

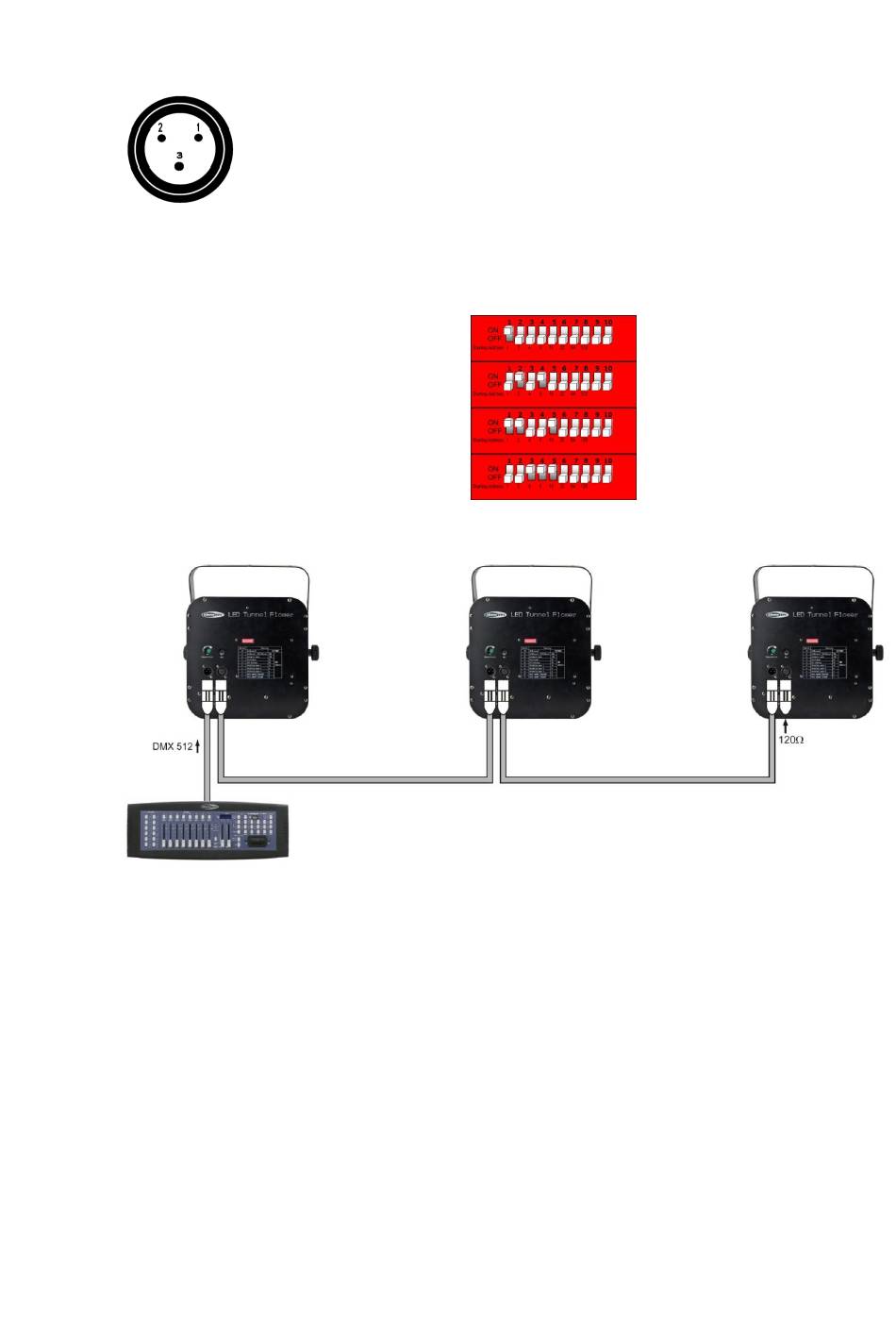

3. Link the units as shown in (Fig. 4), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Set DMX dip switches as follows (See Dip Switch setting page 10).
LED Tunnel Flower
Unit 1
Unit 2
Unit 3
Unit 4
5. Supply electric power: Plug the end of the mains power cord into proper electric power supply sockets.
Do so for all units and the controller.
DMX-Set up
Note : Link all DMX cables and set dip switches before connecting electric power
6. Do not supply power before the whole system is set up and connected properly.
Design your show according to your DMX controller functions.
(DMX control)
1. Earth
2. Signal -
3. Signal +
Address Value
1
10
19
28
DMX Dip Switches "ON"
9
Fig. 4
