SHOWTEC LED Tunnel Flower Manual page 10

One LED Tunnel Flower
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. When the LED Tunnel Flower is not connected by a DMX-cable, it functions as a stand-alone device.
Dipswitch #10 must always be set to ON for manual control.
The LED Tunnel Flower will automatically change its color to the beat of the music. With the Audio
sensitivity control you can adjust its music-sensitivity.
Multiple LED Tunnel Flowers
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. Use a 3-p XLR cable to connect the LED Tunnel Flower.
The pins:

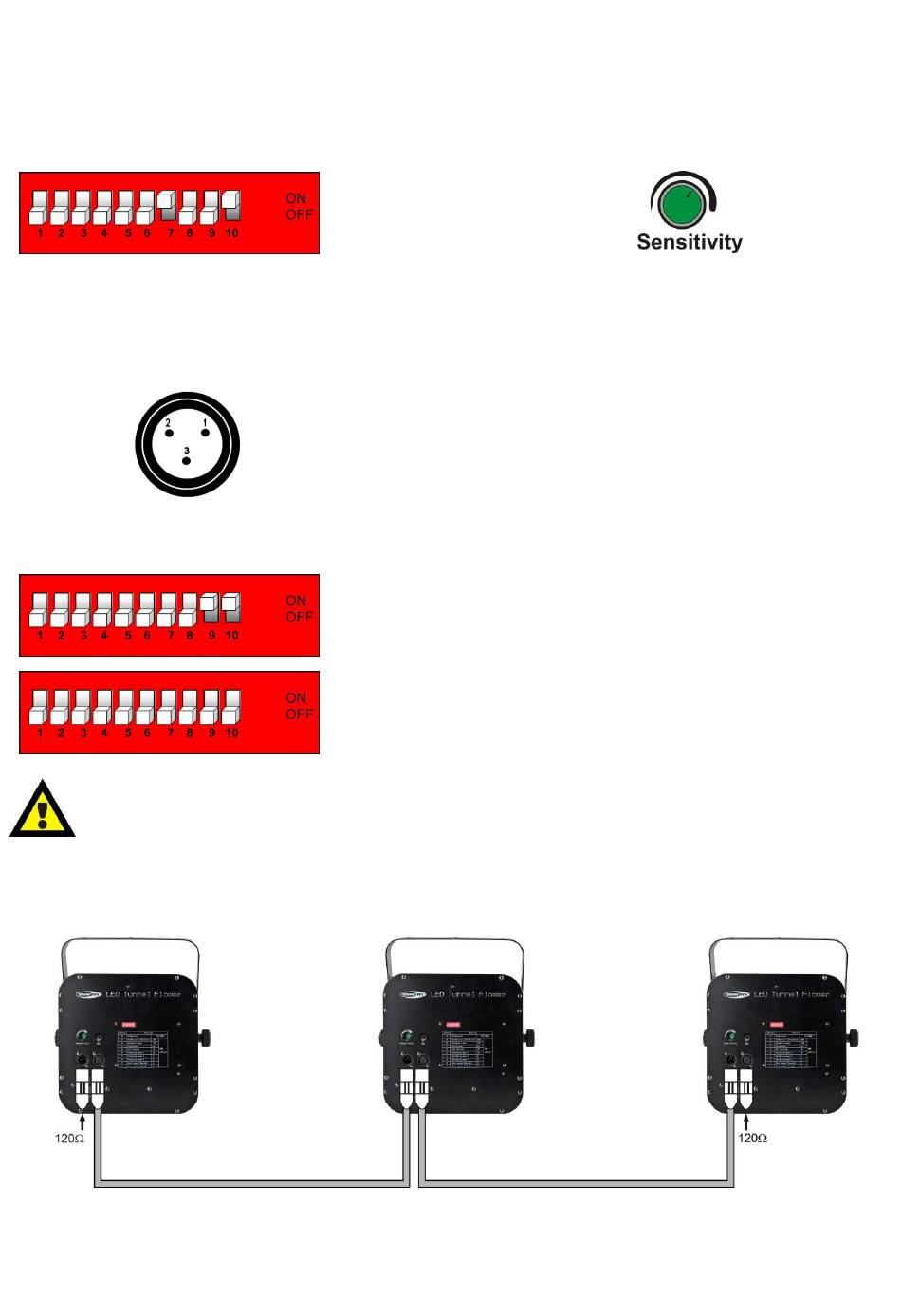

3. Link the units as shown in (Fig. 3), Connect a DMX signal cable from the first unit's DMX "out"
socket to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Set DMX dip switches as follows
You can use the same functions on the master device as described on page 7+8 (Built-in
Programs 1-7, All LEDs ON, Automatic and
This means on the master device you can use Dipswitch #3, #4, #5, #6, #7 and #8 depending on
your desired operation Mode and all slave devices will react the same as the master device.
(Sound control)
Music Control:
(Master/Slave control)
1. Earth
2. Signal -
3. Signal +
Master Control:
Slave Control:
Multiple LED Tunnel Flowers
Dipswitch #7 and #10
Dipswitch #9 and #10
All Dipswitches should be OFF
Music control)
(Master/Slave control)
8
Fig. 3
