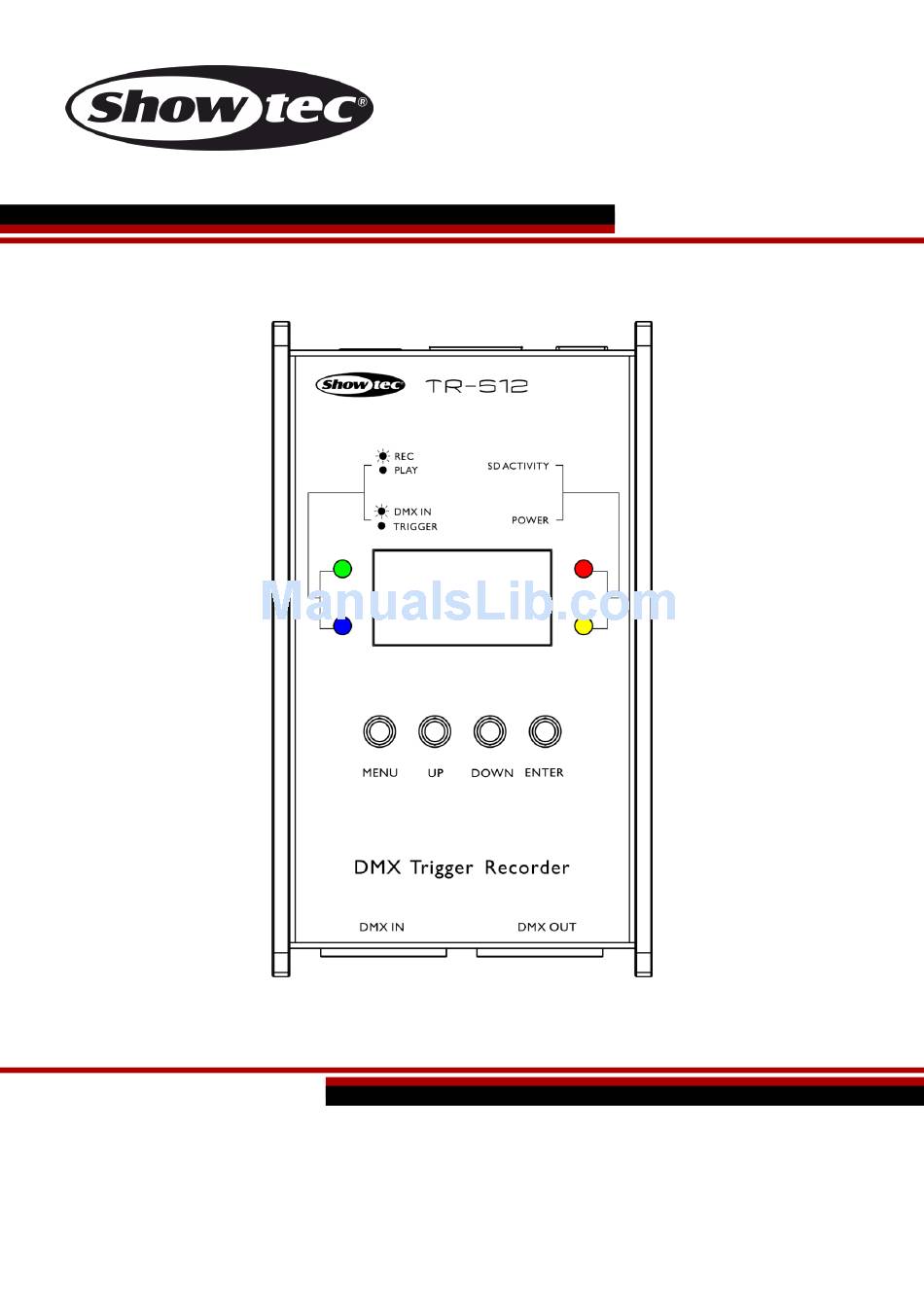

- Page 1 MANUAL ENGLISH TR-512 Ordercode: 50825 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 TR-512 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Installation ................................... 6 Set Up and Operation ............................... 6 Control Modes ................................
-
Page 3: Unpacking Instructions
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec TR-512 ● MicroSD card ●... -
Page 4: Operating Determinations
Never attempt to bypass the thermostatic switch or fuses. ● The user is responsible for correct positioning and operating of the TR-512. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. -
Page 5: Connection With The Mains
TR-512 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK... -
Page 6: Description Of The Device

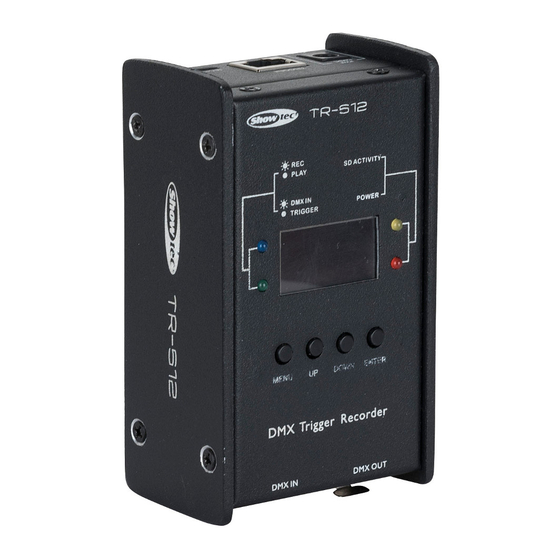

Each show can be played in a loop mode or single play mode. It is also possible to set a delay, which enhances your control of the shows. The TR-512 is suitable for a large range of venues, such as: theme parks, museums, shops and many others. -
Page 7: Set Up And Operation
TR-512 Installation Remove all packing materials from the TR-512. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Data Cabling
You can operate the TR-512 via your light controller. Note: After switching on, the TR-512 will automatically detect whether DMX-512 data is received or not. If there is no data received at the DMX-input, the “LED “ on the control panel will not flash. -
Page 9: Main Menu Options
TR-512 Main Menu Options 01) Upon start-up, the device will show the start screen: 02) If you now press an external trigger button or press the UP/DOWN buttons, the device will show the currently active trigger’s status. Press the UP/DOWN buttons to toggle through the 6 triggers: 03) In order to return to the start screen (from any place in the menu), press and hold down the MENU button for 2 seconds. -
Page 10: Record Show
TR-512 02) Press the UP/DOWN buttons to select SHOW or MODE and press the ENTER button. 03) If you have chosen SHOW, press the ENTER button to open the menu. The display will show the list of all the recorded shows. -
Page 11: Delete Show
TR-512 04) Press the UP/DOWN buttons to select the character which you would like to edit and press the ENTER button. 05) Press (or press and hold down, for quick search) the UP/DOWN buttons to select the desired character and press the ENTER button to confirm your choice. Repeat this step to edit the other characters. -
Page 12: Trigger Event
TR-512 4. Trigger Event In this menu you can set the trigger event settings. It is possible to activate multiple triggers at a time. 01) The display will show: 02) Press the UP/DOWN buttons to select the desired trigger and press the ENTER button to open the desired menu. -
Page 13: Show
TR-512 4.3. Show In this menu you can assign your recorded shows to the desired triggers. 01) Once you have entered the menu, press the UP/DOWN buttons to select the desired show. 02) Press the ENTER button to confirm your choice. -
Page 14: Device Settings
TR-512 6. Device Settings In this menu you can set the device’s settings. 01) The display will show: 02) Press the UP/DOWN buttons to toggle through the 4 available submenus: ● DEVICE LABEL ● DMX PORT OPTION ● DISPLAY OPTION ●... -
Page 15: Display Option
TR-512 6.3. Display Option In this menu you can set the display options. 01) Press the UP/DOWN buttons to select one of the 3 modes: ● MODE: choose between NORMAL (normal view) and INVERSE (display flip). If you have chosen INVERSE, the button functions (MENU/UP/DOWN/ENTER) will flip accordingly, too. -
Page 16: Save Configuration
TR-512 7. Save Configuration In this menu you can create a configuration backup. 01) The display will show: 02) Once you have entered the menu, press the UP/DOWN buttons to select NAME and press the ENTER button to open name edition menu. The display will show: 03) Press the UP/DOWN buttons to select the character which you would like to edit and press the ENTER button. -
Page 17: Load Configuration
06) The display will return to the main menu. The TR-512 should be turned off, before removing the micro SD card. The included micro SD card can be used to back up your data and transfer your files to a regular PC. -
Page 18: Rj45 Connector
(1-6). Make sure that your settings are correct (see 4.4, page 12). Maintenance The Showtec TR-512 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Do not use alcohol or solvents. -
Page 19: Troubleshooting
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the TR-512, as this may damage the unit and the warranty will become void. -
Page 20: Product Specifications
TR-512 Product Specifications Model: Showtec TR-512 Input voltage: 100-240V AC, 50/60 Hz Power supply: 12V DC via the included power adapter, 1500mA Dimensions: 115 x 67 x 45 mm (LxWxH) Weight: 0,4 kg Operation and Programming Signal pin OUT: pin 1 GND, pin 2 (-), pin 3 (+) -
Page 21: Dimensions
TR-512 Dimensions Ordercode: 50825... -
Page 22: Notes
TR-512 Notes Ordercode: 50825... - Page 23 TR-512 Ordercode: 50825...
- Page 24 ©2017 Showtec...
