- Page 1 LED Wash Ultra Bright RGB ORDERCODE 42454...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED Wash Ultra Bright RGB Product Guide ™ Warning.................…...……………..…………………………….………..…. Safety-instructions………………………………………………………………………………………………………… Operating Determinations.…………………………………………………………………………………………….. Rigging.…………………………………………………………………………………………………………………….. Description................…...………………………………………….………..… Features and Overview ………………………………...….……………….………….……….……….……………… Backside…………………………………………………...…...….……………….…………………...….……………… Installation................…...…………………………………………………..….. Set Up and Operation..............……..…………………………………………….… Stand-alone …….…………………………………………………….………………………….…….………………….. Mode……………..…………..…………………………………………………………….……...………………... Dipswitch Setting…………..…………………………………………………………….……...…………………………. Channels……………..…………………………………………………………….……...…………………………. Maintenance...................………..………….…….……………………..…… Replacing the Fuse................…………………….……………………………. Troubleshooting................………………….………………….………………… Product Specifications..............……………….…….…………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
For adult use only. The device must be installed out of the reach of children. Never leave the unit running unattended. The user is responsible for correct positioning and operating of the LED Wash Ultra Bright RGB. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. -
Page 6: Rigging
Always let the installation be carried out by an authorized dealer ! Procedure: If the LED Wash Ultra Bright RGB is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the LED Wash Ultra Bright RGB, with the mounting-bracket, to the trussing system. -
Page 7: Description

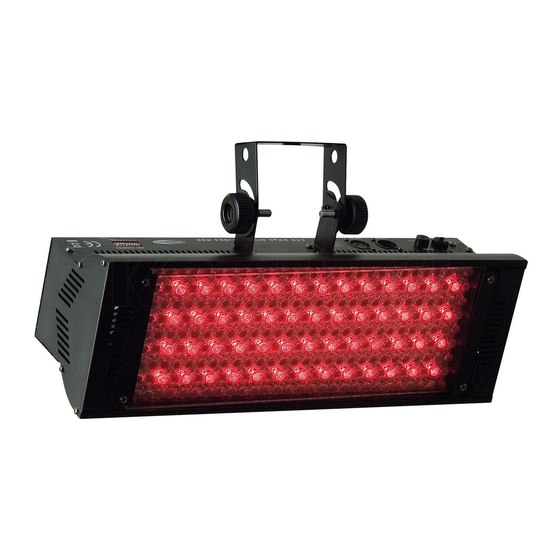

Description of the device Features LED Wash Ultra Bright RGB is a LED system from Showtec. • Ultra bright LED • 252X High Power LED's (52x Red, 116x green and 84x Blue) • Reflected beam angle 18° • LED Lifetime 100.000 hours •... -
Page 8: Backside
Backside Fig. 2 1) Earth 2) Power Cable 3) Fuse 0,5A 4) 3-pin DMX signal connector (IN) 5) 3-pin DMX signal connector (OUT) 6) Dip Switches Installation Remove all packing materials from the LED Wash Ultra Bright RGB. Check that all foam and plastic padding is removed. - Page 9 1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp bolted onto the Showtec LED Wash bracket). Leave at least 0,5 meter on all sides for air circulation. 2. Use a 3-p XLR cable to connect the LED Wash’s and other devices.
-
Page 10: Stand-Alone
FUNCTIONS: There are 4 options for using the LED Wash Ultra Bright RGB: Stand-alone Music-controlled Master / Slave DMX Mode 1. Stand-alone / Master In Stand-alone mode, set all dipswitches to OFF. 2. Sound-controlled In Stand-alone mode, set dipswitch #9 to ON and all other dipswitches to OFF. -
Page 11: Dipswitch Setting
DMX dipswitches. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec LED Wash Ultra, which has 4 channels is as follow: Example... - Page 12 DMX Address Quick Reference Chart Dip Switch Position DMX DIP SWITCH SET 0=OFF 1=ON Dip Sw itch Pos ition DM X Addre s s...
-
Page 13: Dmx Channels
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED Wash Ultra Bright RGB, as this may damage the unit and the warranty will become void. -
Page 14: Product Specification
Product Specification Model: Showtec LED Wash Ultra Bright RGB Power; 34W Power Supply 230V Ac/50Hz Fuse: 0,5A 252 LEDs (52 Red, 116 Green, 84 Blue) Beam angle: 18° LED Lifetime: 100.000 hours Colour mixing system RGB Protocol DMX512: 4 Channels...
