For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!

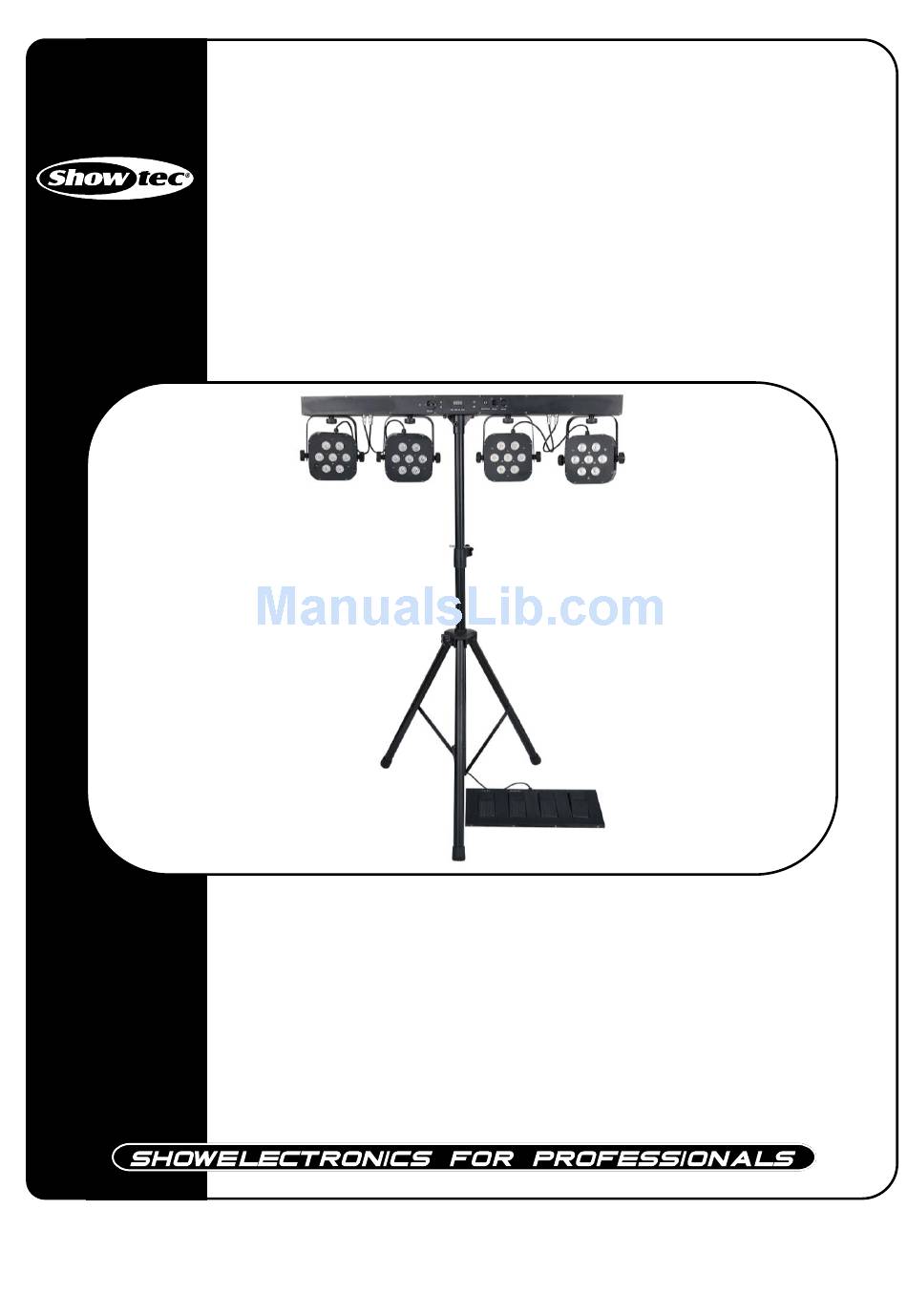

Showtec Showtec Compact Power Lightset Product Guide ™ Warning.................…...……………..…………………………….………… Safety-instructions……………………………………………………………………………………………………… Operating Determinations.…………………………………………………………………………………………... Rigging.…………………………………………………………………………………………………………………... Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….……….. Features and Overview ………………………………...….……………….………….……….……….…………… Set Up and Operation..............……..…………………………………………… Control Modes…………………………………………………………………………………………………….……. One Compact Power Lightset (Built-in Programs, Auto Run, Static Color)…..….………..….………. One Compact Power Lightset (Sound Control)…………………………………………………..………..
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Compact Power Lightset • Stand, T-bar and carrying bag incl. • Footcontroller included •...
Page 5
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
OPERATING DETERMINATIONS This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 0,5 meters. The maximum ambient temperature t = 45°C must never be exceeded.
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Description of the device Features The Showtec Compact Power Lightset is a light effect with high output and great effects. • Power Consumption: 90 Watt • Lightsource: total 28x 3W RGB LEDs (3-in-1) • Ideal for musicians, bands and mobile DJ •...
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Remove all packing materials from the Compact Power Lightset. Check that all foam and plastic padding is removed.
Multiple Compact Power Lightsets (DMX Control) 1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Always use a safety cable (ordercode 70140 / 70141). 3. Use a 3-p XLR cable to connect the Compact Power Lightsets and other devices. 4.
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.
The Compact Power Lightset can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel Fig. 4 A. LCD Display D. Up Button B. CHOOSE button E. Down Button C. ENTER Button DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller.
Main Menu Options Auto DMX address Slave Sound controlled Color Built-in Programs 1. Auto Run Program 1) Press the MODE button on the device, until the display shows 2) With this menu you can set the Auto Mode of the Compact Power Lightset. 3) Press Setup to enter the AUTO Menu.
3. Slave Mode When the display shows : , the device is a slave device. It will now react the same as its master. 4. Sound control Mode 1) Press the MODE button on the device, until the display shows Turn on the music and the Compact Power Lightset will react to the beat of the music.
DMX Protocol The Compact Power Lightset can be operated with a controller in control mode or without the controller in stand-alone mode. DMX Channels 3CH) Channel 1 – Red 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green 0-255 Gradual adjustment Green from 0 –...
Channel 6 – Blue 0-255 Gradual adjustment Blue from 0 – 100% Channel 7 Strobe (Dimmer must be open 0-255 Strobe effect, from slow to fast (0-20 flashes/sec.) Channel 8 – Dimmer intensity 0-255 Gradual adjustment dimmer intensity from 0-100% DMX Channels 14CH) Channel 1 –...
Channel 13 Strobe (Dimmer must be open 0-255 Strobe effect, from slow to fast (0-20 flashes/sec.) Channel 14 – Dimmer intensity 0-255 Gradual adjustment dimmer intensity from 0-100% DMX Channels 2CH) Channel 1 – Colors / Programs No Function 10-19 20-29 Yellow 30-39...
DMX Channels 15CH) Channel 1 – Control / Operating Mode RGB Mode for CH2-15 10-249 Auto Program 250-255 Sound-controlled Channel 2 – Master Dimmer 0-255 Gradual adjustment dimmer intensity from 0-100% Channel 3 – Shutter / Strobe (Dimmer must be open No Function 0-255 Strobe effect, from slow to fast (0-20 flashes/sec.)
DMX Channels 7CH) Channel 1 – Red 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green 0-255 Gradual adjustment Green from 0 – 100% Channel 3 – Blue 0-255 Gradual adjustment Blue from 0 – 100% Channel 4 – Colors / Programs No Function 10-19 20-29...
Channel 7 – Dimmer intensity 0-255 Gradual adjustment dimmer intensity from 0-100% Maintenance The Showtec Compact Power Lightset requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.
Troubleshooting No Light, No Movement - All Products This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps.

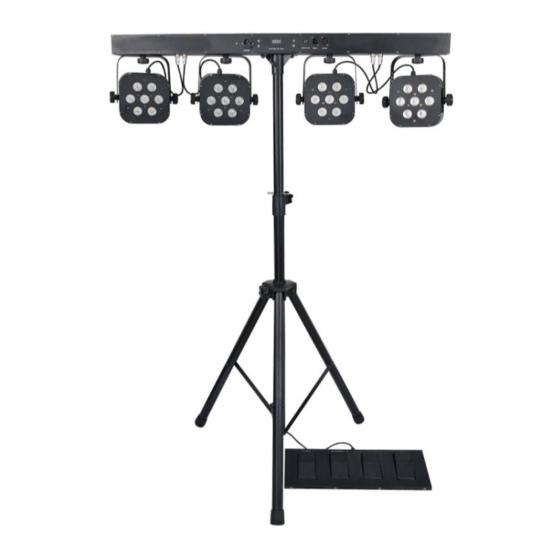

Product Specification Model: Showtec Compact Power Lightset Set contains: 4 LED flat Parcans, 1 Stand + bag and 1 T-bar with built-in controller Weight: 2,84 kg Stand Max. height: 2,00 m Min. height: 1,20 m Weight: 2,92 kg Chase Controller + 4 Flat parcans...
