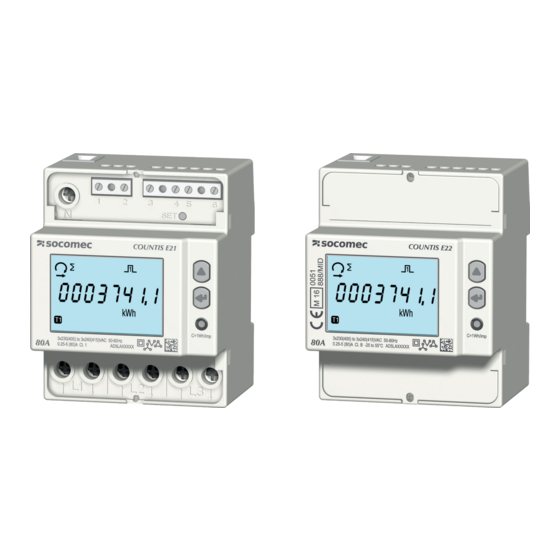

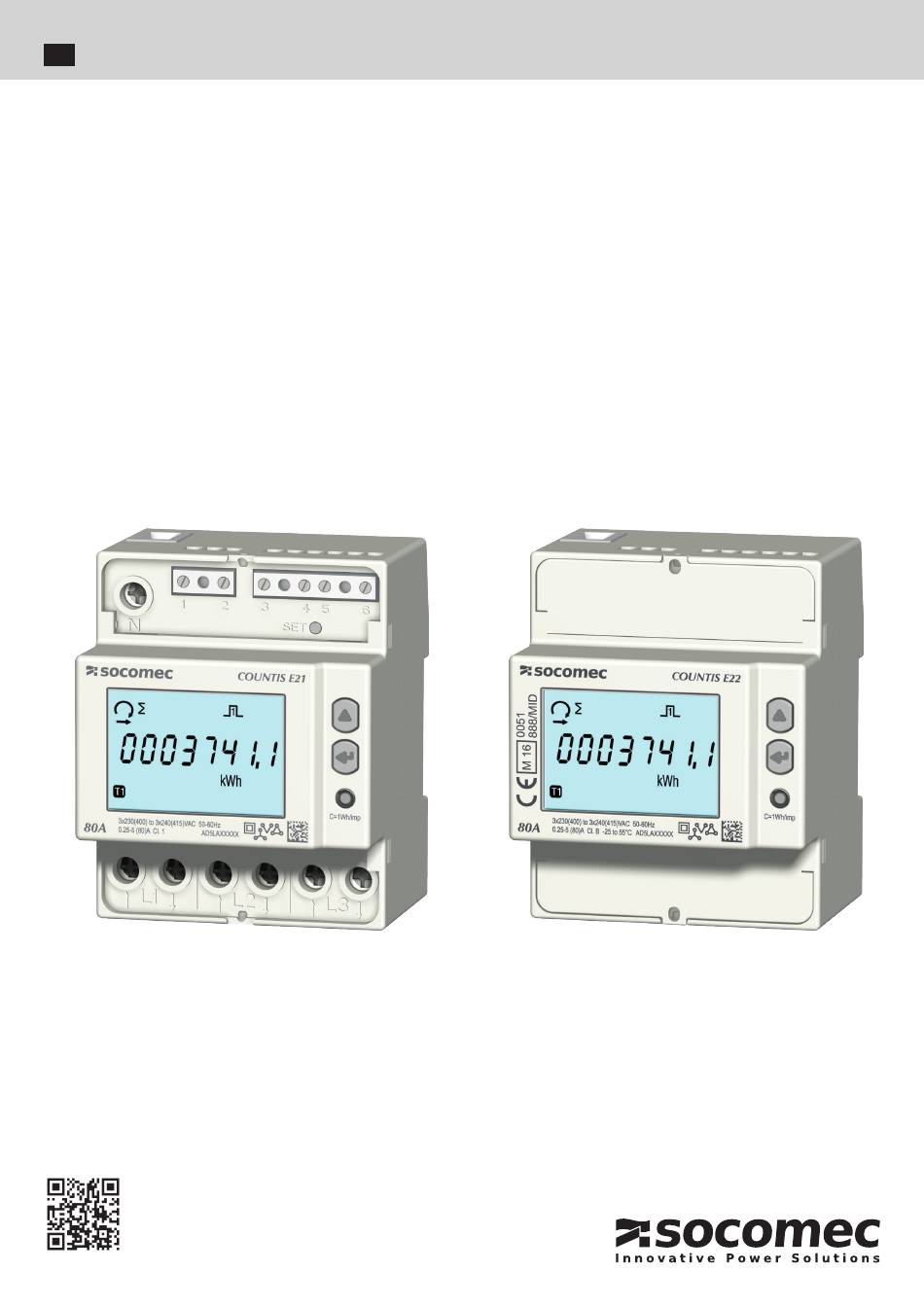

- Page 1 INSTRUCTION MANUAL COUNTIS E21/E22 Three-phase energy meter Direct - 80 A Pulse COUNTIS E21 COUNTIS E22 - MID www.socomec.com/en/countis-e2x...
-
Page 2: Table Of Contents
........... . .27 COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 3: Documentation
1. DOCUMENTATION All documentation on the COUNTIS E21/E22 is available on the website at the following address: www.socomec.com/en/countis-e2x COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 4: Hazards And Warnings
The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualified professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. Risk of electrocution, burns or explosion •... -
Page 5: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 sealing kit (for COUNTIS E22) - 1 Quick Start guide COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 6: Introduction
4. INTRODUCTION 4.1. Introducing the COUNTIS E21/E22 The COUNTIS E21/E22 are modular active and reactive electrical energy meters that displays consumed energy. They are designed for three-phase networks and allows a direct connection of up to 80 A. 4.2. Functions •... -
Page 7: Lcd Display
11. Tariff display 12. Energy balance 13. Inductive value 14. Capacitive value 15. Imported ( ) or exported energy or power ( 4.5. Dimensions Dimensions: in/mm 2.83 2.83 0.24 0.24 1.73 1.73 2.52 2.52 COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 8: Electrical Values Measured
4.6.2. Energy balance; definition Formula (+kWh T1) – (-kWh T1) + (+kWh T2) – (-kWh T2) kvarh (+kvarh T1) – (-kvarh T1) + (+kvarh T2) – (-kvarh T2) COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 9: Installation
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DIN rail mounted The COUNTIS E21/E22 can be mounted on a 35-mm DIN rail (EN 60715TM35). It must be used inside electrical cabinets. COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 10: Connection
Fixed / flexible 0.14 mm -> 2.5 mm 0.27" / 6.9 mm 4.5 lb.in / 0.5 Nm max. Fixed / flexible 1.5 mm -> 35 mm 0.47" / 12 mm 17.70 lb.in / 2 Nm max. COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 11: Connection To The Electrical Network And To The Loads
6.2. Connection to the electrical network and to the loads The COUNTIS E21/E22 are intended for three-phase networks with or without neutral. 3 phases, 4 wires, 3 currents T1/2 Price list 1-2: Switch tariffs: 0 VAC/DC -> Tariff 1 80-276 VAC/DC -> Tariff 2... -
Page 12: Mid Compliance
• Locking the program button Make sure the SET program button is locked after fitting the terminal cover. • MID Declaration of Conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e2x seal COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 13: Configuration
8. CONFIGURATION The device can be configured directly from the COUNTIS E21/E22 screen in programming mode. 8.1. Onscreen configuration From the screen, go to programming mode to reset partial energy to zero. How to browse through the programming mode is... -
Page 14: Detailed View Of Menu "Setup 1
Ea+ partial (kWh) Tariff T1, T2 /60 Hz Ea+ partial (kWh) Ea- partial (kWh) Tariff T1, T2 Ea- partial (kWh) Eap partial (kVAh) Er+ partial (kVarh) Er- partial (kVarh) Return to the first menu screen, "SETUP 2" COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 15: Detailed View Of Menu "Setup 2
8.1.3. Detailed view of menu "SETUP 2" >3s Reset energies Ea+ partial Tariff T1, T2; Ea+ partial; Ea- partial Tariff T1, T2; Ea- partial; Eap partial; Er+ partial; Er- partial Return to the first menu screen, "SETUP 2" COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 16: Use
Go back to first screen, menu and exported screen, menu screen, menu "rt" "tot" reactive energy "info" ______________ Active energy bal- ance ______________ Reactive energy balance ______________ Go back to first screen, menu "Par.b" COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 17: Detailed View Of The Menu For Tariff 1, "Tar.1
Imported inductive reactive energy, tariff 1 Go back to first screen, menu "Tar.1" Exported inductive reactive energy, tariff 1 Imported capacitive reactive energy, tariff 1 Exported capacitive reactive energy, tariff 1 Imported reactive energy, tariff 1 COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 18: Detailed View Of The Menu For Tariff 2, "Tar.2
Imported inductive reactive energy, tariff 2 Go back to first screen, menu "Tar.2" Exported inductive reactive energy, tariff 2 Imported capacitive reactive energy, tariff 2 Exported capacitive reactive energy, tariff 2 Imported reactive energy, tariff 2 COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 19: Detailed View Of The Total Menu, "Tot
L1, L2, L3, ∑ ∑ Total imported inductive reactive energy Go back to first screen, menu "tot" ∑ Total exported inductive reactive energy ∑ Total imported capacitive reactive energy ∑ Total exported capacitive reactive energy ∑ COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 20: Detailed View Of The Menu Showing Partial Readings And The Energy Balance "Par.b
Exported partial active energy for tariff T1 Active energy balance) ∑ Reactive energy balance Exported partial active energy for tariff T2 ∑ Partial exported active energy Go back to first screen, menu "Par.b" ∑ Partial apparent energy ∑ COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 21: Starting Up The Partial Energy Meter
9.4.1. Starting up the partial energy meter Y=OK N=Cancel x1 Confirm 9.4.2. Stopping the partial energy meter Y=OK N=Cancel x1 Confirm 9.4.3. Resetting the partial energy meter to zero >3s Y=OK N=Cancel x1 Confirm COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 22: Detailed View Of The Menu For Realtime Readings, "Rt
L1, L2, L3, ∑ Realtime reactive power Go back to first screen, menu "rt" L1, L2, L3, ∑ Realtime phase/phase voltage ∑ Realtime phase/neutral voltage ∑ Realtime three-phase current ∑ Realtime power factor ∑ COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 23: Detailed View Of The Menu "Info
Non-metrological firmware version Checksum of metrological firmware Checksum of non-metrological firmware Connection type 3 phases, 4 wires, 3 currents 3 phases, 3 wires, 3 currents 3 phases, 3 wires, 2 currents Go back to first screen, menu "info" COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 24: Diagnostics Messages
Solutions Device not working Check the neutral and phase 1 cable connections. Phases not shown onscreen Check the connections Phases reversed onscreen Check the network configuration Error message Check the meter is working OK COUNTIS E21/E22 - 545875B - SOCOMEC... -
Page 25: Characteristics
Reactive Total and partial reading MID metering Bidirectional with three-phase Resolution 10 Wh, 10 varh ENERGY ACCURACY Class B (EN 50470-3) Active energy Ea+ Class 1 (EN 62053-21) Reactive energy Er+ Class 2 (EN 62053-23) COUNTIS E21/E22 - 545875B - SOCOMEC... - Page 26 Modular - width of 4 modules (DIN 43880) 72 x 90 x 64 Mounting On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) Weight 440 g COUNTIS E21/E22 - 545875B - SOCOMEC...
-
Page 27: Glossary Of Abbreviations
Menu for Tariff 2 Total menu PAr.b Partial readings and energy balance menu Realtime values menu SEtuP.2 Setup 2 menu Reset partial energy ConF? Confirm selection Save and exit Exit without saving Continue without saving COUNTIS E21/E22 - 545875B - SOCOMEC... - Page 28 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 545875B...
