  • Page 1 _________ l � -' -------- - - Концентраторы импульсов Socomec Countis ECi2 и Countis ECi3 - руководство по эксплуатации. Юниджет Постоянная ссылка на страницу: https://www.uni-jet.com/catalog/sistemyi-kommutaczii,- kontrolya-i-zashhityi/schetchiki/socomec-countis-ecix.html...

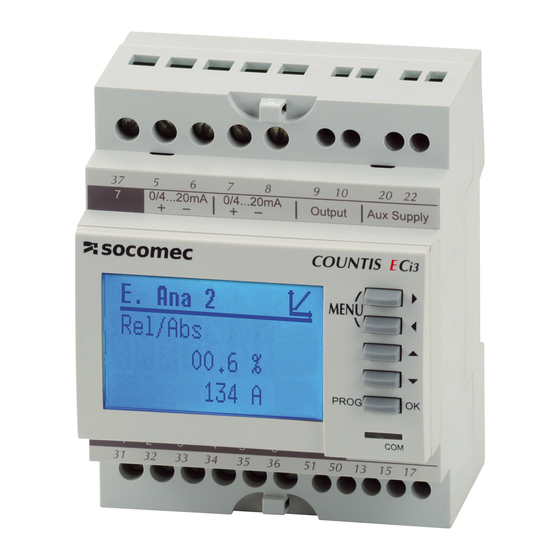

  • Page 2 COUNTIS ECi2 ECi3 Operating instructions Multi-utility pulse concentrator...

  • Page 3: Table Of Contents

    HAZARDS AND WARNING ........3 INITIAL CHECKS ............3 INTRODUCTION ............4 JBUS/MODBUS COMMUNICATION ......6 INSTALLATION ............7 CONFIGURATION ...........10 USE ................11 PROGRAMMING .............12 TECHNICAL CHARACTERISTICS ......13 TROUBLESHOOTING ..........14 COUNTIS ECi - Ref.: 538 470 A...

  • Page 4: Hazards And Warning

    HAZARDS AND WARNING Qualified personnel and correct operation The equipment described in this document may only be installed, commissioned and operated by trained, qualified personnel. Failure to follow the procedures given in these instructions does not imply liability on the part of the manufacturer. Standards, directives, legal provisions and local regulations must be complied with.

  • Page 5: Introduction

    • this COUNTIS to be operated from a PC or programmable logical controller (API/PLC). This product can be configured locally (PROG menu) or by remote communication. The COUNTIS ECi2 has the following functionalities, with direct reading on the display and values saved to memory: •...
  • Page 6 The COUNTIS ECi3 has the functionalities of the COUNTIS ECi2. It also has 2 analogue 0/4-20 mA inputs with the following functionalities: • Instantaneous relative (%) and absolute (in the chosen unit) values,with direct reading on the display, • For each analogue input, it memorises values by integrating them over a programmable interval (from 1 to 60 min in 1 min steps) to reconstitute a load graph, Whatever the chosen integration interval, the "analogue input"...

  • Page 7: Jbus/Modbus Communication

    • Writing (Function 6 or 16), broadcast option at address 0. The communication method is RTU (Remote Terminal Unit) with hexadecimal characters comprising a minimum of 8 bits. JBUS/MODBUS TABLE File Ref: 538471 Can be downloaded from the web site: www.socomec.fr R=120Ω R=120Ω R=120Ω R=120Ω...

  • Page 8: Installation

    INSTALLATION The COUNTIS ECi meter can be mounted on a 35 mm rail (EN 60715TH35). It must be used inside electrical cabinets. Connection  Aux.: 110 … 400 Vac  120 … 300 Vdc  Fus.: 0.5 A gG / BS 88 2A gG ...
  • Page 9 Connecting logical inputs - Internal polarisation, cable length 1000 m max, 1.5 mm² min. - External polarisation, cable length 1000 m max, 1.5 mm² min. Stabilized power supply 10-30 Vdc COUNTIS ECi - Ref.: 538 470 A...
  • Page 10 Connecting analogue inputs (COUNTIS ECi3 version) - Passive sensor 0/4...20mA Passive 0/4...20mA sensor Stabilized power supply - Active sensor 0/4...20mA Active 0/4...20mA sensor COUNTIS ECi - Ref.: 538 470 A...

  • Page 11: Configuration

    CONFIGURATION To enter configuration mode, press the PROG key for 3 sec. You are asked for a code: • Normal user: code 1000 (default value, configurable number): all parameters can be modified EXCEPT those locked by the code 6825. • Advanced user: code 6825 (not configurable): allows access to all parameters accessible with the code 1000, as well as sensitive "maintenance"...

  • Page 12: Use

    COUNTIS ECi - Ref.: 538 470 A...

  • Page 13: Programming

    PROGRAMMING The screens presented in the USAGE/PROGRAMMING charts are not all visible: Hold down for their display depends on the version of your COUNTIS ECi and their configuration. 3 seconds. Modification with Modification with code 1000 code 6825 Pulse meter, logical Currency setting Logical output setting: Typical setting:...

  • Page 14: Technical Characteristics

    - Electromagnetic Compatibility Directive, no. 2004/108/EC (2004/12/15) (WEEE directive, 2002/96/EC). Please refer to the standard terms of sale - Low Voltage Directive, no. 2006/95/EC (2006/12/12) of Socomec for more information on the method for disposing of this product. Device fully protected with double insulation.

  • Page 15: Troubleshooting

    Check configuration in MANUAL mode: address, speed, parity, stop bit (p.12) and cabling (p.6). For more information on the RS485 connection procedure, refer to the technical bulletin available on the web site: www.socomec.fr • The meter does not advance incrementally Poor connection.
  • Page 16 F - 67235 Benfeld Cedex - FRANCE Tél. +33 (0)3 88 57 41 41 - Fax +33 (0)3 88 74 08 00 scp.vex@socomec.com www.socomec.com This document is not a contract. SOCOMEC reserves the right to modify features without prior notice in view of continued improvement.

This manual is also suitable for:

Countis eci3
