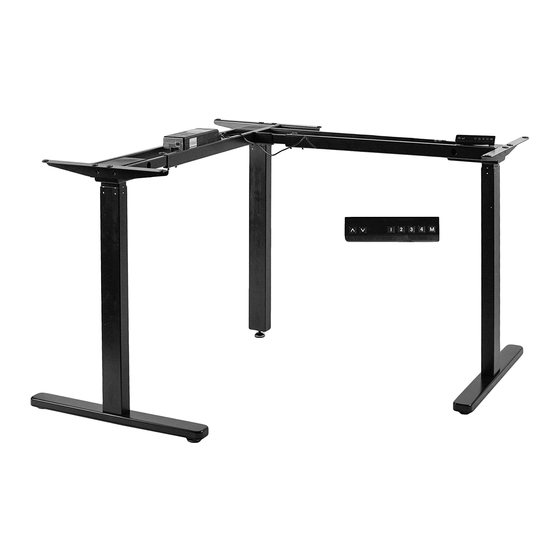

Black electric multi motor corner desk frame
Hide thumbs Also See for DESK-V123EB:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Black Electric Multi Motor Corner Desk Frame
Instruction Manual
SKU: DESK-V123EB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v123eb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V123EB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo DESK-V123EB

Summary of Contents for Vivo DESK-V123EB

  • Page 1 Black Electric Multi Motor Corner Desk Frame Instruction Manual SKU: DESK-V123EB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v123eb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Electrical Safety Instructions

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.

  • Page 3: Tools Needed

    TOOLS NEEDED Phillips Screwdriver Drill DO NOT EXCEED WEIGHT CAPACITY. 264lbs Failure to do so may result in serious injury. (120kg) ASSEMBLY STEPS STEP 1 STEP 2 Mount the center crossbar (6) and an inner Assemble an outer crossbar (5) and inner crossbar (4) to the third motorized leg (2) using crossbar (4) to x2 of the motorized legs (2) using x2 M6x12 flat head bolts (C) for each crossbar,...
  • Page 4 STEP 3 Attach a side bracket (1) to each motorized leg (2) using x2 M6x12 flat head bolts (C) for each. Tighten with the 4mm Allen wrench (A). Mount the feet (3) to the motorized legs (2) using x4 M6x35 bolts (F) for each and tighten with the 5mm Allen wrench (A).
  • Page 5 STEP 5 Slide the outer extension crossbar (7) and inner extension crossbar (8) onto the crossbars of the third leg, then assemble to the extension connector (9) using x2 M6x12 bolts (B) for each crossbar and tight- en with the 4mm Allen wrench (A). Adjust the frame size to fit the desktop, and tighten x8 M6x12 bolts (B) into the underside of the outer crossbars using the 4mm Allen wrench to secure.
  • Page 6 STEP 7 Place the desktop on the assembled frame. Drill 10mm deep pilot holes using a 1/8” (3mm) drill bit, and secure using x16 M5x16 screws (E). If using a 2-section desktop, secure sections using the connecting plates (14) with x8 M5x16 screws (E). Tighten all screws with a Phillips screwdriver. Mark screw locations for the control unit (11) and controller (12), making sure the controller cable is able to reach the control unit, then drill 10mm deep pilot holes using a 1/8”...
  • Page 7 CAUTION! Do not exceed desk Keep area of vertical Keep weight on desk Leave enough slack in weight limit. motion free of balanced for correct cables to allow for full obstacles. operation and longer range of vertical motion. life of components. Failure to follow these instructions may result in property damage and/or personal injury.
  • Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
