Vivo DESK-V122EB Instruction Manual

Vivo DESK-V122EB Instruction Manual

Electric dual motor desk frame
Hide thumbs Also See for DESK-V122EB:
Table of Contents

Advertisement

Quick Links

Download this manual
Electric Dual Motor
Desk Frame
SKU: DESK-V122EB/EW
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/desk-v122eb

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V122EB and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo DESK-V122EB

Summary of Contents for Vivo DESK-V122EB

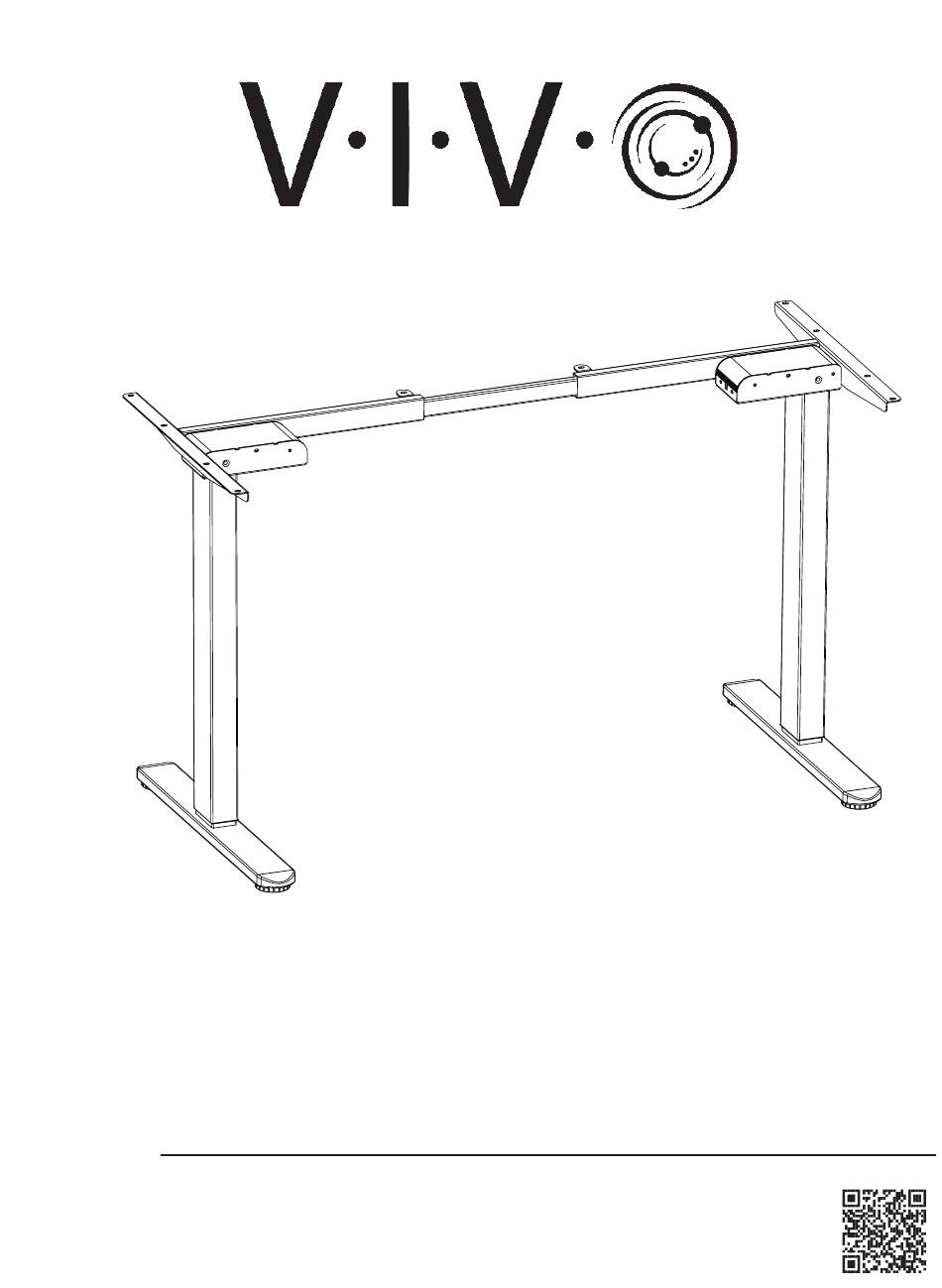

  • Page 1 Electric Dual Motor Desk Frame SKU: DESK-V122EB/EW Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-v122eb...
  • Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product technicians to...
  • Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts.
  • Page 4 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...

  • Page 5: Desk Frame Assembly

    User Guide Desk Frame Assembly pg.8-12 Control Panel Instructions Operating/Overview pg. 13-15 Troubleshooting pg. 16...

  • Page 6: Package Contents

    Package Contents A (x1) B (x1) C (x2) Left Crossbar Right Crossbar Foot D (x2) E (x2) F (x1) Side Bracket Inside Bar G (x1) H (x1) I (x1) Extension Cable Control Panel AC Adapter J (x2) Cable Clip...

  • Page 7: Included Hardware & Tools

    Included Hardware & Tools T-A (x1) S-A (x22) S-B (x14) 5mm Allen Wrench M6x11mm Screw M5x15mm Screw Tools Needed: Phillips Drill Screwdriver Weight Capacity: 176lbs (80kg)
  • Page 8 ASSEMBLY STEPS STEP 1 Attach Crossbars (A,B) to Legs (D) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-A). Turn Leg Assemblies upside down and install Side Brackets (E) to Legs using M6x11mm Screws and 5mm Allen Wrench.
  • Page 9 STEP 2 Connect Feet (C) to Legs (D) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-A).
  • Page 10 STEP 3 Insert Inside Bar (F) into Left and Right Crossbars (A,B). Adjust frame to the desired length, then insert M6x11mm Screws (S-A) into Left and Right Crossbar. Tighten using 5mm Allen Wrench (T-A). DO NOT EXTEND CROSSBARS PAST MAX LINES Be careful not to extend the Crossbars (A,B) past the Max markings when adjusting for your desktop.
  • Page 11 STEP 4 Place assembled frame upside down on desktop (not included). Secure using M5x15mm Screws (S-B) and secure Control Panel (H) using M5x15mm Screws and drill. Tighten with Phillips screwdriver.
  • Page 12 STEP 5 3.1 Connect AC Adapter (I), cable from closest Leg (D), 3. 1 and Extension Cable (G) to Control Panel (H). 3.2 Connect Extension Cable to cable from furthest Leg. 3.3 Remove protective film from Cable Clips (J). 3.4 Apply Cable Clips to desktop to aid in cable organization.
  • Page 13 Controller Overview & Troubleshooting...

  • Page 14: Controller Manual

    Controller Manual Standard Operation LED Panel Displays current height setting. Up Arrow Press and hold to raise the desk. Release when desired height is reached. Down Arrow Press and hold to lower the desk. Release when desired height is reached. Memory Settings Use these settings to save and return to your desired height.

  • Page 15: Advanced Programming

    Advanced Programming Change Displayed Unit (UN) Long press the button until the screen shows , then release button. Short press again and the screen will display Short press to select. Use the arrow keys to switch between (metric) (imperial/inches). Short press to save your selection.

  • Page 16: Troubleshooting

    Desk is Overheated: Allow motor to cool for 15 minutes before resuming use. If error persists, please contact our Product Support Team at 309-278-5303 or help@vivo-us.com for further assistance Weight Capacity Exceeded: Alarm will sound if weight capacity is exceeded.
  • Page 17 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
  • Page 18 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative individuals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...

  • Page 19: Need Assistance

    Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <...
  • Page 20 LAST UPDATED: 12/30/2024 REV4.1LF v5.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...

This manual is also suitable for:

Desk-v122ew
