UTV/Rockcrawler Quad Camera and DVR Monitor
Please read thoroughly before starting installation and check that kit contents are complete.

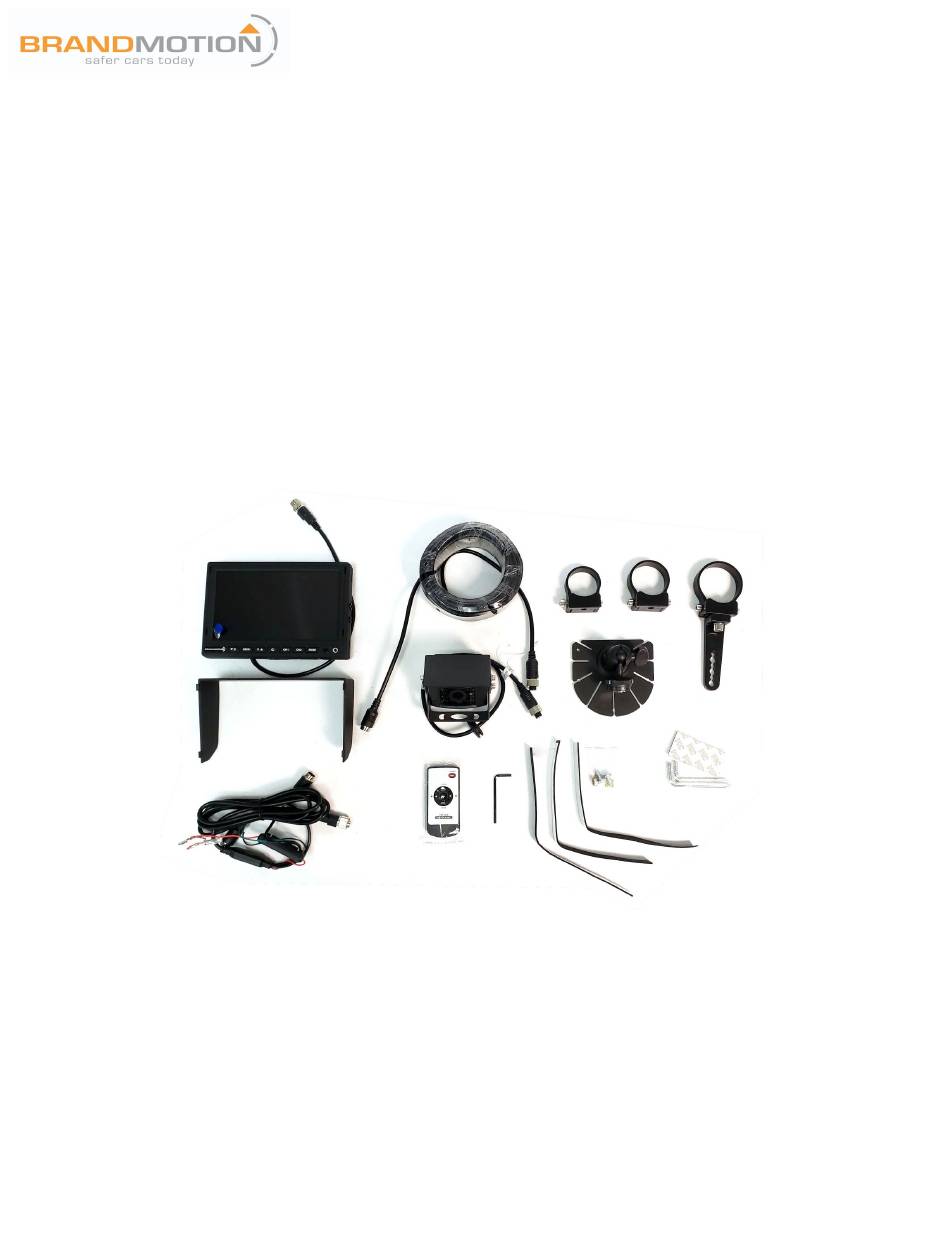

Items Included in the Kit:
Roll Bar Mounts (1.5" 1.75" 2")
7" Screen Monitor
IR Remote
Monitor Sun Shade
Rear Infrared Camera W/Extension cable
Miscellaneous Parts Package
Safety Precautions:
Work in well ventilated area that is clear of obstructions.
●
Secure vehicle with tire chucks in both front and rear of tires.
●
Turn vehicle accessories OFF and ensure ignition key is in OFF position.
●
Wear safety goggles and snug fitting clothes.
●
SUTV-1010V2 7-16-20
I NSTALLATION INSTRUCTIONS
(Kit #SUTV-1010V2)
Tools & Supplies Needed:
Plastic Trim Removal Tool
Phillips Screwdriver
Center Punch/Scribe Tool
Power Drill
1/2" Drill Bit
Wire Ties
Soldering Iron & Solder
(Recommended)
Tape or Heat Shrink Electrical Tubing
Page 1 of 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BrandMotion SUTV-1010V2
Summary of Contents for BrandMotion SUTV-1010V2
- Page 1 I NSTALLATION INSTRUCTIONS UTV/Rockcrawler Quad Camera and DVR Monitor (Kit #SUTV-1010V2) Please read thoroughly before starting installation and check that kit contents are complete. Items Included in the Kit: Tools & Supplies Needed: Roll Bar Mounts (1.5” 1.75” 2”) Plastic Trim Removal Tool 7”...
- Page 2 ● NOTE: We strive to provide accurate and up-to-date installation instructions. For additional assistance please call Brandmotion Technical Assistance at (734) 619-1250 then dial 2. Rear Camera Installation: 1. Remove the 4 Allen screws that are located on the sides of the camera. Then remove the camera mounting bracket and visor.
- Page 3 Also needs the composite video output cable ran to Video inputs on monitor. (1-3). Can be hooked up to desired orientation on video screen. All outside connections please use supplied heat shrink as to not VOID WARRANTY. SUTV-1010V2 7-16-20 Page 3 of 3...
