Jeep Wrangler Rear Vision Camera for Smittybilt 2743 Tire Carrier

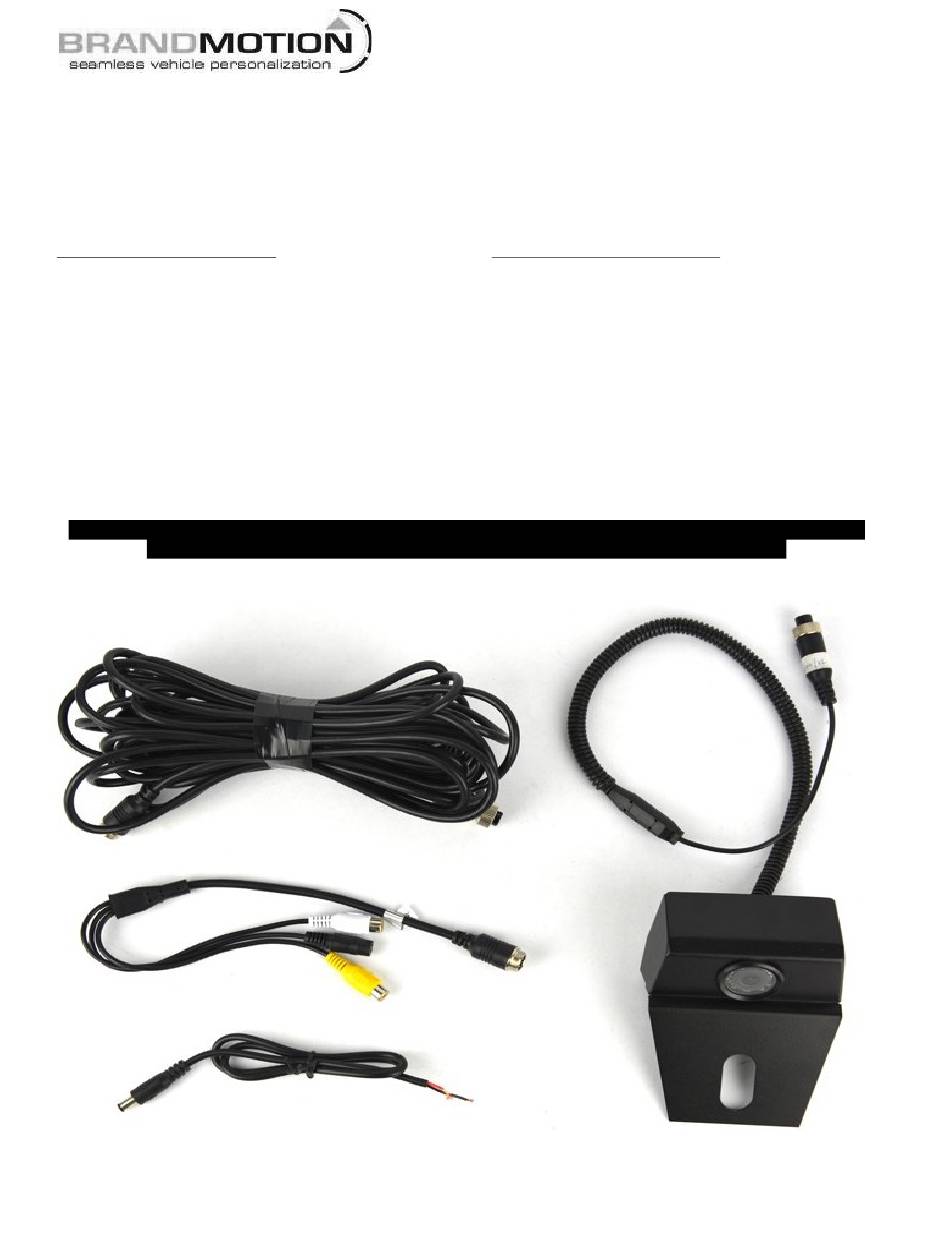

Items Included in the Kit
Camera Mounted to Tire Carrier Bracket
Chassis Harness (23' length)
Power Harness
4-pin to RCA Harness
These Instructions
NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color
instructions, as well as an installation video, please visit www.brandmotion.com
9002-8808.docx
2007-2018 JK
(Kit # 9002-8808)
Required Tools & Supplies
T15 & T20 Torx Bits
7mm & 10mm Sockets
Phillips Screwdriver
Plastic Trim Removal Tool
Soldering Iron, Solder, & Heat Shrink Tubing
(RECOMMENDED) or T-taps as an alternate
splicing method
Electrical Tape
Page 1 of 6
INSTALLATION INSTRUCTIONS
JM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BrandMotion 9002-8808
Summary of Contents for BrandMotion 9002-8808
- Page 1 (RECOMMENDED) or T-taps as an alternate splicing method Electrical Tape NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color instructions, as well as an installation video, please visit www.brandmotion.com 9002-8808.docx Page 1 of 6...
- Page 2 Step 3: Using a plastic trim removal tool, remove interior panels on inside of rear gate. Step 7: Use a T20 Torx bit to remove subwoofer box. (If equipped.) 9002-8808.docx Page 2 of 6...
- Page 3 Step 13: Remove rubber bin insert from top of dash. Step 10: Pull out subwoofer box slightly to gain access to run Chassis Harness along existing harness Step 11: Pull back carpet and continue running Chassis Harness forward. 9002-8808.docx Page 3 of 6...
- Page 4 Step 15: Using a plastic trim removal tool, remove window switch panel. Step 19: Remove (2) 7mm bolts on both sides of the steering column. Step 16: Disconnect harness from window switches. Step 20: Remove center stack/cluster surround. 9002-8808.docx Page 4 of 6...
-
Page 5: Installation Instructions
Splice Black Ground to Black/White Step 27: Put the supplied camera mount on to the wire. RECOMMENDED: Use solder and cover with heat factory tire hold down piece. shrink tubing or use T-taps as an alternate connection method. 9002-8808.docx Page 5 of 6... - Page 6 Step 31: Reassemble vehicle. Follow your disassembly steps in reverse order, taking care not to bind the harness wiring when reinstalling trim. 9002-8808.docx Page 6 of 6...
