Jeep Wrangler Adjustable Rear Vision Camera,

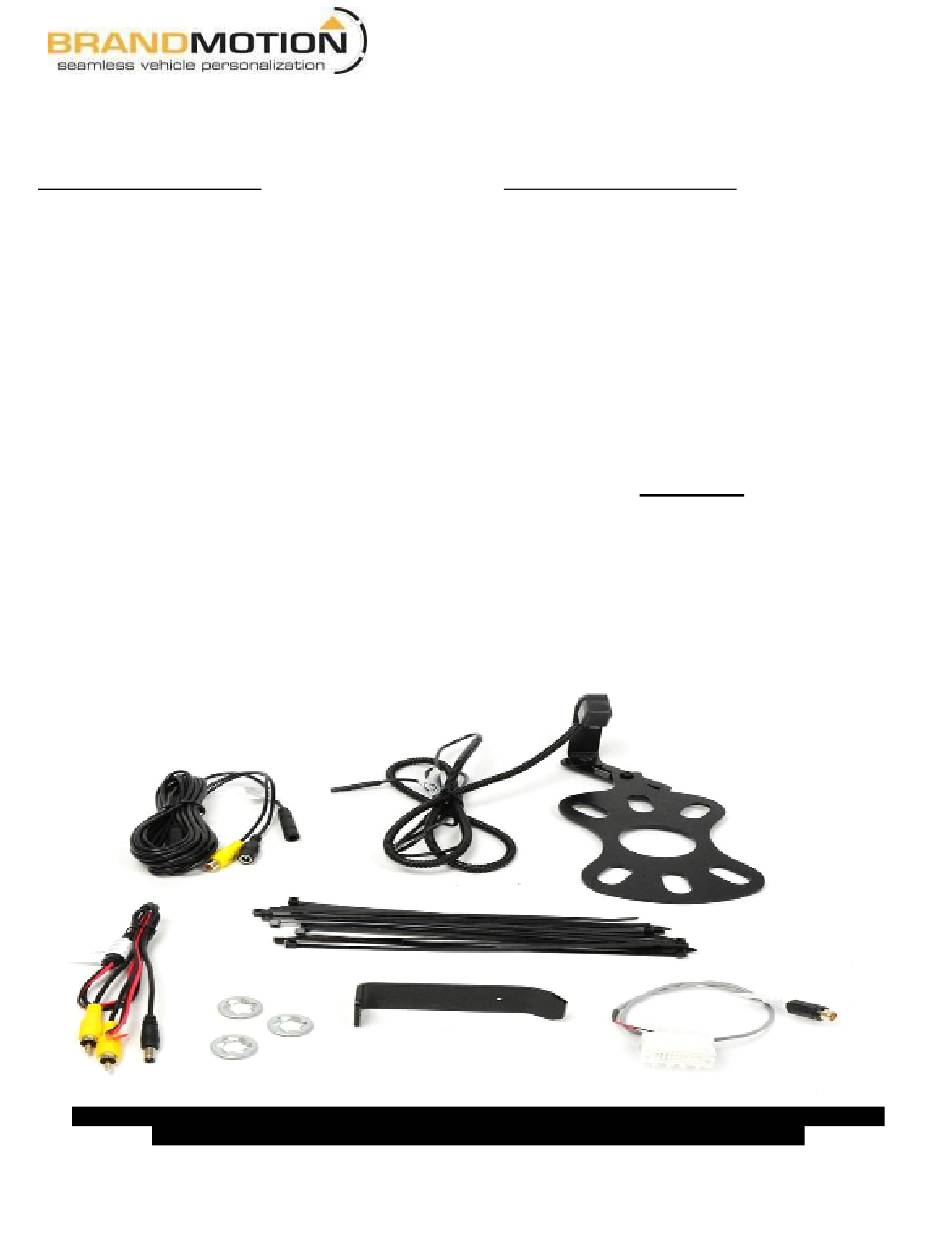

Items Included in the Kit
Camera
Chassis Harness
Power Harness
22--pin white connector w/ video RCA (for factory
display radio)
Zip lock bag with 15 Wire Ties & 3 Push Nuts
Camera Extension Bracket
These Instructions
Please read so you do not V OID the
If the camera harness is run through the center on the
camera bracket, it will cut the camera harness. This will
NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color
instructions, as well as an installation video, please visit www.brandmotion.com
9002-8848 Instructions 6-10-19
2007 – Current (Kit # 9002-8848)
warranty:
void the warranty on the camera.
INSTALLATION INSTRUCTIONS
Required Tools & Supplies
T15 & T20 Torx Bits
7mm & 10mm Sockets
Phillips Screwdriver
3/8" Wrench or Socket Drive
Plastic Trim Removal Tool
Soldering Iron, Solder, & Heat Shrink Tubing
(RECOMMENDED) or T-taps as an alternate
splicing method
Electrical Tape
7
Page 1 of
KB
Advertisement
Related Manuals for BrandMotion 9002-8848
Summary of Contents for BrandMotion 9002-8848
- Page 1 This will void the warranty on the camera. NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color instructions, as well as an installation video, please visit www.brandmotion.com 9002-8848 Instructions 6-10-19 Page 1 of...
-
Page 2: Install Camera
Bracket is shipped in factory wheel configuration. Note: Short Bracket has been designed for Factory offset wheels. Use the Long Bracket for wheels with larger offsets. Step 4: Remove spare tire and slide (3) supplied Push Nuts on the studs. 9002-8848 Instructions 6-10-19 Page 2 of... - Page 3 Step 9: Use supplied Wire Ties to secure Chassis Harness to existing harness. Step 7: Using a plastic trim removal tool, remove interior panels on inside of rear gate. Step 10: Use supplied Wire Ties to secure Chassis Harness to existing harness. 9002-8848 Instructions 6-10-19 Page 3 of...
- Page 4 Step 13: Using a plastic trim removal tool, pry off rear seat belt closeout. Step 14: Using a plastic trim removal tool, remove rear access panel to expose 10mm bolt, and remove bolt. 9002-8848 Instructions 6-10-19 Page 4 of...
- Page 5 Step 19: R emove 7mm bolt . Step 20: Using a plastic trim removal tool, remove window switch panel. Step 23: Remove driver knee bolster cover. Step 21: D isconnect harness from window switches. 9002-8848 Instructions 6-10-19 Page 5 of...
- Page 6 Step 33: Connect male RCA of camera into female Step 27: U sing a plastic trim removal tool, remove RCA of jumper harness and proceed to the Dealer HVAC panel. Programming Instructions (Included). 9002-8848 Instructions 6-10-19 Page 6 of...
- Page 7 Default setting is mirror image display for rearward facing camera (rear view) installation. To change to non mirror image for forward facing camera (front view) connect the two white wires near the end of the camera harness. 9002-8848 Instructions 6-10-19 Page 7 of...
