Snap-In Lip Mount CMOS Camera with Optional Grid Lines
Please read thoroughly before starting installation and check that kit contents are

Items Included in the Kit:

Camera
Hole Saw for camera mount
Chassis Harness
Power Harness
These Instructions with Template

Safety Precautions:

• Work in well ventilated area that is clear of obstructions.
• Secure vehicle with tire chucks in both front and rear of tires.
• Turn vehicle accessories OFF and ensure ignition key is in OFF position.
• Wear safety goggles and snug fitting clothes.
• Use tools only for their intended purpose and which are in good repair.
• Only perform this task if confidence, skill, and physical ability permit.
NOTE: We strive to provide accurate and up-to-date installation instructions.
Step 1: Determine Camera location. Place
template in desired position to confirm fitment.
(IMPORTANT: Some states prohibit items blocking
the license plate; check local authorities to confirm
legal status for your application).

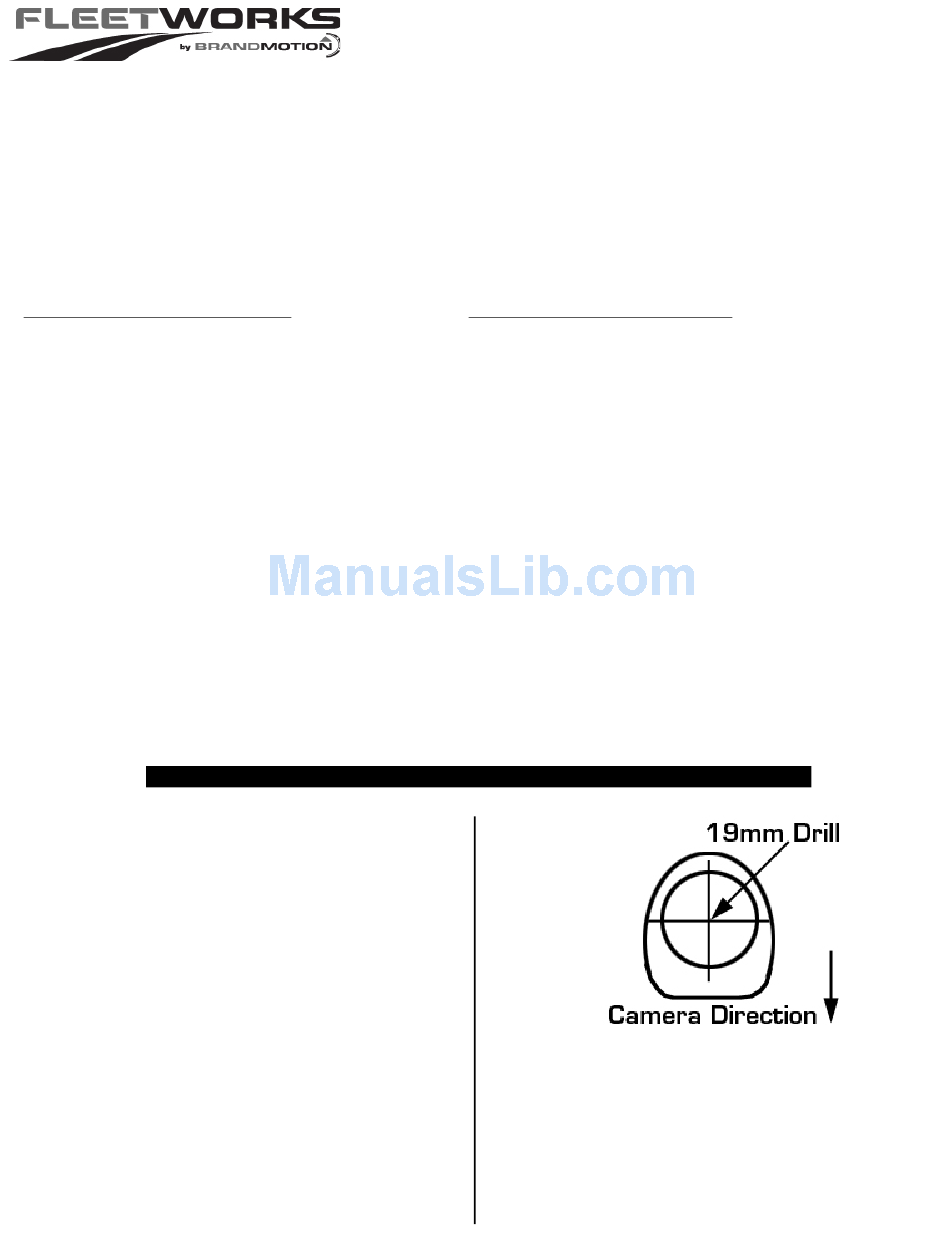

Step 2: Mark Camera location with supplied
template, Center Punch the mark, and use
supplied 19mm Hole Saw to drill Camera
mounting hole. NOTE: If your vehicle has a
liftgate panel/ trunk trim cover, it must be
removed.
7603 Instructions 5-29-14.doc
(Kit # FLTW-7603)
complete.
Tools & Supplies Needed:
¼" Drill Bit (If Needed)
Center Punch
Power Drill
Wire Ties
Electrical Tape or Heat Shrink Tubing
Plastic Trim Removal Tool
Soldering Iron & Solder
Small grommet or Silicone (If needed)
Vehicle service manual (If needed)
Step 3: (If necessary) Use a ¼" Drill Bit to
make a pass through hole in any obstructing
panel for the Camera Harness connector.
Page 1 of 3
INSTALLATION   I NSTRUCTIONS
(Recommended)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLEETWORKS FLTW-7603 and is the answer not in the manual?

Questions and answers

Summary of Contents for BrandMotion FLEETWORKS FLTW-7603

  • Page 1 INSTALLATION   I NSTRUCTIONS Snap-In Lip Mount CMOS Camera with Optional Grid Lines (Kit # FLTW-7603) Please read thoroughly before starting installation and check that kit contents are complete. Items Included in the Kit: Tools & Supplies Needed: Camera ¼” Drill Bit (If Needed) Hole Saw for camera mount Center Punch Chassis Harness...
  • Page 2 INSTALLATION   I NSTRUCTIONS Step 4: Insert connector end of the Camera Harness through the hole(s) you drilled. RECOMMENDED: Protect Camera Harness from any sharp metal edges by applying a small amount of silicone caulk or a rubber grommet (shown below) to any area that may come into contact with metal.
  • Page 3 INSTALLATION   I NSTRUCTIONS                               C AMERA   O PTIONS Step 14: (If necessary) Adjust camera aim. Reposition camera to the desired viewing angle.
