Summary of Contents for BrandMotion ADAS+ ADAS-1100

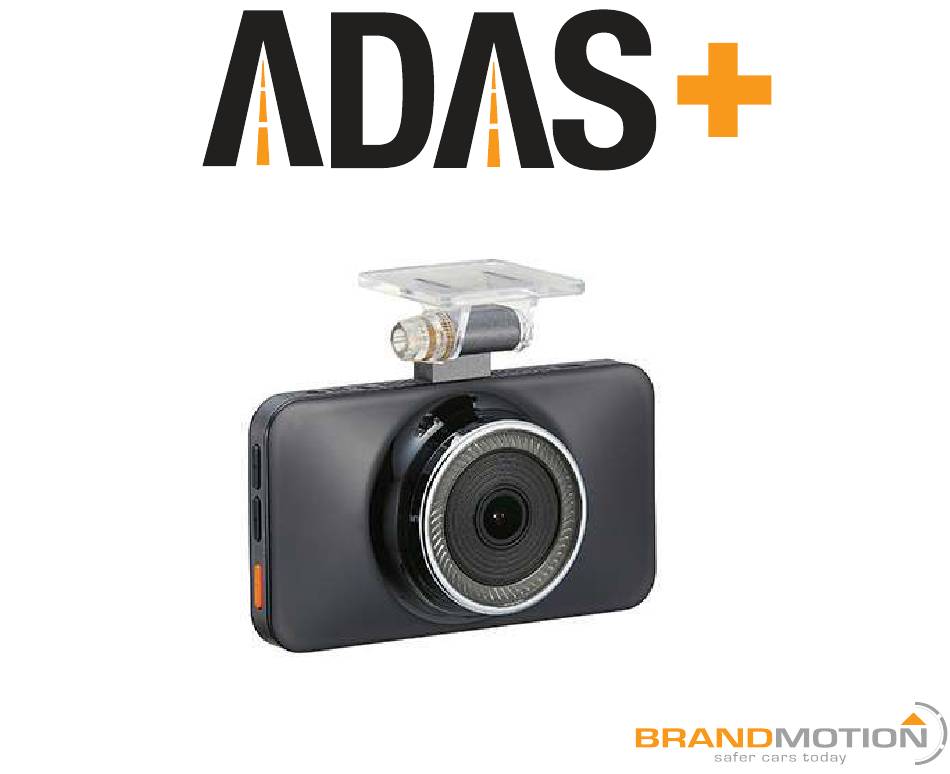

- Page 1 ADVANCED DRIVER ASSISTANCE SYSTEM Part Number: ADAS-1100...
- Page 2 A DA S- 1100 M A NUA L ADAS Cam [ADAS]or Advanced Driver Assistance System is an advanced safety assist system that can help a driver to avoid or mitigate accidental collisions. ADAS functions are designed to assist the driver. However, it is not a substitute for careful driving, and we take no responsibility for any damage caused by careless driving.
-
Page 3: Table Of Contents
A DA S- 1100 M A NUA L Contents Safety Caution Menu Guide • Warning • Basic Menu • ADAS Setup • Caution • DVR • Video Playback • Configurations • Vehicle Settings Accessories & Functions • Basic / Option Data Manager Program •... -
Page 4: Safety Caution
A DA S- 1100 M A NUA L Safety Caution [Warning!] Severe injuries or damages can be caused if the user does not follow instructions. Do not use modified power-supply cables, use Do not change settings while driving as it may only genuine products supplied by the cause traffic accidents. -
Page 5: Caution
A DA S- 1100 M A NUA L [Caution!] If the user does not comply with manual instructions, it may cause injuries or property damages. Do not connect cable wires randomly as it may Do not remove SD card when the product is cause product or vehicle damages. - Page 6 A DA S- 1100 M A NUA L Safety Caution [Caution!] If the user does not comply with manual instructions, it may cause injuries or property damages. ADAS functions are designed to assist the driver. Tinted windscreens will affect the brightness and However, it is not a substitute for careful driving, and definition of recorded videos.
-
Page 7: Accessories & Functions
A DA S- 1100 M A NUA L Basic and Optional Accessories [Basic] Main Body Micro SD 6P Mount Type A : Mini External Card (32GB) USB-Cigar Jack [Optional] OLED Display Vibrator Secondary SD Card Wi-Fi Dongle Camera (32-128GB) The specifications of the above accessories are subject to change without prior notice. -
Page 8: Main Body
A DA S- 1100 M A NUA L Basic and Optional Accessories [Main Body] Front Camera (FHD) Touch LCD Screen USB Port Volume Adjustment [+] Secondary Camera Ø2.5 (External Wi-Fi Connection) Volume Adjustment [-] External GPS Ø3.5 Micro-SD Card Socket Recording Button Power Port (Mini-USB Type) Bracket... -
Page 9: Secondary(Extra) Camera
A DA S- 1100 M A NUA L Basic and Optional Accessories [Secondary Camera] The user can set the specific installation location of Rear Camera • Secondary Camera. Integral Bracket A 5m power cable is provided. DC Power Port • DC Power Cable... - Page 10 A DA S- 1100 M A NUA L [HUB and Connection Pin map] • Display and vibrator can be connected to Hub. Display Comm Vibrator Main Body Vehicle Display Comm Vibrator Product Display External Vibrator Hub Cable Vehicle Cable Module Communic- ation Port (RS232 or TTL)
-
Page 11: Product Installation
A DA S- 1100 M A NUA L Product Installation [Precautions] • Install the product when parked on flat ground with the power turned off • When installing in passenger vehicles, avoid installing in a place where it interferes with movement of the rear mirror •... - Page 12 A DA S- 1100 M A NUA L Product Installation • If the calibration is not done on flat ground, ADAS functions may not perform properly. Ensure to calibrate camera when parked on flat ground. Correct Angle Adjustment : The horizon guideline matches with the actual horizon. Incorrect Angle Adjustment : The horizon guideline is above the actual horizon Incorrect Angle Adjustment :...
- Page 13 A DA S- 1100 M A NUA L [Installation option | Type A - Cigar Jack Connection Method] * Should be installed in a professional installation shop * The following instruction shows how to install the main body and essential accessories. Please read carefully before attempting to install.
- Page 14 A DA S- 1100 M A NUA L [Installation option | Type B - Direct connection method] * Should be installed in a professional installation shop * This instruction shows how to install the main body and basic accessories. Please read carefully before attempting to install. Installation Notice ! Make sure to connect product and cable when •...
- Page 15 A DA S- 1100 M A NUA L [Installation option | Type C - Hub Connection method] * Should be installed in a professional installation shop * This instruction shows how to install the main body and essential accessories. Please read carefully before attempting to install. Installation Notice •...
-
Page 16: Secondary Camera
A DA S- 1100 M A NUA L Product Installation [Secondary Camera Installation] Caution! • Ensure to connect the ! Ensure to connect the secondary camera after secondary camera turning off the power of the main body. The after turning off main secondary camera may not be sensed if it is body connected when the main body power is ON. - Page 17 A DA S- 1100 M A NUA L [Calibrate camera angle for proper ADAS performance] Drive 40km/h for 30 Notes: seconds on the road with clear lane ! During calibration, the left and right lane markings markings on the straight road should be visible. ! To calibrate at high accuracy, it is After lane detection, recommended to drive on the flat and straight...
-
Page 18: Main Functions
A DA S- 1100 M A NUA L Main Functions FCW | Forward Collision Warning The FCW function monitors the driving lane and generates a warning signal when there is a risk of a collision with the vehicle (including a two-wheeled motor vehicle) in front. •... - Page 19 A DA S- 1100 M A NUA L SDA | Safe Distance Alert The SDA function notifies you to keep a safe distance with the vehicle (including a two-wheeled motor vehicle) in front. • Notifies the driver if a safe distance to the vehicle in front is not maintained •...
- Page 20 A DA S- 1100 M A NUA L Main Functions LDW | Lane Departure Warning The LDW function generates a warning signal if you unintentionally depart from the driving lane. • The LDW warning can be generated when unintentionally changing lanes. If the vehicle turn indicator is connected, it will only give warnings when changing lanes without turning indicator light ON.
- Page 21 A DA S- 1100 M A NUA L FCDA | Front Car Departure Alert The FCDA function informs you of the movement of the vehicle in front when your vehicle is stationary. • If the vehicle in front starts moving, it instantly notifies the driver. •...
- Page 22 A DA S- 1100 M A NUA L Main Functions PCW | Pedestrian Collision Warning The PCW function gives a warning signal if a possible collision with a pedestrian ahead is detected. • Pedestrians on the urban road or in crossroad can be detected. •...
- Page 23 A DA S- 1100 M A NUA L VB | Virtual Bumper The VB function generates a virtual bumper length in front of your vehicle; if the vehicle in front is sensed within the virtual bumper range, a beep sound will be generated. •...
- Page 24 A DA S- 1100 M A NUA L Main Functions DVR | Driving Video Recorder 1. The DVR function records videos in Full HD. 2. Types of Recordings Continuous Recording: generates a video file every 60 seconds and saves in the Normal folder of SD card. 2) Automatic Event Recording: records video data automatically into the Event folder when an impact is detected 30 seconds of Event: previous 10 seconds / afterward 20 seconds *Driving over a speed bump, utility hole or uneven road at high speed may also be recorded as Event files.
-
Page 25: System Start
A DA S- 1100 M A NUA L System Start [Booting up] When power is applied, the intro loading screen will appear. Logo Screen Loading Screen *If the system is connected to B+ of the vehicle, the system will restart when turning on vehicle IG. -
Page 26: Screen Menus
A DA S- 1100 M A NUA L System Start [Screen Menus | Live View Mode] Video is being recorded Safe distance alert time is indicated if a front vehicle is detected Vehicle speed Horizontal Guide Line Calibration completed Lanes are detected when driving over operation start speed. The violated lane direction will turn Red. - Page 27 A DA S- 1100 M A NUA L [Screen Menus | ADAS Display Mode] • In the live -view mode, touch LCD screen to switch to ADAS display mode. • Indications LDW: If the driving lane is detected, the lane icon will turn Green, and the violated direction of icon will turn Red.
-
Page 28: Menu Guide
A DA S- 1100 M A NUA L [Basic Menu] The User can choose to enter into each setup menu. • The Basic Menu will appear when pressing the home button of LCD. • Press each icon to enter into each corresponding menu. 1)ADAS: Turn ADAS functions ON/OFF and configure operations 2) DVR: Change settings of recording mode and format SD card 3) Play Video: Check and play recorded files... - Page 29 A DA S- 1100 M A NUA L [ADAS Setup] In the ADAS setup menu, the user can change settings of ADAS functions in detail. 1) Operation Settings Turn each ADAS function ON/OFF. 2) SDA • Operating Start Speed: press the Left / Right arrow to change - adjustable from 20 to 80(km/h) •...
- Page 30 A DA S- 1100 M A NUA L [DVR] In the DVR setup menu, the user can configure recording operations. 1) Basic Setup • Continuous Recording function can be turned ON/OFF. (If OFF, only Event files can be recorded.) • Voice recording can be turned ON/OFF. (If OFF, video sound will not be recorded.) •...
- Page 31 A DA S- 1100 M A NUA L 4) SD Card Data Format • Delete all the data stored in Micro SD to maintain the system. *Critical event files should be stored separately before SD card data format. *SD card data format must be done in Configuration menu or PC management program.
- Page 32 A DA S- 1100 M A NUA L Menu Guide [Configuration] In the Configuration menu, the system operation settings can be changed. 1) Volume Control • Speaker Volume Adjustment: the speaker volume can be adjusted. (0 to 15 • MIC Volume Adjustment: the MIC input volume can be adjusted. (0 to 15) 2) Auditory Warning Setup •...
- Page 33 A DA S- 1100 M A NUA L 4) System Setup • LCD Calibration: Calibrate touchscreen for its accuracy • LCD Indication: Speed UI , smart UI and horizon guideline can be turned ON/OFF. • Language Setting: The UI language can be selected. •...
- Page 34 A DA S- 1100 M A NUA L Menu Guide [Configuration] In the Configuration menu, the system operation settings can be changed. 4-3) Language • The default language is in Japanese, the user can select English or Korean in the menu.
- Page 35 A DA S- 1100 M A NUA L [Vehicle Type Setup] Installation settings 1) Vehicle Type • Select your vehicle type. *If the user selects the vehicle type, the values of Width and Height will be automatically set as follows in「Dimensions」...
- Page 36 A DA S- 1100 M A NUA L Menu Guide [Vehicle Type Setup] Installation settings 3) Vehicle Dimension * To perform ADAS more accurately, input values of installation info. *Measure the height from the ground to the main body position * Blinker Active If the arrow icon blinks continuously even when turn indicators are off, or when the arrow, which is opposite to...
-
Page 37: Data Manager Program
A DA S- 1100 M A NUA L Data Manager [PC Manager Install] In the data manager program, the user can check FHD videos in a full screen. Additional information, such as vehicle GPS and acceleration data can also be monitored. Release the provided zip file 2) If (setup.exe) is launched, the user can install by following Visual C++ 2010 Runtime Libraries (x86) guide... -
Page 38: Screen Menus
A DA S- 1100 M A NUA L Data Manager [Screen Menus] Main Screen Video Volume Play/DIT Mode Change Sub Screen Speed Indication File list window Open/Close GPS Location on the map Compass button ADAS Display Screen Recorded Date & GPS File list sort out button Manager Menu bar Co-ordinates... - Page 39 A DA S- 1100 M A NUA L [Screen Menus | DIT Mode] DIT data list Video Play Time Acceleration sensor data: Main camera screen Video Volume impact level & speed graph Location tracking window Speed Indication Exclusive DIT mode buttons ADAS Display Compass ScreenManager Menu...
- Page 40 A DA S- 1100 M A NUA L Data Manager [Button Description] Open file Stop Read SD card Play Previous File Zoom in images Play Zoom out images Pause Switch between the main screen and sub screen Play Next File Format SD card Normal playing speed Configuration...
-
Page 41: Maintenance
A DA S- 1100 M A NUA L Maintenance [Micro SD Card Maintenance] SD card is a consumable product. If not maintained well, errors may occur and videos may not be recorded properly. Make sure to use micro SD card approved by the manufacturer. SD Card Insert/Remove Before inserting or removing SD card, turn off the power. -
Page 42: Troubleshooting
A DA S- 1100 M A NUA L Maintenance [Troubleshooting] [Troubleshooting] Q. Not being able to turn ON the power Q. No ADAS warnings • Check if the power cable is correctly connected to the • Check if ADAS functions are turned OFF product •... -
Page 43: Optional Devices
A DA S- 1100 M A NUA L Optional Devices [Extra Display] The intuitive display allows the driver to effortlessly monitor detection of lanes, front vehicles, traffic signs, and pedestrians. Number SDA timing Orange REC Recording Activated Green Vehicle Vehicle Detection & Warning Lane Icon Lane Detection &... -
Page 44: Vibrator
A DA S- 1100 M A NUA L Optional Devices [Vibrator] The driver can effectively sense warnings through the instant vibratory warning method. The vibration strength can be adjusted from level 1 to level 3 or can be turned off. *How to use the vibratory device. -
Page 45: Appendix
A DA S- 1100 M A NUA L Appendix [Certification] • Registered No.: MSIP • Company Name: PLK Technologies • Country of Origin: South Korea This device is registered as the Business-purpose (Class A) digital device which achieved electromagnetic wave compliance, Class A digital devices are ones that are marketed exclusively for use in business, industrial and commercial environments. - Page 46 A DA S- 1100 M A NUA L Appendix ：114.5(W) × 64(H) × 35.5(D) (unit : mm), Secondary Camera：62(W) x 24.5(H) x 35.5(D) (unit : mm) Size Body Weight Body : 140g, Secondary Camera : 25g Camera Front : FHD (1920x1080), Secondary : HD (1280x720) Recording Method Continuous Recording, Event Recording, Manual Recording and parking mode[CCTV] Recording Frame...
- Page 47 A DA S- 1100 M A NUA L...
- Page 48 734-619-1250 | 21520 Bridge St. Southfield, MI 48033 | www.brandmotion.com...
