Jeep Wrangler Adjustable Rear Vision Camera, 2007 – Current
(Kit # 9002-8848)
Items Included in the Kit
Camera
Chassis Harness
Power Harness
Zip lock bag with 15 Wire Ties & 3 Push Nuts
Camera Extension Bracket
These Instructions
Install Camera
Step 1: Loosen lug nuts to remove spare tire.
Step 2: Slide Camera on studs placing harness end
inside of tire carrier.
Step 3: Adjust Camera head to fit your specific wheel.
Bracket is shipped in factory wheel configuration.
8848 Instructions 12-18-14.docx
Required Tools & Supplies
T15 & T20 Torx Bits
7mm & 10mm Sockets
Phillips Screwdriver
3/8" Wrench or Socket Drive
Plastic Trim Removal Tool
Soldering Iron, Solder, & Heat Shrink Tubing
(RECOMMENDED) or T-taps as an alternate
splicing method
Electrical Tape

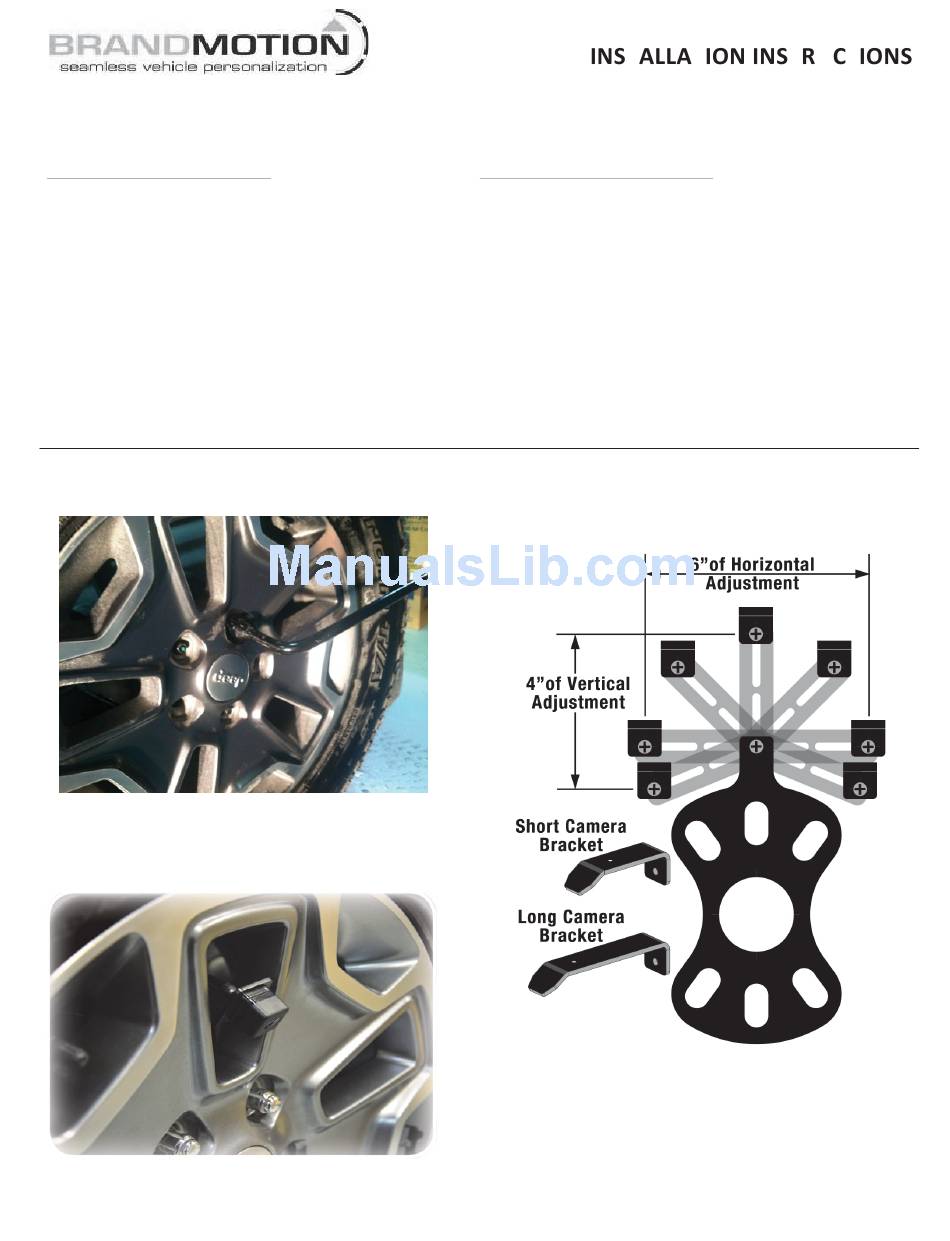

Adjustment Bracket for Camera Clearance using Phillips
Screwdriver and 3/8" Wrench or Socket Drive
Note: Short Bracket has been designed for Factory
offset wheels. Use the Long Bracket for wheels with
larger offsets.
Page 1 of 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9002-8848 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BrandMotion 9002-8848

  • Page 1 Jeep Wrangler Adjustable Rear Vision Camera, 2007 – Current (Kit # 9002-8848) Items Included in the Kit Required Tools & Supplies Camera T15 & T20 Torx Bits Chassis Harness 7mm & 10mm Sockets Power Harness Phillips Screwdriver Zip lock bag with 15 Wire Ties & 3 Push Nuts 3/8”...
  • Page 2 Step 4: Remove spare tire and slide (3) supplied Push Nuts on the studs. Step 8: Pull harness through the rear gate openings. Step 9: Use supplied Wire Ties to secure Chassis Harness to existing harness. Step 5: Reinstall spare tire. Install Chassis Harness Step 6: Insert connector from Camera connector through the rear gate vent behind tire carrier.
  • Page 3 Step 12: Use a T20 Torx bit to remove subwoofer box. Step 13: Using a plastic trim removal tool, pry off rear seat belt closeout. Step 17: Run Chassis Harness under B-pillar cover to passenger door sill. Use a plastic trim removal tool to remove the (2) plastic push pins and remove passenger sill plate/kick panel.
  • Page 4 Step 19: Remove 7mm bolt . Step 22: Remove 7mm bolt. Step 20: Using a plastic trim removal tool, remove Step 23: Remove driver knee bolster cover. window switch panel. Step 24: Remove (2) 7mm bolts on both sides of the steering column.
  • Page 5 Step 26: Remove glove box for access and run Mirror Step 29: Connect Chassis Harness to Power Harness Harness toward center of dash. Step 27: Using a plastic trim removal tool, remove Step 30: Plug the Chassis Harness RCA connector into HVAC panel.
  • Page 6 • Only perform this task if confidence, skill, and physical ability permit. NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color instructions, as well as an installation video, please visit www.brandmotion.com IMPORTANT: Use of this camera with the factory display requires activation by a Chrysler/Dodge dealer.
  • Page 7 Step 1: Use a Plastic Trim Removal Tool to remove Continue with steps 6 through 9 for vehicles console and dash trim pieces to gain access to the with 22-pin radio connector. radio bezel. IMPORTANT: If the White 22-pin connector is Step 2: Use a Plastic Trim Removal Tool to remove present in the vehicle and Pin 3 and/or Pin 4 are radio bezel.
