BrandMotion 9002-8858 Installation Instructions Manual

Jeep wrangler adjustable infrared light rear vision camera system for factory display radios

Advertisement

Quick Links

Jeep Wrangler Adjustable Infrared Light Rear Vision Camera

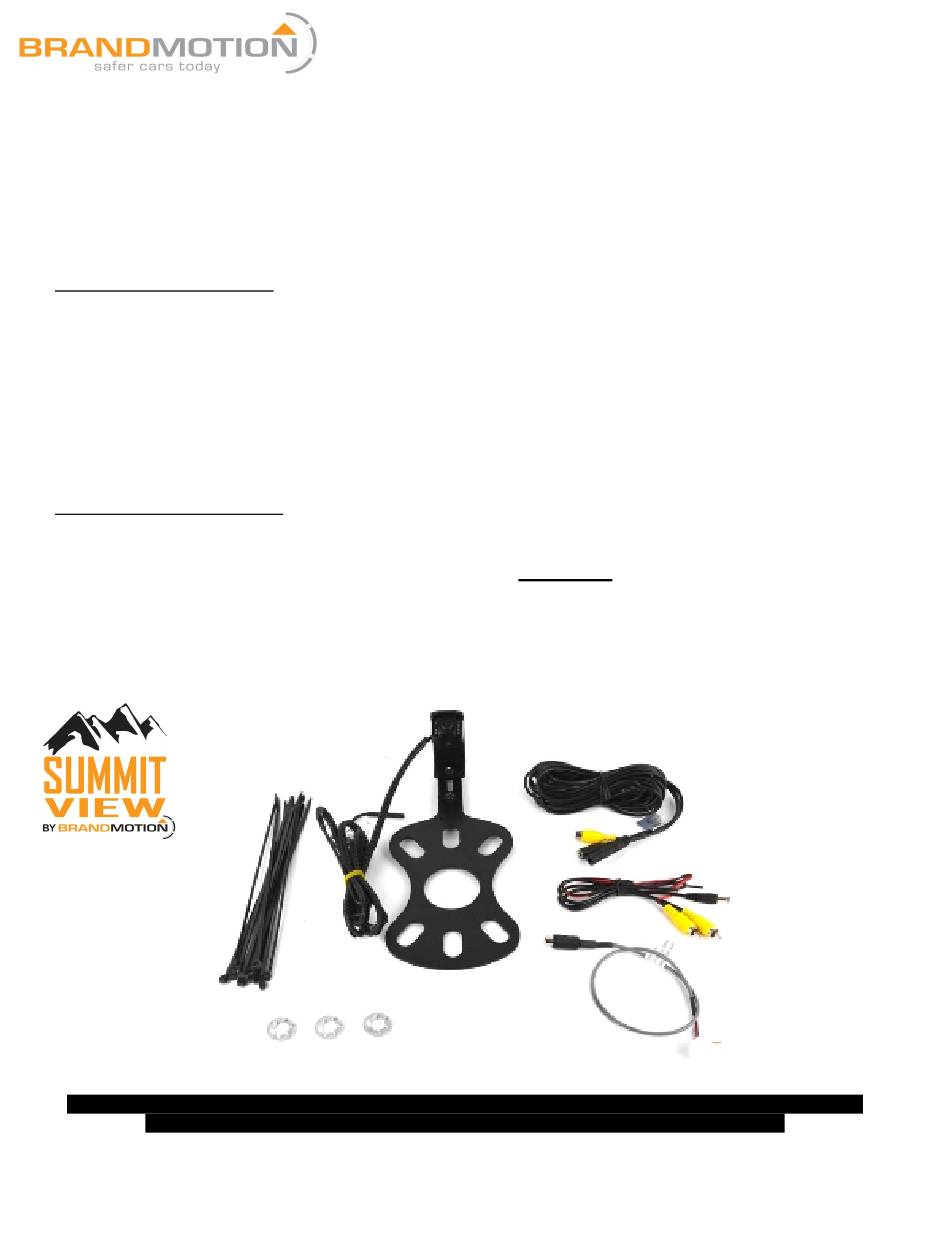

Items Included in the Kit
Camera
Chassis Harness
Power Harness
22--pin white connector w/ video RCA (for
factory display radio)
Zip lock bag with 15 Wire Ties & 3 Push Nuts
Camera Extension Bracket
These Instructions
Required Tools & Supplies
Please read so you do not ​ V OID​ the warranty:
If the camera harness is run through the center on the camera
bracket, it will cut the camera harness. This will void the
NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color
instructions, as well as an installation video, please visit www.brandmotion.com
9002-8858 Instructions 6-10-19.docx
System for Factory Display Radios
2007 – Current (Kit # 9002-8858)
warranty on the camera.
Page 1 of
INSTALLATION INSTRUCTIONS
T15 & T20 Torx Bits
7mm & 10mm Sockets
Phillips Screwdriver
3/8" Wrench or Socket Drive
Plastic Trim Removal Tool
Soldering Iron, Solder, & Heat Shrink Tubing
(RECOMMENDED) or T-taps as an alternate
splicing method
Electrical Tape
