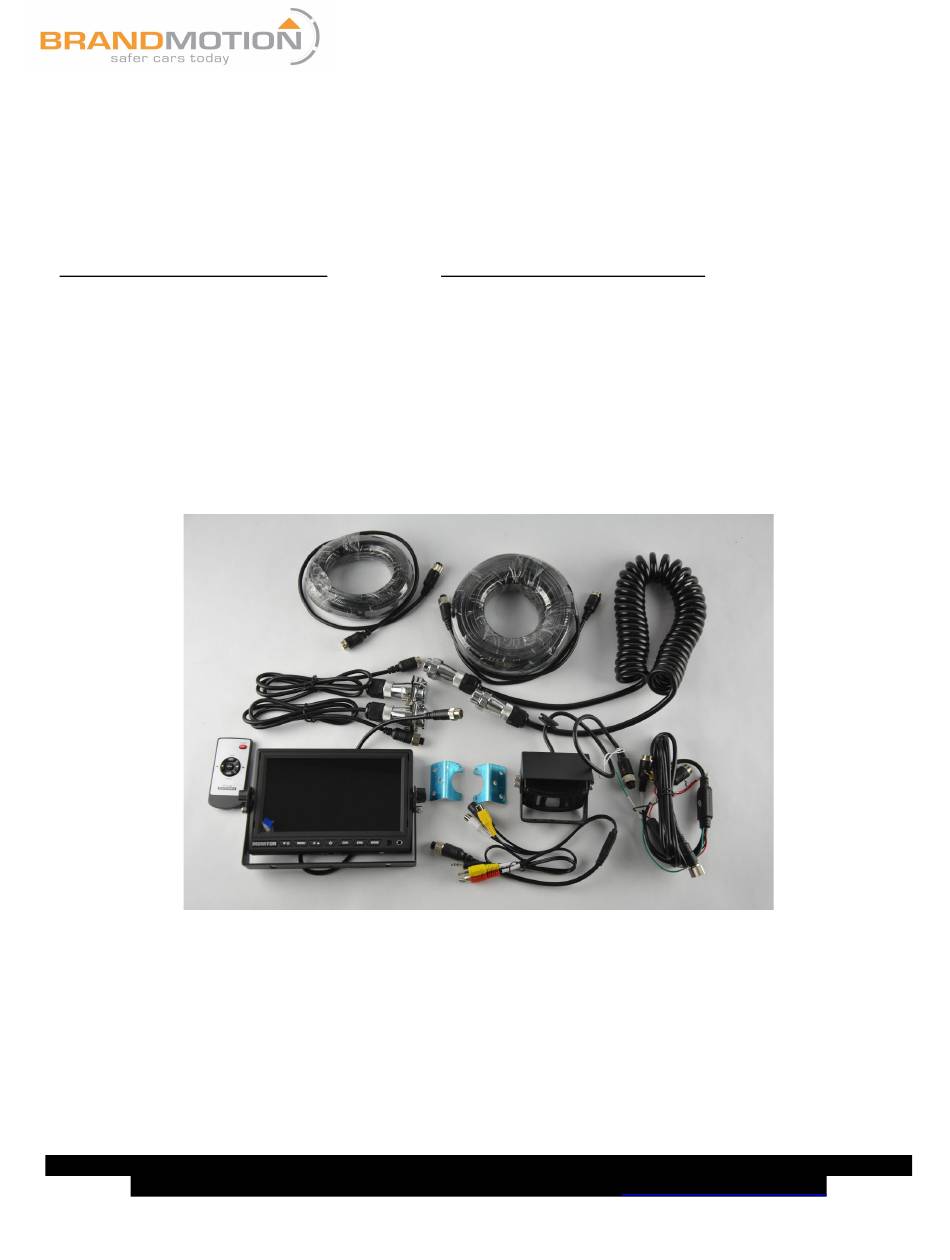

Universal Trailer Rear Vision System With 7" Monitor
Please read thoroughly before starting installation and check that kit contents are complete.

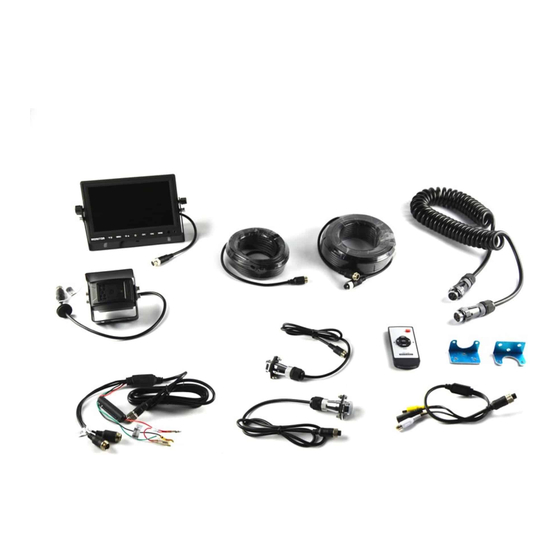

Items Included in the Kit:
10m 4pin Connector Cable
20m 4pin Connector Cable
2 Connector mounting brackets
1 IR Camera
7" Monitor
2 Vehicle Mounted Connectors
1 4pin Coiled Cable
Safety Precautions:
Work in well ventilated area that is clear of obstructions.
●
Secure vehicle with tire chucks in both front and rear of tires.
●
Turn vehicle accessories OFF and ensure ignition key is in OFF position.
●
Wear safety goggles and snug fitting clothes.
●
Use tools only for their intended purpose and which are in good repair.
●
Only perform this task if confidence, skill, and physical ability permit.
●
NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color
instructions, as well as an installation video, please visit
7802 Instructions 6/26/18
(Kit # 9002-7802)
Tools & Supplies Needed:
Electrical tape
Zip ties
1" Hole Saw
3/16" Drill Bit
Digital Volt Meter / BCM safe test light
Screwdriver
Socket set
Wrench
Page 1 of 6
INSTALLATION INSTRUCTIONS
w ww.brandmotion.com
KB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BrandMotion 9002-7802
Summary of Contents for BrandMotion 9002-7802
- Page 1 INSTALLATION INSTRUCTIONS Universal Trailer Rear Vision System With 7” Monitor (Kit # 9002-7802) Please read thoroughly before starting installation and check that kit contents are complete. Items Included in the Kit: Tools & Supplies Needed: 10m 4pin Connector Cable Electrical tape...
- Page 2 INSTALLATION INSTRUCTIONS INSTALLATION: Rear trailer camera 1. Remove the 4 Allen screws that are located on the sides of the camera. Then remove the camera mounting bracket and visor. 2. Find an appropriate place to mount the backup camera. Line up the foot bracket to ensure that there is enough space to attach the camera to the body.
- Page 3 INSTALLATION INSTRUCTIONS 4. Connect the 4-pin harness(s) to the trailer side plug. 7802 Instructions 6/26/18 Page 3 of 6...
- Page 4 INSTALLATION INSTRUCTIONS 5. Then mount the plug’s 90º bracket to the trailer by using self tapping screws and nuts and bolts depending on the trailer and location. 6. Attach the plug to the bracket by removing the 2 nuts and washers. Then attach the plug to the front of the bracket and secure with the original washers and nuts.
- Page 5 INSTALLATION INSTRUCTIONS INSTALLATION: Vehicle harness and plug 1. Using the included template, drill a 1” hole facing the rear of the vehicles bumper to mount the vehicle plug. Look behind the bumper or bumper cover to make sure there is nothing on the backside of where the plug is going to go.
- Page 6 INSTALLATION INSTRUCTIONS 4. There is an included aluminum bracket if you do not wish to drill into the exterior of the truck. This is the same style 90º bracket that is used for the trailer plug. 5. Connect the 10m (32 ft.) harness(s) to the 4-pin connector on the rear of the vehicle. Run the harness from the rear of the truck to the area where the monitor/display is located.
