FullVUE® Rear Camera Mirror for
Chevrolet & GMC Trucks (2019-Current) &
Heavy Duty (2020-Current)
FVMR-1191
Recommended Tools
Difficulty Level
Wrench
Wire Strippers
Wire Cutters
Electrical Tape
Install Time
2hrs - 3hrs
Screw Driver
Panel Removal Tool
Zip Ties
Socket Set
Questions? Call the Brandmotion technical support line at (734) 619-1250 or
CLICK HERE
AR_1_10_2023
FullVUE® Rear Camera Mirror - FVMR-1191
Page 1/9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BrandMotion FullVUE FVMR-1191
Summary of Contents for BrandMotion FullVUE FVMR-1191
- Page 1 Wire Cutters Electrical Tape Install Time 2hrs - 3hrs Screw Driver Panel Removal Tool Zip Ties Socket Set Questions? Call the Brandmotion technical support line at (734) 619-1250 or CLICK HERE AR_1_10_2023 FullVUE® Rear Camera Mirror - FVMR-1191 Page 1/9...
-
Page 2: Kit Contents

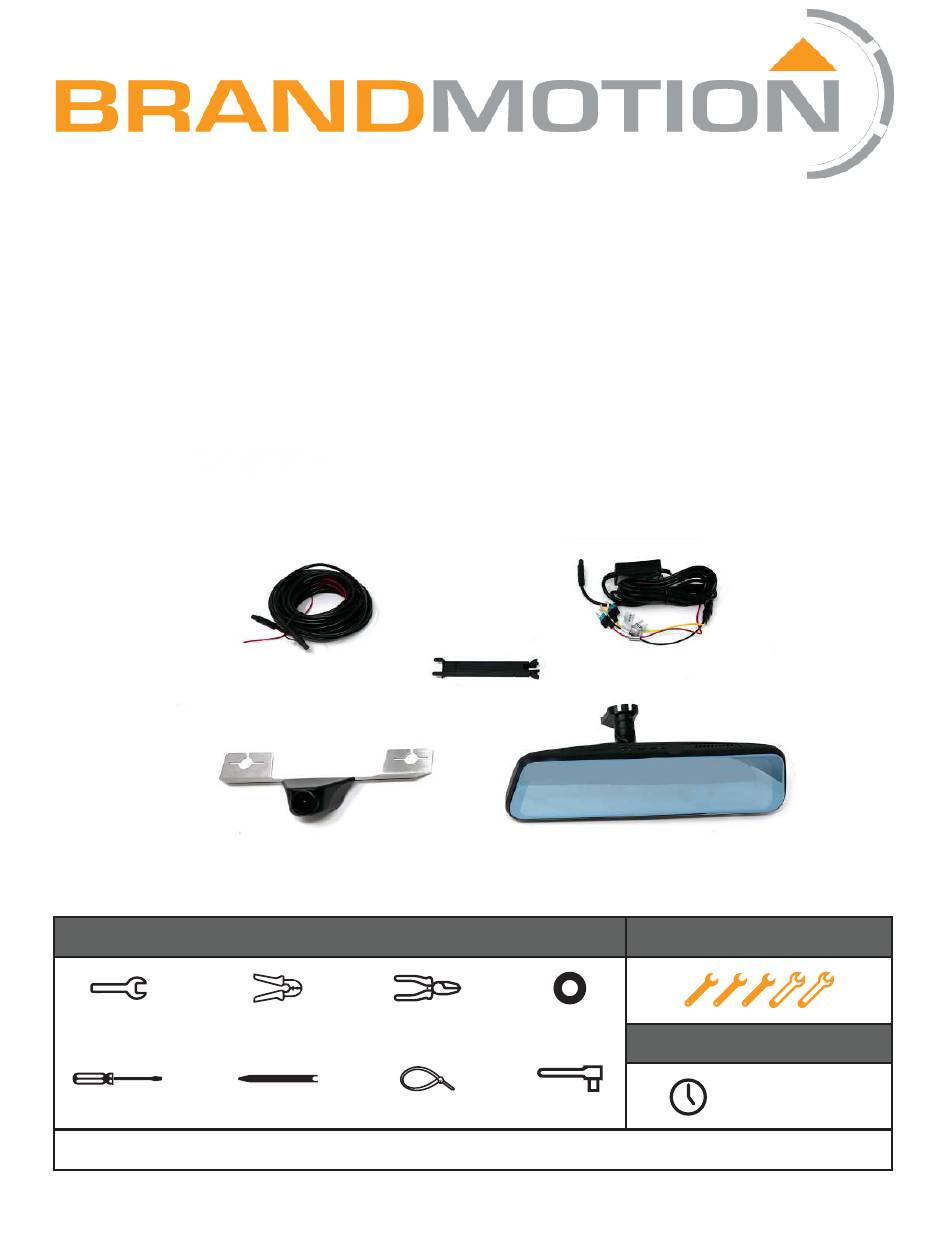

Vehicle Application: Chevrolet & GMC Trucks (2019-Current) & Heavy Duty (2020-Current) Part Number: FVMR-1191 Kit Contents Components for installing the FVMR-1191 Kit Contents: FullVUE® Mirror & Harness 3rd Brake Light Bracket & Camera 9m Camera Harness AR_1_10_2023 FullVUE® Rear Camera Mirror - FVMR-1191 Page 2/9... - Page 3 Vehicle Application: Chevrolet & GMC Trucks (2019-Current) & Heavy Duty (2020-Current) Part Number: FVMR-1191 Installation of the FullVUE Mirror & Wire Connections Part 1 Attaching the FullVUE® Mirror to the windshield 1. Remove the old mirror from the mount on the windshield as per manufacturer’s directions.
- Page 4 Vehicle Application: Chevrolet & GMC Trucks (2019-Current) & Heavy Duty (2020-Current) Part Number: FVMR-1191 Installation of the FullVUE Mirror & Wire Connections Part 3 Wiring the FullVUE Mirror 1. Connect the RED wire from the mirror harness to 12-volt accessory power. 2.
- Page 5 Vehicle Application: Chevrolet & GMC Trucks (2019-Current) & Heavy Duty (2020-Current) Part Number: FVMR-1191 Disassembly Part 1 Lower the rear of the headliner 1. Remove the rear door seals off of the top of the pinch welds. 2. Use a trim removal tool to remove the cover from the coat hook.
- Page 6 Vehicle Application: Chevrolet & GMC Trucks (2019-Current) & Heavy Duty (2020-Current) Part Number: FVMR-1191 Disassembly Part 2 Removing the spoiler from the rear of the cab 1. Reach a 10mm socket behind the headliner and remove the eight nuts and four bolts that hold the spoiler on.
- Page 7 Vehicle Application: Chevrolet & GMC Trucks (2019-Current) & Heavy Duty (2020-Current) Part Number: FVMR-1191 Running Wires Part 1 Video Connector 1. Connect the 9m camera harness to the mirror harness at the connection by the mirror. 2. Run the 9m camera harness from the FullVUE Mirror through the headliner toward the brake light.
- Page 8 Vehicle Application: Chevrolet & GMC Trucks (2019-Current) & Heavy Duty (2020-Current) Part Number: FVMR-1191 Assembly Part 1 Spoiler Reattachment 1. Reconnect the brake light plug. 2. Line up the spoiler with the holes in the cab and gently push it until it snaps in place. 3.
- Page 9 Vehicle Application: Chevrolet & GMC Trucks (2019-Current) & Heavy Duty (2020-Current) Part Number: FVMR-1191 Adjustment Part 1 Bezel Viewing Adjustment 1. If you need to change the camera’s pitch, gently bend the bracket until it reaches the desired view angle. AR_1_10_2023 FullVUE®...
- Page 10 FullVUE® Mirror Settings FullVUE® User Interface Guide 1. Touch screen once to bring up User Interface 2. Swipe finger left or right to switch camera views 3. Use +/- on left side of screen to adjust brightness 4. Use icons below for respective controls FullVUE®...
- Page 11 FullVUE® Mirror Settings FullVUE® User Interface Guide Video Recording Menu Instructions Protect and Unprotect Normal Video - These functions will not protect the video from - This is where all general video recordings can be found. All files in this folder will be overwritten if being overwritten.
- Page 12 FAQ Section 1. Can you flip the camera in the FullVUE® Screen? - At this time you cannot flip the image from the FullVUE® camera. Please check back with our website for the latest information. 2. Can I turn the display off and use the FullVUE® as a mirror? - Yes! Simply tap the bottom button 1 time ( 2 times if you have the time stamp screen) and the mirror will function as a traditional mirror.
