Please read thoroughly before starting installation and check that kit contents are complete.
Items Included in the Kit:
Interface module
Ford MyTouch harness
OBDII connector harness
OBDII flash module
Safety Precautions:
• Work in well ventilated area that is clear of obstructions.
• Secure vehicle with tire chucks in both front and rear of tires.
• Turn vehicle accessories OFF and ensure ignition key is in OFF position.
• Wear safety goggles and snug fitting clothes.
• Use tools only for their intended purpose and which are in good repair.
• Only perform this task if confidence, skill, and physical ability permit.
NOTE: We strive to provide accurate and up-to-date installation instructions.

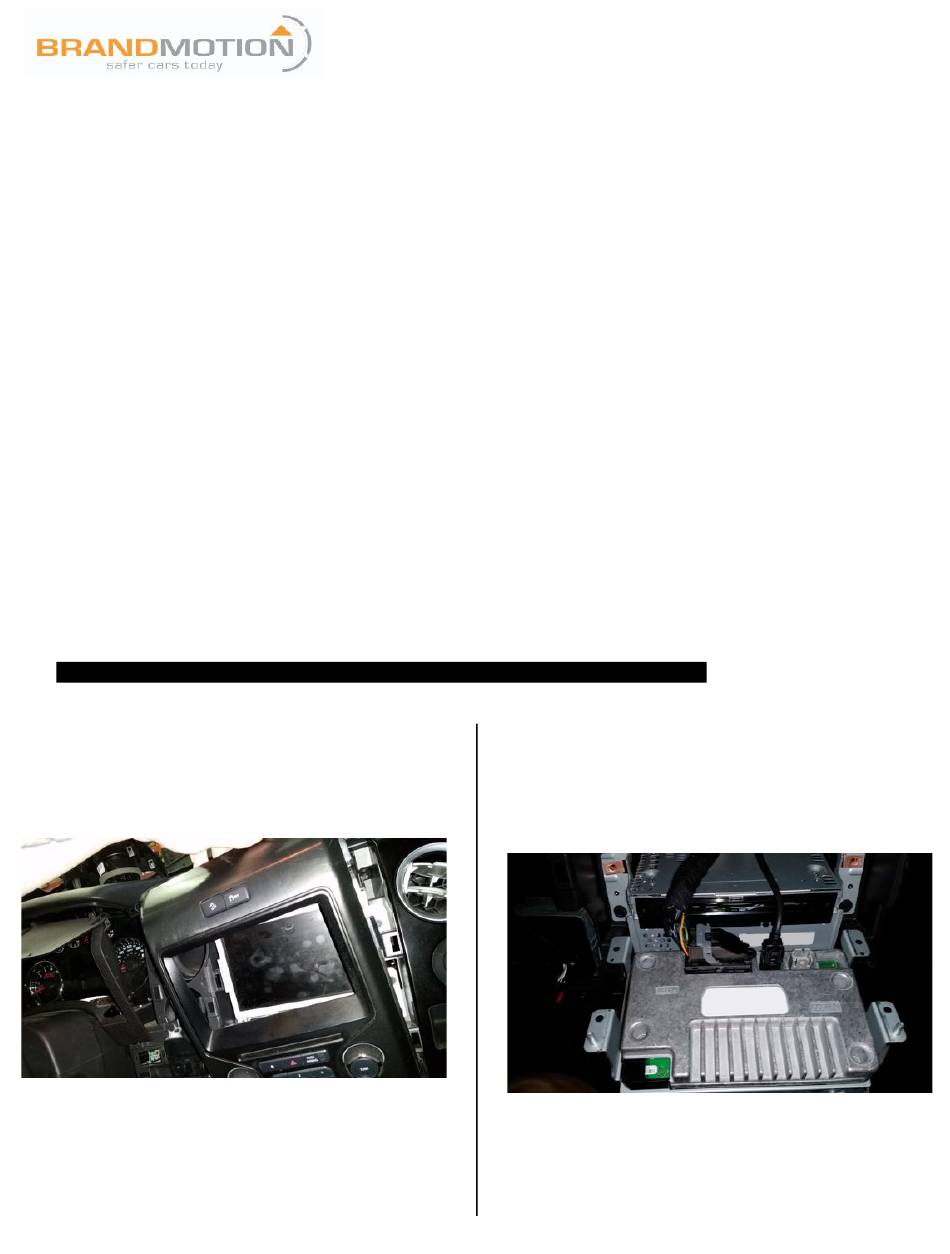

1. Remove the trim around the screen/display
in the dash.
!
Display Radio Camera Interface
Harness (Kit # 9002-7752)
INSTALLATION!INSTRUCTIONS!
Tools & Supplies Needed:
7mm socket
8mm socket
Phillips screw driver
Wire strippers
Wire cutters
Electrical tape or Heat shrink
2. Remove the (4) 7mm bolts holding in the
screen/display. Pull screen forward out of
dash.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BrandMotion 9002-7752
Summary of Contents for BrandMotion 9002-7752
-
Page 1: Safety Precautions
INSTALLATION!INSTRUCTIONS! Display Radio Camera Interface Harness (Kit # 9002-7752) Please read thoroughly before starting installation and check that kit contents are complete. Items Included in the Kit: Tools & Supplies Needed: Interface module 7mm socket Ford MyTouch harness 8mm socket... - Page 2 INSTALLATION!INSTRUCTIONS! 3. Remove the large plug to the left of the screen by lifting the handle like plug. 6. Use the red wire for accessory power output and the black for ground output to the camera. The blue, white, and grey with 4.
- Page 3 INSTALLATION!INSTRUCTIONS! 12. Make sure the key is in OFF position. Plug Radio self-programming procedure the other end of the harness into the flash 1. Connect module to OBDII plug module. 2. Turn key to position. Wait 20 seconds 3. Radio will begin programming sequence and will take 1-2 minutes.
- Page 4 INSTALLATION!INSTRUCTIONS!
- Page 5 INSTALLATION INSTRUCTIONS Snap-In Lip Mount CMOS Camera with Optional Grid Lines (Kit # FLTW-7603) Please read thoroughly before starting installation and check that kit contents are complete. Items Included in the Kit: Tools & Supplies Needed: Camera ¼” Drill Bit (If Needed) Hole Saw for camera mount Center Punch Chassis Harness...
- Page 6 INSTALLATION INSTRUCTIONS Step 1: Determine Camera location. Place Step 5: Route Camera and/ or Chassis template in desired position to confirm fitment. Harness along existing wiring and secure (IMPORTANT: Some states prohibit items blocking using Wire Ties or Electrical Tape. the license plate; check local authorities to confirm IMPORTANT: Ensure harnesses move freely with legal status for your application).
- Page 7 Step 15: Reassemble vehicle. Follow your disassembly steps in reverse order, taking care not to bind the harness wiring when reinstalling trim. Green and White wires on the Camera Harness. If you’re looking for quality cameras & driver safety products by Brandmotion, we’ve you covered.
