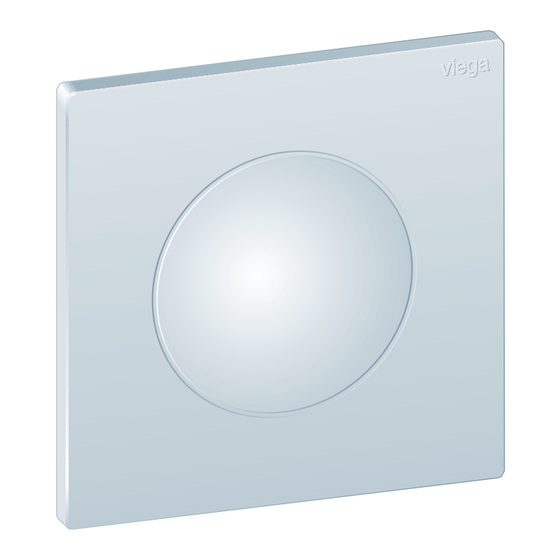

  • Page 1 Instructions for Use Urinal flush plate for Prevista Visign for Style 20 for urinal flushing systems Model Year built (from) 8610.2 03/2019...

  • Page 2: Table Of Contents

    Table of contents Table of contents About these instructions for use 1.1 Target groups 1.2 Labelling of notes 1.3 About this translated version Product information 2.1 Standards and regulations 2.2 Intended use 2.2.1 Areas of use 2.2.2 Maintenance 2.3 Product description 2.3.1 Overview 2.3.2...

  • Page 3: About These Instructions For Use

    This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.

  • Page 4: About This Translated Version

    About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g.

  • Page 5: Product Information

    Product information Product information Standards and regulations The following standards and regulations apply to Germany / Europe and are provided as a support feature. Regulations from section: Technical data Scope / Notice Regulations applicable in Ger‐ many Flush flow DIN 3265 Noise class DIN 4109 Intended use...

  • Page 6: Product Description

    Product information Product description 2.3.1 Overview Fig. 1: Scope of delivery flush plate silicon grease cartridge valve actuator sleeve retaining bolt installation frame 2.3.2 Technical data The product has the following technical data: Minimum flow pressure 0.05–0.5 MPa (0.5–5 bar) Flush flow, see Ä...

  • Page 7: Handling

    Handling Handling Assembly information 3.1.1 Required material and tools Tool The following tools are required for mounting: cutting knife Fork spanner (size 27) flat-blade screwdriver Assembly 3.2.1 Insert cartridge valve Requirements: The pre-wall element has been mounted. The tiling work is completed. The revision opening is freely accessible.
  • Page 8 Handling ▶ Remove the shaft cover. ▶ Cut into the corners of the revision shaft. ▶ Fold the sides of the revision shaft outwards up to the tile level and snap them off. ▶ Open the shut-off with a screwdriver for a few seconds to rinse the pipeline.
  • Page 9 Handling ▶ Grease the sealing elements. ▶ Place the brass nut on the cartridge valve. INFO! Check that the sealing element is properly positioned. ▶ Place the cartridge valve on straight and carefully screw in (fine thread). Tightening torque: 5 Nm ▶...
  • Page 10 Handling ▶ Open the shut-off valve. ▶ Checking for leak tightness. ▶ Set the flush volume. Setting range 1 l to 6 l ▶ Actuate a flushing and check the set flush volume. ▶ Re-set the flush volume if applicable. Urinal flush plate for Prevista Visign for Style 20...

  • Page 11: Mounting The Flush Plate

    Handling 3.2.2 Mounting the flush plate Requirements: The cartridge valve is mounted and set. ▶ Insert the actuator. Observe proper alignment. ▶ Apply the installation frame. ▶ Place the sleeve over the actuator. ▶ Measure the actuator. INFO! The actuator must not protrude over the sleeve. Urinal flush plate for Prevista Visign for Style 20...
  • Page 12 Handling ▶ Take the installation frame and actuator off again. ▶ Cut the actuator to length. ▶ Insert the actuator. Observe proper alignment. ▶ Apply the installation frame. ▶ Place the sleeve over the actuator. Urinal flush plate for Prevista Visign for Style 20...
  • Page 13 Handling ▶ Secure the sleeve with a 90° clockwise turn. ▶ Slide the retaining bolt in. ▶ If necessary, remove the retaining bolts again and cut the segments to length. ▶ Slide the retaining bolt in as far as it will go. ▶...

  • Page 14: Errors, Faults And Remedy

    Handling ▶ Mount the flush plate. The flush plate is mounted. ▷ Errors, faults and remedy Error Cause Remedy The urinal does not flush. The shut-off valve closed. Open the shut-off valve. The cartridge valve dirty or dam‐ Clean the cartridge valve, if neces‐ aged.
  • Page 15 Handling ▶ Remove the flush plate from the installation frame. ▶ Turn the safety rings 90° anti-clockwise. ▶ Turn the retaining bolts 90° anti-clockwise. ▶ Turn the sleeve 90° clockwise to unlatch it. Urinal flush plate for Prevista Visign for Style 20...
  • Page 16 Handling ▶ Loosen the installation frame. ▶ Close the shut-off. ▶ Remove the actuator. ▶ Unscrew the cartridge valve. ▶ Rinse the cartridge valve under running water. Remove coarse dirt with a soft brush. ▶ Re-mount the cartridge valve and the flush plate in accordance with Ä...

  • Page 17: Disposal

    Handling Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Urinal flush plate for Prevista Visign for Style 20...
