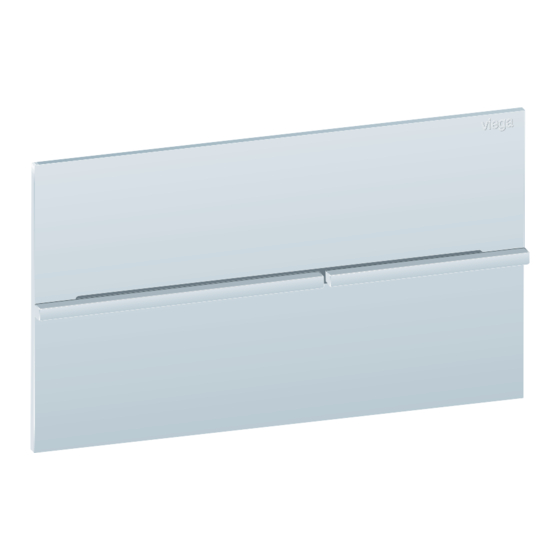

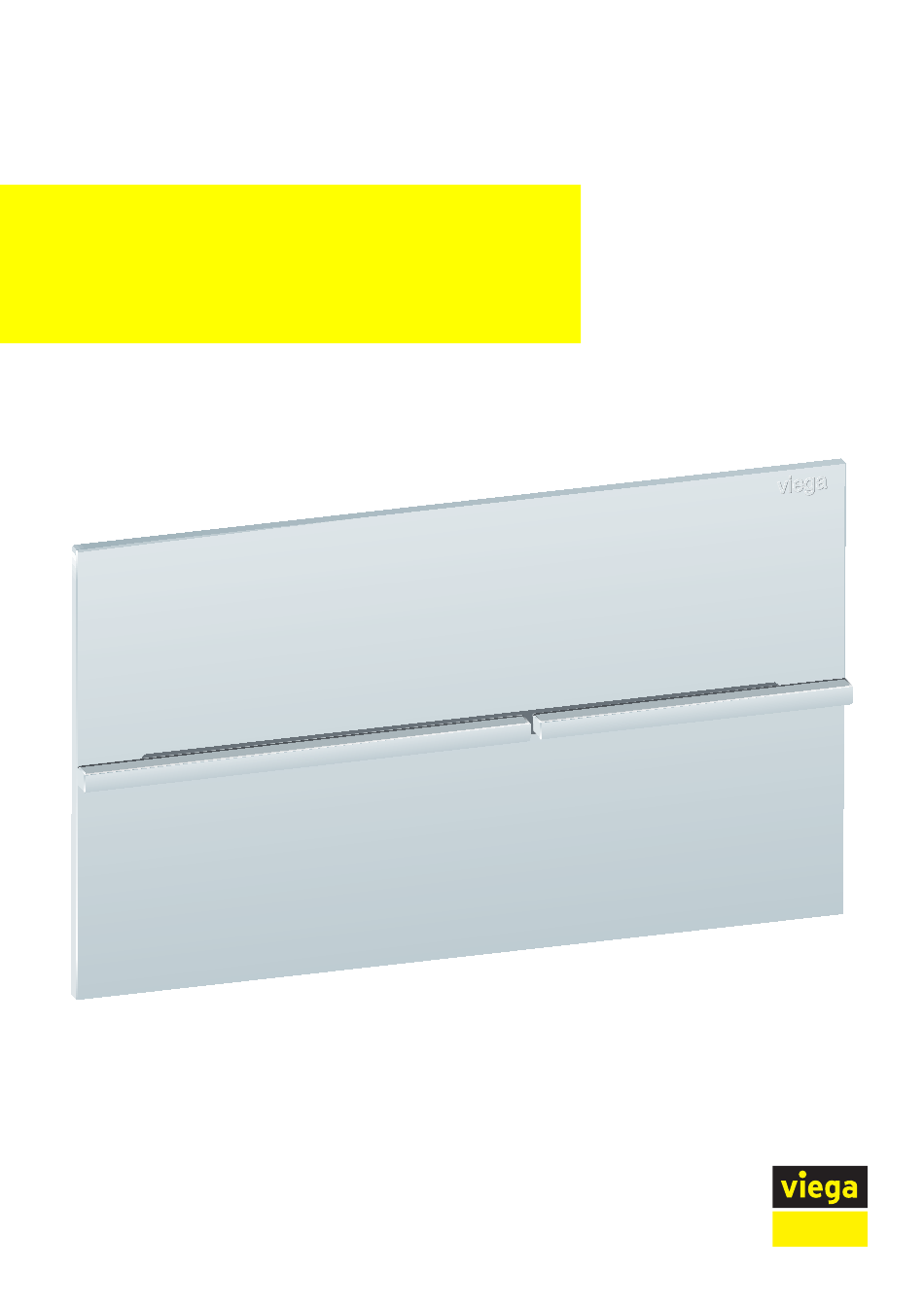

- Page 1 WC flush plate for Prevista Visign for More 204 electronic Instructions for Use for all Prevista concealed cisterns Model Year built: 8624.1 from 03/2019 en_INT...
- Page 2 WC flush plate for Prevista Visign for More 204 electronic 2 from 25...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Intended use 2.1.1 Areas of use General notes Product description 2.3.1 Overview 2.3.2 Technical data 2.3.3 Connection diagram 2.3.4 Operating mode 2.3.5... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. -
Page 6: Product Information
Intended use 2.1.1 Areas of use Suitable cisterns The flush plate is intended for the actuation of flushes on Viega con‐ cealed cisterns. Installation is possible in all Prevista concealed cisterns. General notes If you notice any damage on the product or individual components, do not carry out a repair. -
Page 7: Product Description
Product information Protection class III The marked product must not be disposed of as household waste. Product description 2.3.1 Overview Fig. 1: Scope of delivery flush plate Actuating rod retaining bolt silicon grease (2 x 2 g) installation frame WC flush plate for Prevista Visign for More 204 electronic 7 from 25... -
Page 8: Technical Data
Large flush volume: approx. 3.5 / 4.5 / 6 / 7.5 litres For the setting of the flush see Ä Chapter 3.3.1 „Setting the flush“ on page 22. Viega Hygiene+ function Hygiene flush volume 3 / 7.5 litres Hygiene flush interval... -
Page 9: Connection Diagram
Stagnation can lead to the build up of germs (e.g. legionella) in potable water pipelines. It is important to rinse the pipeline regularly to prevent the build up of bacteria. The Viega Hygiene+ function was developed for this reason. Flushes are actuated in a time-controlled manner with the Viega Hygiene+ function. -
Page 10: System Expansions
Product information 2.3.5 System expansions The system's range of functions can be expanded through the connec‐ tion of accessories onto the control. Radio controlled actuation You need the following accessories to connect a radio receiver instead of a cable-connected external sensor: Signals to actuate the flush (e. - Page 11 Product information The WC installation frame with LED lighting is a backlit installation frame with proximity sensor. installation set (model 8640.14) The installation set contains a hollow wall socket to house the power pack and an empty pipe to connect the cistern. Extension cable (model 8352.690) 2 metre cable for the extension of the power supply.
- Page 12 Product information Y-cable (model 8580.49) For connection of a radio receiver. Battery compartment (model 8570.56) The battery compartment can be connected for a redundant power supply using the adapter. The battery compartment is included in the adapter's scope of delivery. WC remote actuation (models 8640.1 and 8641.1) For electronic remote actuation at Prevista concealed cisterns.
-
Page 13: Handling
Handling 3 Handling Assembly information 3.1.1 Mounting conditions External sensors (optional) If external sensors are to be connected to the control, their connection cables or empty pipes must be laid in the cistern before tiling is begun, Ä Chapter 2.3.5 „System expansions“ on page 10. 3.1.2 Required material and tools Material... -
Page 14: Mounting The Flush Plate
Handling Cut into the corners of the revision shaft. Fold the sides of the revision shaft outwards up to the tile level and snap them off. 3.2.2 Mounting the flush plate Turn the cover plate lock 90° in anti-clockwise direction. Remove the cover plate. - Page 15 Handling Close the corner valve. Loosen the flexible hose at the filling valve. Open the corner valve for a few seconds to flush the pipe. Close the corner valve. WC flush plate for Prevista Visign for More 204 electronic 15 from 25...
- Page 16 Handling Connect the flexible hose to the filling valve. Re-open the corner valve. INFO! Check the corner valve and the filling valve for leak tight‐ ness. Set the desired flush volume, see Ä Chapter 3.3.1 „Setting the flush“ on page 22. Insert the cover plate into the cistern.
- Page 17 Handling Turn the cover plate lock by 90° in a clockwise direction. Put on the installation frame. Insert the retaining bolts. Turn the retaining bolts by 90° in a clockwise direction. WC flush plate for Prevista Visign for More 204 electronic 17 from 25...
- Page 18 Handling Align the installation frame. To fix the retaining bolts, turn safety rings in a clockwise direction. If you are not sure which cistern is installed, identify it by means of the following dimensions. 3H concealed cistern concealed cistern 3L INFO! For installation from the front into the concealed cisterns 3H, and 3L.
- Page 19 Handling INFO! Cistern 3H and 3L. If necessary, cut the actuating rod to length. 0: 75–50 mm 1: 50–25 mm 2: 25–10 mm INFO! For installation from above into concealed cistern 3L. Determine the distance for the actuating rod. If necessary, cut the actuating rod to length. 0: 60–45 mm 1: 45–25 mm 2: 25–10 mm...
- Page 20 Handling Align the actuating rod. Turn the actuating rod clockwise by 90°. Apply the silicon grease to the electronic connections. Connect the control line to the flush plate. If required, additional external sensors can be connected to the con‐ trol. See Ä...
-
Page 21: Connecting External Sensors
Handling 3.2.3 Connecting external sensors NOTICE! Damage to property due to excess voltage If you apply voltage to the connection cable for the external button, you will damage the control. – Do not apply any external voltage! Requirements: Button with locking function or potential-free contact (closure time at least 350 ms) available Connection cable available Connect the contact to actuate the small flush volume between the... -
Page 22: Commissioning
Switches 1-4 define the flush volume. Switches 5-7 define the interval of the Viega Hygiene+ function. Switch 8 defines the flush volume of the Viega Hygiene+ function. WC flush plate for Prevista Visign for More 204 electronic 22 from 25... - Page 23 Program 6 Program 7 Program 8 Program 9 Program 10 Viega Enabling the Hygiene+ function and setting the intervals (B) Interval (in hours) Position of switches 5—7 Switched off WC flush plate for Prevista Visign for More 204 electronic 23 from 25...
-
Page 24: Errors, Faults And Remedy
Handling Setting the flush volume of the Viega Hygiene+ function (C) Flush volume (in litres) Position of switch 8 Errors, faults and remedy Error Cause Remedy The WC does not flush. The supply voltage has failed. Check the power supply. -
Page 25: Disposal
Handling Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Electronic components and batteries must not be put in the domestic waste but must be disposed of appropriately in conformity with the WEEE guideline 2012/19/EU.
