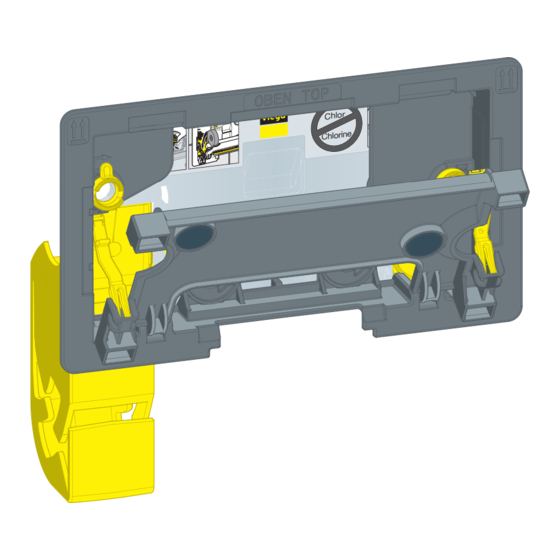

- Page 1 WC tablet holder for Prevista Instructions for Use for WC cleaning blocks, concealed cisterns 3H, concealed cis‐ terns 3L Model Year built: 8653.1 from 03/2019 en_INT...
- Page 2 WC tablet holder for Prevista 2 from 13...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Safety advice Intended use 2.2.1 Areas of use Product description 2.3.1 Overview Handling Assembly 3.1.1 Mounting the tablet holder 3.2.1 Using the tablet holder Disposal... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. -
Page 6: Product Information
Product information 2 Product information Safety advice WARNING! Risk of malfunction of cardiac pacemakers and implanted defibrillators due to magnets The flush plate is fastened to the wall with magnets. Mag‐ nets may deteriorate or stop the functions of a cardiac pacemaker, defibrillator or similar implanted devices. -
Page 7: Product Description
Product information Product description 2.3.1 Overview Fig. 1: Component overview Cover plate installation frame holding panel securing clips actuating rods retaining bolt tablet holder WC tablet holder for Prevista 7 from 13... -
Page 8: Handling
Handling 3 Handling Assembly 3.1.1 Mounting the tablet holder Requirements: The mechanism is placed on the cover plate. For new installations: The cistern and flush actuation have been mounted. For retrofitting: The existing base frame and flush plate have been removed. - Page 9 Handling Insert the cover plate all the way. Turn the cover plate lock by 90° in a clockwise direction. Engage the tablet holder. Remove the top frame from the installation frame. Put on the installation frame. WC tablet holder for Prevista 9 from 13...
- Page 10 Handling Insert the retaining bolts. Turn the retaining bolts by 90° in a clockwise direction. To fix the retaining bolts, turn safety rings in a clockwise direction. Clip the safety clips into the top frame. WC tablet holder for Prevista 10 from 13...
- Page 11 Handling Hook the safety clips into the installation frame. Insert the top frame into the installation frame. ð The tablet holder has been installed. The flush plate can be mounted. INFO! Information for installation of the flush plate can be found in the associated instructions for use. WC tablet holder for Prevista 11 from 13...
-
Page 12: Use
Handling 3.2.1 Using the tablet holder Requirements: The flush plate is mounted. Use both your hands to pull the flush plate forward to remove it. Remove the flush plate. WC tablet holder for Prevista 12 from 13... -
Page 13: Disposal
Handling Feed the freshener block into the tablet holder. NOTICE! Do not use liquid cleaner or chloric chemicals. Use both your hands to raise the flush plate. Replace the flush plate. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements.
