Installation Instructions for TruTrack Center Power Feed with
1" Rectangle Junction Box
IMPORTANT INFORMATION
- This product is for indoor locations only.
- This instructions shows a typical installation.
- Before beginning any electrical work, ensure that the
power to the electrical box is off.
SAVE THESE INSTRUCTIONS!

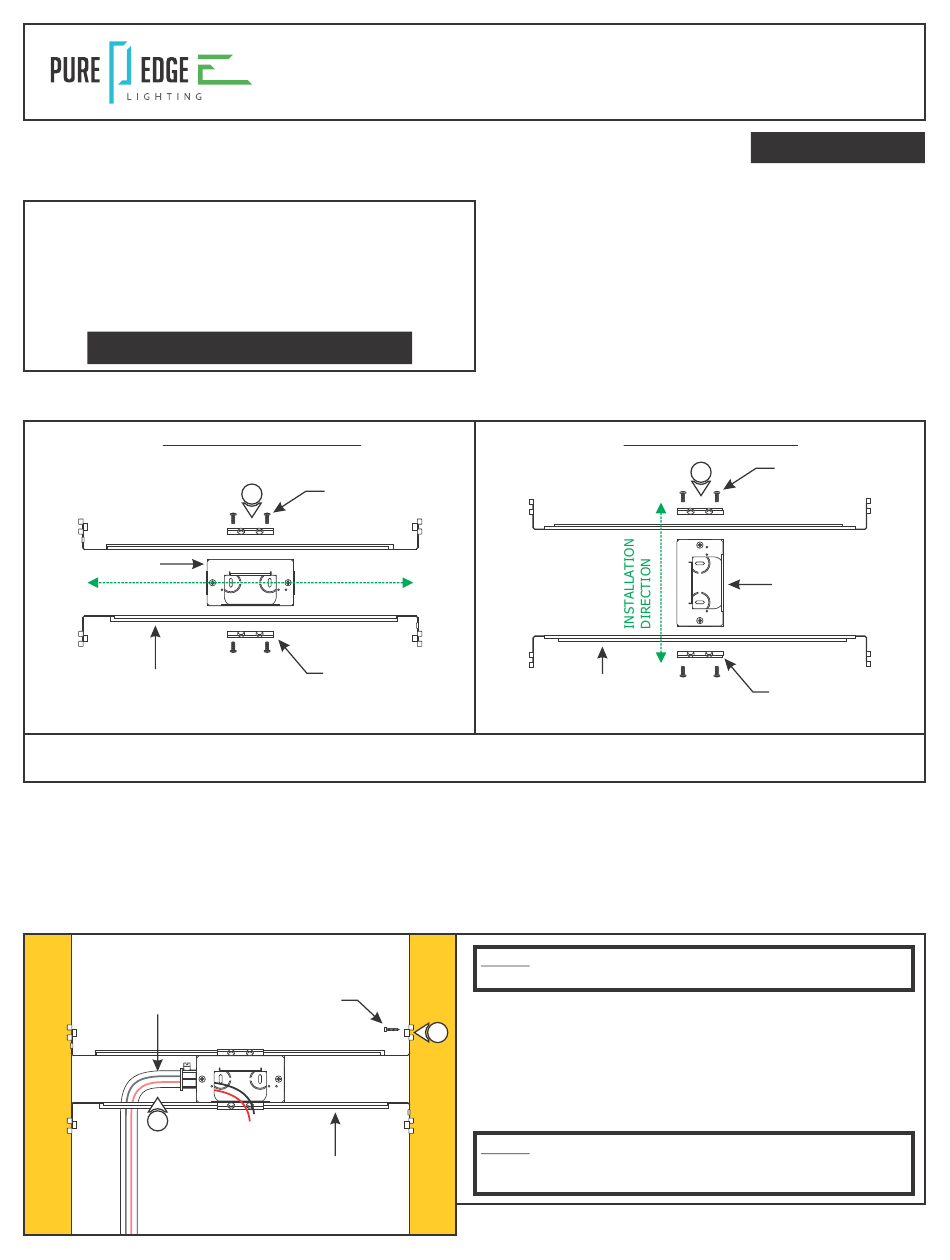

Section One: Install the Junction Box
A
HORIZONTAL ORIENTATION
JUNCTION BOX
ADJUSTABLE
MOUNTING BAR
1: Mount each adjustable mounting bar to one side of the junction box and secure them with the mounting brackets and
Phillips screws provided.
B
CONDUIT
3
PHILLIPS SCREW
1
INSTALLATION
DIRECTION
MOUNTING
BRACKET
#8 SCREWS
ADJUSTABLE
MOUNTING BAR
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
ADJUSTABLE
MOUNTING BAR
NOTE:
Adjustable mounting bars mount to studs that are
spaced 14.5" to 25" apart.
2: Place the adjustable mounting bar tabs against the ceiling
joists. Secure the adjustable bars to the joists with the #8
2
screws.
3: Install conduit (if required by local electrical code) and run
the low voltage wires coming from the remote power supply
to the junction box.
NOTE:
Only use 0-10V and Uni power supplies with this
product. See the wiring diagram provided with the power supply
instructions.
Doc # 904-TR24-CP1-1RE_02
TR24-CP1-1RE-_-_-WH
VERTICAL ORIENTATION
PHILLIPS SCREW
1
JUNCTION BOX
MOUNTING
BRACKET
1
