Modern Forms Aviator 5 Flush Installation Instructions Manual page 15

6
6A
Black(Hot)
can be RED from Switch leg
Black(Line in H)
GREY(to Motor)
YELLOW(to Motor)
RED(to Motor)
RED(to Motor)
YELLOW(to Motor)
GREY(to Motor)

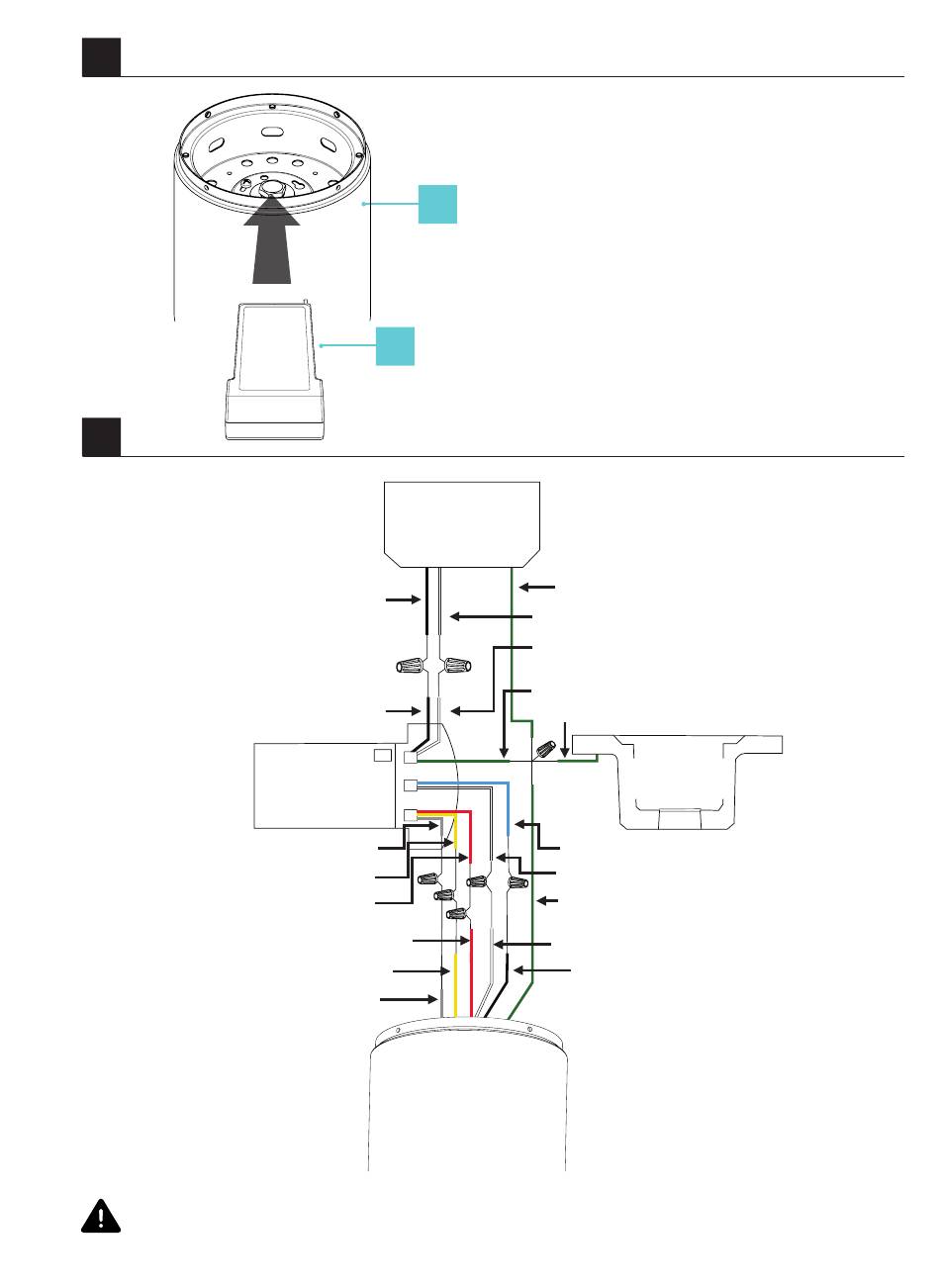

Follow the steps above to connect the fan to your household wiring. Use the plastic wire nuts with your fan.
Secure the plastic wire nuts with electrical tape. Make sure there are no loose strands or connections.
FH -W 18 1 1 -5
1
2
Outlet
Box
Receiver
1. Motor Assembly
2. Receiver
GREEN(Ground)
WHITE(Neutral)
WHITE(Line in N)
GREEN(GND Must Use)
GREEN(Mounting Bracket Ground)
Mounting
Bracket
BLUE (to Light)
WHITE(to Light)
GREEN(Mounting Bracket Ground)
WHITE(Neutral)
BLACK (for Light)
Aviator Flush Instructions 15
