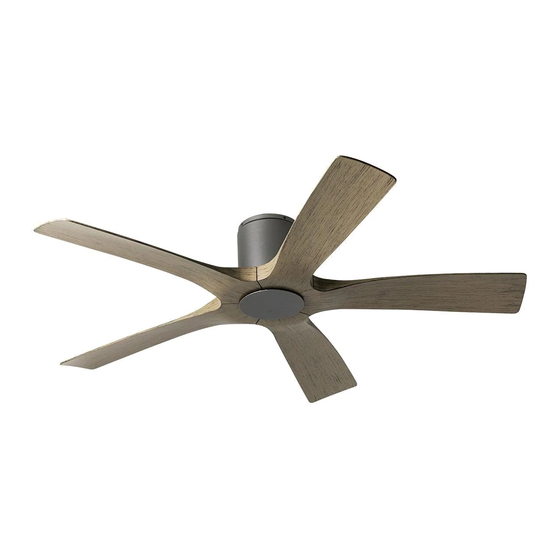

Modern Forms Aviator 5 Flush Installation Instructions Manual
  1. Manuals
  2. Brands
  3. Modern Forms Manuals
  4. Fan
  5. Aviator 5 Flush
  6. Installation instructions manual

Modern Forms Aviator 5 Flush Installation Instructions Manual

Smart fans
Hide thumbs Also See for Aviator 5 Flush:
Table of Contents

Advertisement

Quick Links

Download this manual
Aviator 5
Flush
Installation Instructions
works with the
Google Assistant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aviator 5 Flush and is the answer not in the manual?

Questions and answers

Related Manuals for Modern Forms Aviator 5 Flush

Summary of Contents for Modern Forms Aviator 5 Flush

  • Page 1 Aviator 5 Flush Installation Instructions works with the Google Assistant...
  • Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE F H - W 1 8 1 1 - 5 Aviator Flush Instructions...
  • Page 3 General Inquiries For all questions about your ceiling fan please read all included instructions, installation procedures, troubleshooting guidelines and warranty information before starting installation. For missing parts or general inquiries call our trained technical staff at: 1-866-810-6615 option 0 MON-FRI 8AM-8PM EST Email: customerservice@modernforms.com Or live chat at modernforms.com...
  • Page 4 Safety Rules For operation, maintenance, and troubleshooting information, visit http:/ /modernforms.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70”...
  • Page 5 Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
  • Page 6 Get Smart... works with the Integrates Google Assistant seamlessly with: devices you already own Wet Location-listed to the strictest UL/cUL safety regulations. Finished and rated for interior and exterior use Premium smart Wi-Fi and Bluetooth enabled features: for flexible control complement high quality materials Quiet, reliable, and up to 70% more efficient than AC fans...

  • Page 7: Table Of Contents

    Contents 1. Mounting Options 2. Installing the Mounting Bracket 3. Attaching the Fan Blades 4. Attaching Decorative Lower Cap 5. Hanging the Fan 6. Making the Electrical Connections 7. Finishing the Installation 8. Installing the Wall Control 9. Installing the LED Luminaire Module (Optional) 10.
  • Page 8 Package Contents Blade Set of 5 5. Motor Assembly RPL-F-1811-**-BD-** 6. Bottom Cap (Aluminum) 2. Blade Collector Ring PL-F1811-5-CA-** 3. Hanger Plate Control Receiver w/Hardware RPL-F1811-HANGER-** F-R3-1811-*** 4. Hanger Gasket 8. Wall Control w/Hardware F-WCBT-WT ** denotes finish code of fan *** denotes blade sweep of fan Hardware Bag RPL-F1811-5-FHPART...
  • Page 9 Hanging Weight: 13 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. FH-W 1 8 1 1 - 5 Aviator Flush Instructions 9...

  • Page 10: Mounting Options

    1. Mounting Options CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning. If there isn’t an existing UL/cUL listed outlet box, please refer to the following instructions. Secure the outlet box directly to the building structure.
  • Page 11 Support Brace 2. Outlet Box 3. Joist FH-W 1 8 1 1 - 5 Aviator Flush Instructions 11...

  • Page 12: Attaching The Fan Blades

    3. Attaching the Fan Blades Place blade on motor as shown (Fig. 3) and secure with the blade attachment screws and washers. 2. Repeat this procedure with the remaining blades (Fig. 3). 3. Secure the bottom of the blades together using the provided blade collector ring and hardware (Fig.
  • Page 13 FH-W 1 8 1 1 - 5 Aviator Flush Instructions 13...

  • Page 14: Making The Electrical Connections

    6. Making the Electrical Connections WARNING: Installation of this fan requires that a three-conductor cable (including ground wire) which should run between ceiling and wall outlet box. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire.
  • Page 15 Motor Assembly 2. Receiver Outlet GREEN(Ground) Black(Hot) WHITE(Neutral) can be RED from Switch leg WHITE(Line in N) GREEN(GND Must Use) Black(Line in H) GREEN(Mounting Bracket Ground) Mounting Receiver Bracket GREY(to Motor) BLUE (to Light) WHITE(to Light) YELLOW(to Motor) GREEN(Mounting Bracket Ground) RED(to Motor) RED(to Motor) WHITE(Neutral)

  • Page 16: Finishing The Installation

    7. Finishing the Installation Secure all wire connections with supplied wire ties to assist in fan installation. 2. Tuck connections neatly into ceiling outlet box. 3. Remove the motor assembly from the hook on the mounting bracket. Position the motor up to the hanger plate and attach using two screws through the two key slots in the top of the motor housing (Fig.
  • Page 17 FH-W 1 8 1 1 - 5 Aviator Flush Instructions 17...

  • Page 18: Installing The Wall Control

    8. Installing the Wall Control NOTE: Wall Control is included. An additional bluetooth wall control accessory can be purchased separately. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outlet box that feeds back to the circuit breaker –...
  • Page 19 Wall Outlet 2. Wall Control 3. Wall Mounting Plate 4. Mounting Plate Screws 5. Wallplate Multi-location wiring Individually pair each of the wall controls with the fan receiver using the pairing instruction. See page 22. If Applicable Wallcontroller 1 Wallcontroller 2 Wallcontroller 3 Wall Control 3 Wall Control 1...

  • Page 20: Installing The Led Luminaire Module (Optional)

    9. Installing the LED Luminaire Module (Optional) WARNING: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. LED Luminaire Installation (F-1811-5-LED) Sold separately Unthread and remove the decorative lower cap from the motor assembly.
  • Page 21 FH-W 1 8 1 1 - 5 Aviator Flush Instructions 21...

  • Page 22: Controlling The Fan

    10. Controlling the Fan Your fan was delivered to you with the included control already paired to your fan. A: Light On/Off, Bright/Dim B: Fan On/Off, Speed Up/Down C: Season (Summer/Winter) Air-Gap Switch: Pull tab to power off in case of emergency. Not necessary for normal fan operation (only included with wall control).
  • Page 23 Air-Gap Switch* Summer Mode Winter Mode Wall Control Remote (Counter-Clockwise) (Clockwise) Control * Air-Gap Switch only included with wall control Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds.

  • Page 24: Reset

    Changes to your Wi-Fi network settings (SSID or Security Passphrase) will prevent your fan from connecting to the cloud. Perform a Wi-Fi Reset (Fig. 11) and use the Modern Forms app to reconfigure the fan to connect to the network with the new settings.
  • Page 25 Pairing Unpairing Fan Wi-Fi Reset Press and hold the for 10 seconds until Press and hold buttons To purge, press and hold LED blinks green and receiver emits 2 long beeps buttons for 4 seconds. for 10-15 seconds. Factory Reset Receiver Factory Reset Press the reset button on the receiver Press and hold buttons for 10 seconds...

  • Page 26: Accessories

    14. Accessories personalize your experience Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds F-WCBT-WT White Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-RCBT-WT White F H - W 1 8 1 1 - 5 Aviator Flush Instructions...
  • Page 27 FH-W 1 8 1 1 - 5 Aviator Flush Instructions 27...

  • Page 28: Troubleshooting

    15. Troubleshooting My Fan Will Not Start CAUTION: Make sure the main power is turned off! Check main and branch circuit fuses or circuit breakers. 2. Check line wire connections to fan and switch wire connections in the switch housings. My Fan Is Noisy Allow for 24-hour break-in period.
  • Page 29 My Fan Is Not Producing Enough Air Movement If possible, please consider using a longer than included downrod. My Remote Or Wall Control Is Not Controlling My Fan Verify that the fan is receiving power by power cycling the fan. To Do This: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
  • Page 30 10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a Modern Forms wall control (P/N: F-WCBT-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
  • Page 31 What Is Pairing? Pairing is the process of connecting your Modern Forms remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
  • Page 32 Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
  • Page 33 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
  • Page 34 F H - W 1 8 1 1 - 5 Aviator Flush Instructions...
  • Page 35 FH-W 1 8 1 1 - 5 Aviator Flush Instructions 35...
  • Page 36 FH - W 18 11-5 modernforms.com...
