OPERATING
INSTRUCTIONS
INTENDED FOR USE BY SKILLED
PROFESSIONALS • READ AND
UNDERSTAND BEFORE OPERATING
MANUAL
ROTATOR/TILTER,
DC-VOLTAGE WITH
INTELLI-GRIP® TECHNOLOGY

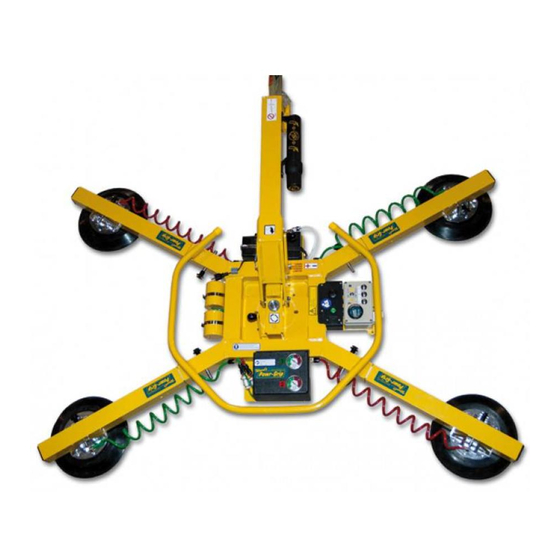

Model numbers: MRT411LDC3 (shown),
MRT49DC3, MRT4HV11DC3
Record serial number in blank space above (to locate, see serial
Rev 4.0/7-20
label on the product).
1
908 W. Main • P.O. Box 368
Laurel, MT USA 59044
800-548-7341 (phone)
406-628-8231 (phone)
406-628-8354 (fax)
www.WPG.com
MRT4-DC3: #35068AUS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WPG MRT411LDC3
Summary of Contents for WPG MRT411LDC3
- Page 1 INTENDED FOR USE BY SKILLED www.WPG.com PROFESSIONALS • READ AND UNDERSTAND BEFORE OPERATING MANUAL ROTATOR/TILTER, DC-VOLTAGE WITH INTELLI-GRIP® TECHNOLOGY Model numbers: MRT411LDC3 (shown), MRT49DC3, MRT4HV11DC3 Record serial number in blank space above (to locate, see serial Rev 4.0/7-20 MRT4-DC3: #35068AUS label on the product).
- Page 2 MRT4-DC3: #35068AUS Rev 4.0/7-20...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ..................3 SAFETY....................5 OPERATING FEATURES................6 ASSEMBLY....................7 ..........9 HANGE THE RAME ONFIGURATION Installing/Removing Extension Arms and Repositioning Vacuum Pads ......10 Using Secondary Rotation Stops ..................11 INTENDED USE ..................12 ................12 HARACTERISTICS ................13 PERATING NVIRONMENT ................13 ISPOSAL OF THE IFTER OPERATION..................14 ................14 EFORE... - Page 4 TABLE OF CONTENTS ....................28 ESTING Lifter/Load Compatibility Test...................28 Operational Tests ......................29 Vacuum Test........................29 Rated Load Test.........................30 MAINTENANCE ..................31 ...............31 ACUUM AINTENANCE Pad-to-Load Friction Coefficient ..................31 Pad Inspection ........................31 Pad Cleaning ........................32 12-V ...............33 ATTERY ECHARGE ..........34 OTIFICATION UZZER ATTERY EPLACEMENT ®...
-
Page 5: Specifications
Compliant with AS 4991. Note: Each circuit of the Dual Vacuum System complies with the capacity Design Standard requirements of this Standard. 1..Available with other rubber compounds for special purposes (see www.wpg.com). 2..The illustrations under “T ” on page 9 show the Pad Spread for all approved MRT411LDC(3) pad frame configurations. - Page 6 SPECIFICATIONS Note: A standard MRT411LDC3 is shown. MRT4-DC3: #35068AUS Rev 4.0/7-20...
-
Page 7: Safety
SAFETY Wear personal protective Make sure the contact surfaces of equipment that is appropriate for the load and vacuum pads are clean the load material. Follow trade before attaching the lifter (see association guidelines. “MAINTENANCE”). Do not remove or obscure safety Position the vacuum pads correctly labels. -
Page 8: Operating Features
LCD SCREEN with BATTERY GAUGE 16 VACUUM GAUGES Not shown: EXTENSION ARMS Note: A standard MRT411LDC3 is shown. Although some of the following photos do not show this specific lifter, they all illustrate how this kind of lifter functions. MRT4-DC3: #35068AUS... -
Page 9: Assembly
ASSEMBLY Remove all lifter restraints and save them with the shipping container for future use. 2) Suspend the lifter from appropriate hoisting equipment: 2.1) Select a crane and/or hoist rated for the Maximum Load Capacity plus the Lifter Weight. Note: Any lifter use must comply with all statutory or regulatory standards for hoisting equipment in your region. - Page 10 ASSEMBLY 2.4) Use the hoisting equipment to remove the lifter from the shipping container. Avoid damaging the vacuum pads. Connect the electrical connectors (figs. 3A-B and figs. 3C-D). If the lifter has a notification buzzer, install the 9- volt battery as directed in “N OTIFICATION UZZER ”...
-
Page 11: T O Change The Pad Frame Configuration
ASSEMBLY HANGE THE RAME ONFIGURATION Rev 4.0/7-20 MRT4-DC3: #35068AUS... -
Page 12: Installing/Removing Extension Arms And Repositioning Vacuum Pads
ASSEMBLY Various pad frame configurations enable the lifter to match different load dimensions. The illustrations on the preceding page show all approved configurations. Dimensions show Pad Spread for a standard MRT411LDC(3) lifter (see “SPECIFICATIONS” on page 3 for other models). Caution: If the lifter is equipped with a dual vacuum system, position the vacuum pads for the 2 circuits (marked “1”... -
Page 13: Using Secondary Rotation Stops
ASSEMBLY Using Secondary Rotation Stops Align the secondary rotation stops for correct use of the pad frame in long, narrow configurations. Rev 4.0/7-20 MRT4-DC3: #35068AUS... -
Page 14: Intended Use
2..A “single piece” of material includes curtainwall assemblies, unitized glazing systems and similar construction units. 3..Vacuum pads made from a heat-resistant rubber compound can enable you to lift loads with higher surface temperatures. Contact WPG or an authorized dealer for more information. -
Page 15: Operating Environment
1..Although lifter use may be possible at higher elevation, lifting capacity is reduced whenever the lifter is unable to attain vacuum in the green range on the vacuum gauge. Contact WPG for more information. 2..Special provisions may allow the lifter to operate outside the specified temperature range. Contact WPG for more information. Rev 4.0/7-20... -
Page 16: Operation
OPERATION EFORE SING THE IFTER Determine whether the vacuum lifter is capable of each intended task (see “SPECIFICATIONS” on page 3 and “INTENDED USE” on page 12). Then complete the following preparations: Taking Safety Precautions • Be trained in all industry and regulatory Read all directions and safety standards for lifter operation in your region. -
Page 17: Performing Inspections And Tests
OPERATION Performing Inspections and Tests • Follow the “I ” on page 27 and “T ” on page 28. NSPECTION CHEDULE ESTING • Service the 2 air filters whenever a bowl contains Examine air filters regularly liquid or other contaminates, or an element and service when needed. -
Page 18: T O Attach The Pads To A Load
OPERATION TTACH THE ADS TO A Make sure the contact surfaces of the load and vacuum pads are clean (see “Pad Cleaning” on page 32). Positioning the Lifter on the Load Center the pad frame on the load (fig. 1A). Make sure all vacuum pads will fit on the load and will be loaded evenly (fig. -
Page 19: Powering Up The Lifter
OPERATION Powering up the Lifter Press the lifter's power button ( — fig. 1A). The vacuum pump will run for a few seconds, ® as a normal function of the Intelli-Grip self- diagnostics. The lifter automatically tests the 9-volt battery for the notification buzzer each time the lifter is powered up. -
Page 20: Reading The Vacuum Gauges
1..The gauge face colors do not correspond with the circuit colors. 2..If the lifter is used above the maximum Operating Elevation (see “SPECIFICATIONS” on page 3), it may not be able to maintain sufficient vacuum for lifting. Contact WPG for more information. MRT4-DC3: #35068AUS... -
Page 21: Interpreting The Lift Light
OPERATION IFT AND OVE THE Lift bar must be vertical to lift load. Interpreting the Lift Light When the vacuum lifter is ready to lift the Never lift load unless Maximum Load Capacity, the vacuum lift lift light is illuminated, light turns on automatically and the vacuum because premature lifting pump turns off temporarily, to conserve battery... -
Page 22: Controlling The Lifter And Load
OPERATION 2) Stop using the lifter until the cause of the vacuum loss can be identified: Conduct the “Pad Inspection” on page 31 and perform the “Vacuum Test” on page 29. 3) Correct any faults before resuming normal operation of the lifter. Controlling the Lifter and Load When the lifter is ready, use the hoisting equipment to raise the lifter and load as... -
Page 23: T O Rotate The Load
OPERATION OTATE THE Make sure load is positioned correctly on lifter (as previously directed). Never disengage rotation and tilt latches at the same time, because this could result in load damage or personal injury. Make sure the load has enough clearance to rotate without contacting anyone or anything. -
Page 24: T O Tilt The Load
OPERATION ILT THE Make sure load is positioned correctly on lifter (as previously directed). Never disengage rotation and tilt latches at the same time, because this could result in load damage or personal injury. Make sure the load has enough clearance to tilt without contacting anyone or anything. - Page 25 OPERATION A load with overhang may force you to release the control handle as the load approaches the flat position. In this case, use hand cups (circled in fig. 1A) or other appropriate means to control the load. Rev 4.0/7-20 MRT4-DC3: #35068AUS...
-
Page 26: T O Release The Pads From The Load
OPERATION ELEASE THE ADS FROM THE Make sure load is at rest and fully supported before releasing vacuum pads. 1) Hold the “function” button ( — fig. 1A) and the “release” button ( — fig. 1A). If the vacuum seal does not break, follow the directions on the LCD screen. -
Page 27: Fter Sing The Ifter
OPERATION FTER SING THE IFTER Press the power button ( — fig. 1A) and the “function” button ( — fig. 1A) to power down the vacuum lifter. 2) Charge the battery after each workday as needed (see “12-V ATTERY ” on page 33). ECHARGE 3) Use the hoisting equipment to lower the lifter gently onto a stable support. - Page 28 OPERATION Disconnect the electrical connectors (figs. 3A-B and figs. 3C-E) to prevent battery discharge. 4) Store the lifter in a clean, dry location. Store the battery between 32° and 70° F [0° — 21° C]. Avoid storage above 100° F [38° C]. MRT4-DC3: #35068AUS Rev 4.0/7-20...
-
Page 29: Inspections And Tests
2..The Periodic Inspection is also required whenever the lifter has been out of service for 1 year or more. Keep a written record of all Periodic Inspections. If necessary, return the lifter to WPG or an authorized dealer for repair (see “LIMITED WARRANTY” on page 40). -
Page 30: Testing
12" Hg [-41 kPa] for 5 minutes. If not, lifting this load requires additional precautions (eg, a load sling). Contact WPG for more information. 8) Lower the load after 5 minutes or before the vacuum level diminishes to 12" Hg [-41 kPa]. -
Page 31: Operational Tests
2..During this time, the LCD screen displays “WARNING: Is load attached?”, the notification buzzer chirps and the strobe light flashes. 3..For more information, search for your lifter’s Model Number on www.wpg.com and select the “Troubleshooting” link on the product page. -
Page 32: Rated Load Test
7) Prepare a written report of the test and keep it on file. 1..An equivalent simulation may also be used. Contact WPG for more information. 2..A “qualified person” has successfully demonstrated the ability to solve problems relating to the subject matter and work, either by possessing a recognized degree in an applicable field or a certificate of professional standing, or by possessing extensive knowledge, training and experience. -
Page 33: Maintenance
MAINTENANCE Notes: Refer to SERVICE MANUAL #36105 when applicable. See final section for wiring diagrams. ACUUM AINTENANCE Pad-to-Load Friction Coefficient The friction coefficient represents the lifter's ability to resist load slippage. The Maximum Load Capacity is based on a friction coefficient of 1, as determined by testing of clean, new, standard rubber vacuum pads on clean, dry, regular glass. -
Page 34: Pad Cleaning
4) Allow the pad to dry completely before using the lifter. 1..A brush with bristles that do not harm rubber can help remove contaminates clinging to sealing edges. If these cleaning methods are not successful, contact WPG or an authorized dealer for assistance. MRT4-DC3: #35068AUS... -
Page 35: 12-Volt Battery Recharge
MAINTENANCE 12-V ATTERY ECHARGE Charge the battery whenever the battery gauge shows reduced energy. Caution: Make sure the lifter is powered down. Identify the input voltage marked on the battery Make sure power source has charger and plug it in to an appropriate power ground fault circuit interrupter. -
Page 36: Notification Buzzer Battery Replacement
MAINTENANCE OTIFICATION UZZER ATTERY EPLACEMENT 1) Power down the lifter. 2) Release the buzzer battery holder by pressing inward and sideward in the direction marked on the holder. Slide the battery tray out (fig. 3A). 4) Install a new 9-volt battery according to the polarity markings. 5) Slide the battery tray back into position. -
Page 37: Ntelli Rip Iagnostic Odes
Service tool is connected. Remove it before resuming lifter “Firmware updater detected (#)” (none) (none) use and contact WPG. Make sure lifter is used within Operating Temperatures “Module revision not 1 chirp every (see “SPECIFICATIONS” on page 3). Then power lifter (none) compatible”... - Page 38 MAINTENANCE Strobe Buzzer Code On-Screen Message Light Explanations/Directions Pattern Activity “Control head revision not 1 chirp every Incompatible version of software was installed or Intelli- (none) compatible” 2 seconds Grip® control unit has failed. Service is required. continuous Once “Power Save” mode is activated, “attach” and “Control head revision lockout”...
- Page 39 MAINTENANCE Strobe Buzzer Code On-Screen Message Light Explanations/Directions Pattern Activity Attempt was made to power down lifter while load was “WARNING! Is load attached?” fast chirp still detected. Lower load onto stable support and release load before powering down lifter. Hold “function”...
- Page 40 2 seconds system. See relevant topics in “ASSEMBLY,” “OPERATION” “INSPECTIONS AND TESTS”, and “MAINTENANCE”. In case of high elevation, contact WPG for directions. Once “Power Save” mode is activated, “attach” and “release” functions are prevented due to a vacuum sensor V040 “Lockout (vacuum sensor error)”...
-
Page 41: Replacement Parts
Shoulder Bolt ‒ Socket Head ‒ 5/16" x 1/2" x 1/4-20 Thread (for mounting pads) *Length as required; vacuum hose is sold by the foot (approx 30.5 cm). See SERVICE MANUAL #36105 for additional parts. ERVICE ONLY WITH IDENTICAL REPLACEMENT PARTS WPG.COM AVAILABLE AT OR THROUGH AN AUTHORIZED DEALER Rev 4.0/7-20... -
Page 42: Limited Warranty
Contact the WPG Technical Service Department. When factory service is required, ship the complete product – prepaid – along with your name, address and phone number to the street address listed at the bottom of this page. WPG may be reached by phone or fax numbers listed below. - Page 43 MRT4-DC3: #35068AUS Rev 4.0/7-20...
